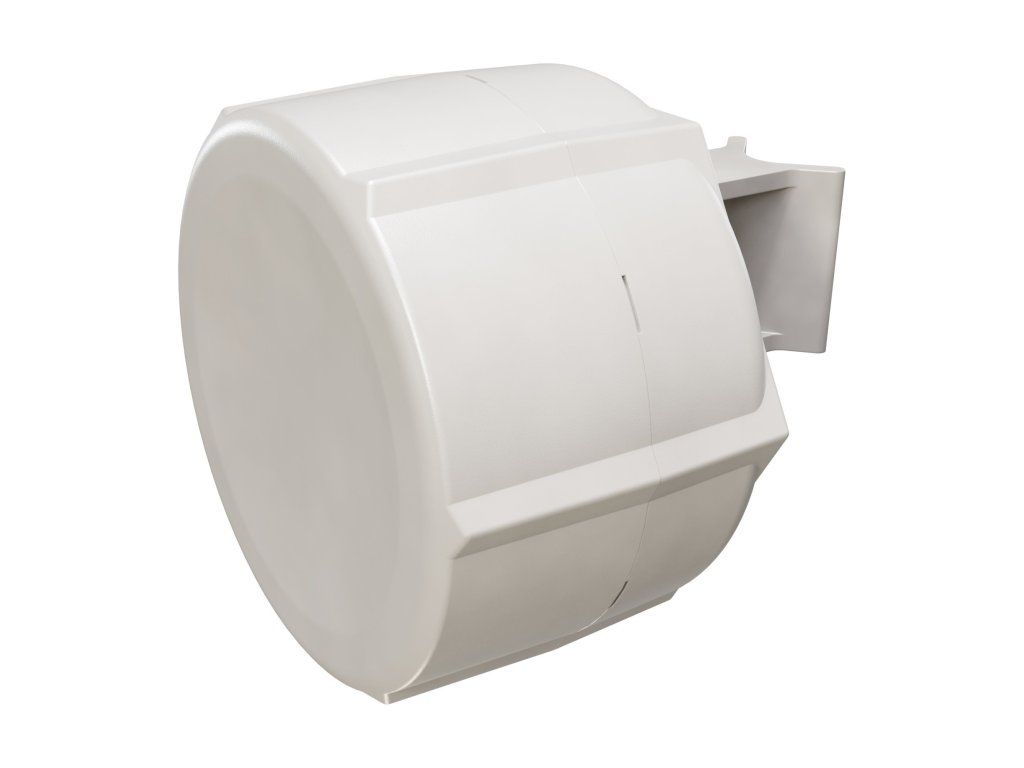

MikroTik RouterBOARD SXTR&FG621-EA - FROM THE SHOW

Product detailed description

This Mikrotik products are new, unused, only unpacked and tested, FROM SHOW. This is a fully functional product, sold with a full 24 month warranty. It is lightly scratched by handling and normal use. Sold complete in original packaging.

The SXT LTE6 kit comes bundled with the new low-cost LTE6 modem FG621-EA, which helps bring the price of the device down. The LTE6 modem achieves download speeds of up to 300 Mbps and upload speeds of up to 50 Mbps and features 2 micro SIM slots for backup connectivity in the event of a single carrier outage.

The perfect choice for remote locations that are covered by a mobile network. Thanks to the professional LTE chip and built-in high-gain antenna, the device can provide connectivity for your home even where mobile phones have weak and insufficient signal.

The unit has 2 LAN ports with PoE-in on LAN1 and PoE-out on LAN2 allowing you to connect and power other devices to extend your network or security camera. The unit comes with a 24V power supply, but supports power in the 12V-57V range and is compatible with 802.3af/at active power. The output voltage on LAN2 is the same as the input voltage.

Key Features
- Lower price thanks to new LTE6 modem
- B28, 700 MHz band support
- (2) LAN port
- PoE-in and PoE-out


Contents of the package
- Facilities
- Power adapter 24V 1,2A
- PoE injector
- Metal tightening strap
- Plastic holder


Technical parameters


Wireless features
Elevation angle (-6dB) [°]: 60
Beam angle in azimuth plane (-6dB) [°]: 60
Antenna type: built-in
Number of built-in antennas: 2
Antenna gain [dBi]: 9
Integrated 4G/LTE radio part: yes
Supported 4G/LTE channels: (1) 2100 MHz, (3) 1800 MHz, (7) 2600 MHz, (8) 900 MHz, (20) 800 MHz, (38) 2600 MHz, (40) 2300 MHz, (5) 850 MHz, (41) 2500 MHz, (28) 700 MHz
Connectors and interfaces
LAN speed: (2) 10/100Mbps
SIM card slot: yes
Number of SIM slots: 2


Power
Power over PoE: 802.3af, 802.3at, 12 .. 57V DC
Power Type:PoE
PoE types: PoE-Out + PoE-In
Number of PoE Out ports: 1
Max. power consumption [W]: 22


Physical characteristics
Design: outdoor
Reset buttons
Operating temperature [°C]: -40 to 60
Width [mm]: 140
Height [mm]: 140
Depth [mm]: 56


Hardware
CPU: QCA9531
CPU frequency [MHz]: 650
Number of CPU cores: 1
Internal storage [MB]: 16
RAM [MB]: 64


Software
Operating mode: 3G/4G Router
Operating system: RouterOS - L3
Default username and password: admin / -
