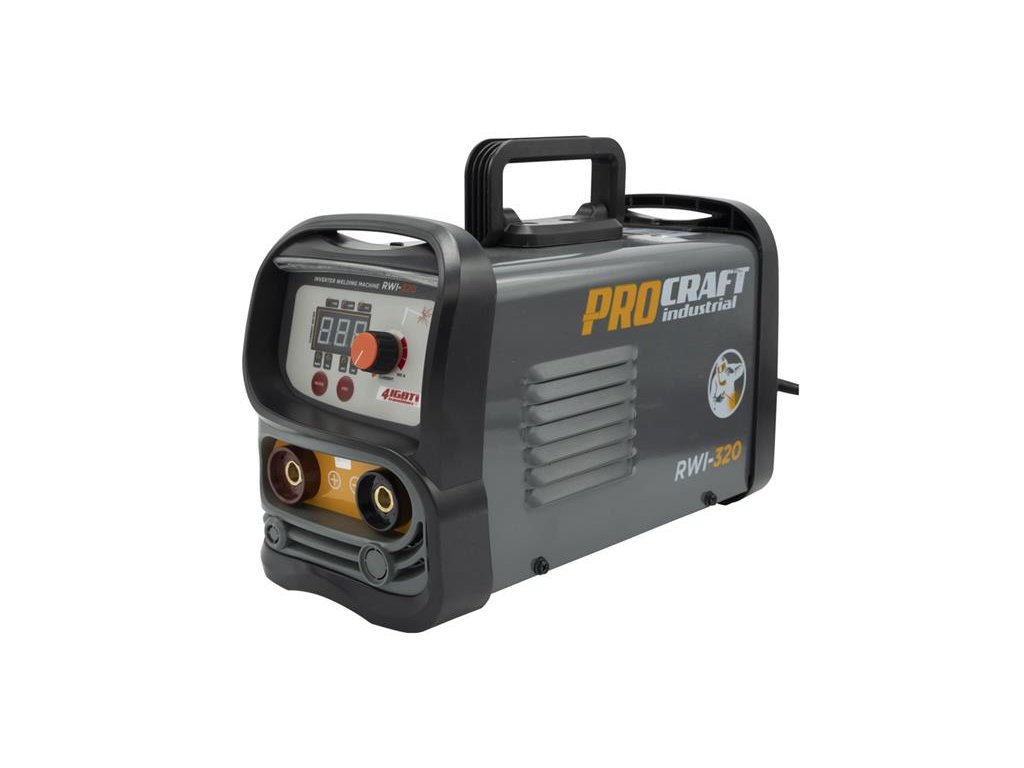

Welding inverter PROCRAFT RWI-320

Product detailed description

The Procraft RWI-320 welding inverter is designed for manual MMA welding. IGBT power transistors guarantee long trouble-free operation. Welding current control in the range of 20-160 A allows setting optimal parameters when working with different metals. Welding electrodes with a diameter of 1.6 to 4.0 mm can be used. The arc force, anti stick, hot start function guarantee fast and easy welding. The LCD display shows the current welding current. The welding shield, cable with electrode holder, cable with grounding pliers and wire brush combined with slag hammer are included.

Technical parameters:

Voltage , V: 220-240
Frequency , Hz: 50
Weight , kg: 4,8
Current control range (A): 20-160 A
Duty cycle at maximum current (%): 40% at 40℃
Power input (kW): 5,3
Electrode diameter (mm): Φ1.6-4.0 mm
Degree of protection: IP21S
Efficiency (%): 80 %
Max. current (A): 300 A
Welding torch cable length, m: 2.2
Maximum electrode holder current (A): 200 A
Electrode holder cable length: 2.8
40% load capacity: 160A/26.4V
Load capacity 60%: 113A/24.5V
100% load capacity: 87A/23.5V
