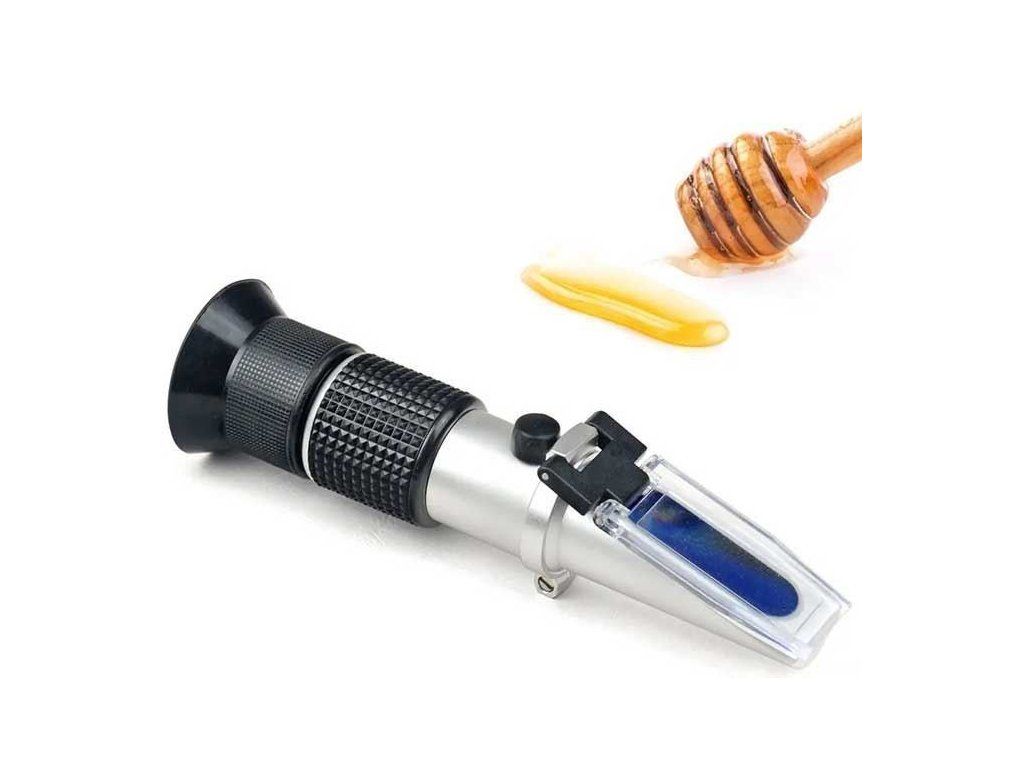

ATC optical refractometer for honey measurement

Product detailed description

The refractometer with Brix/Be/Water scale is designed primarily for measuring honey properties (sugar content, water content, density).

Instructions for use:

Measuring with the refractometer is very simple, it is enough to drop a drop of the substance to be measured on the slanted optical prism of the instrument, to tilt the cap of the prism (the substance spreads out), to look against the light into the eyepiece of the instrument, or to focus it, and on the appropriate scale in the field of view the value of the sugar content, water content and density of the parts can be read immediately.

Technical parameters:

Scale range for measuring sugar content: 58% to 90% Brix, 0.5% resolution
Scale range for measuring water content in honey: 12% to 27%, 0.5% resolution
Scale range for honey density measurement: 38° to 43° Bé resolution 0.25° Bé
Dimensions: 150×30/40mm
Weight: 95g (230g incl. packaging)

Contents of the package:

1pc refractometer
1pc plastic case with foam lining
1pc pipette for sample collection
1pcs screwdriver for calibration of the instrument
1pc antistatic cloth for cleaning the optical prism
1pc EN instructions for use
