Cable tester REBEL RB-806R

Product detailed description

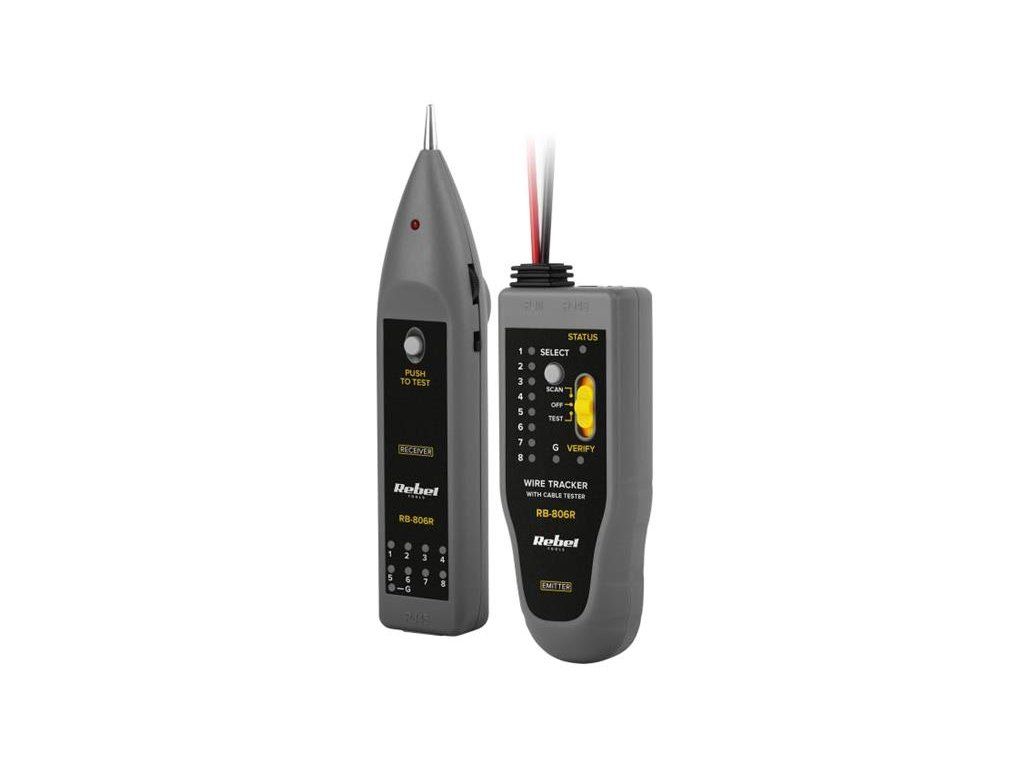

Cable tester REBEL RB-806R
Telephone line tester (wire pair finder) REBEL RB-806R
The REBEL RB-806R telephone line tester is a versatile tool that can be used in both professional and home applications. Its advanced features allow for accurate wire location, testing of telephone and network cables and checking wire clearance, making it an indispensable tool in the work of telecommunications technicians and electricians.

Function of the device
The RB-806R allows you to locate the required cables, which is extremely useful when installing and maintaining cable systems. The tester also offers a DC voltage indicator that warns of dangerous voltages in the conductors under test. The device allows for accurate testing of telephone and network cables as well as checking the continuity of the wires, which aids in the quick diagnosis of problems.

Main features
The tester is equipped with two crocodile connectors and an RJ11 connector that allows easy connection to different types of cables. The built-in speaker and receiver work light increase the comfort of work, especially in poorly lit places. In addition, a low battery indicator ensures that you are never surprised by a sudden discharge of your device.

Complete set
The tester comes with all the necessary accessories: transmitter, receiver, headphones and carrying case for easy storage and transport. The included instruction manual lets you quickly get familiar with the device's functions so you can start working right away.

Endurance and mobility
The RB-806R offers a maximum transmission distance of up to 3 km, making it extremely efficient in large installations. Both the transmitter and receiver are powered by 9V batteries and are lightweight and compact for easy transport and use. The transmitter weighs only 123g and the receiver 91g while maintaining ergonomic dimensions.

Locating the required wires
DC voltage indicator
Telephone line cable test
Test network cables
Wire continuity test

Technical parameters:

Two crocodile connectors
rJ11 connector
Speaker
Receiver working light
Low battery indicator
Maximum transmission distance: 3 km
Maximum transmitter operating current: <9 mA
Maximum receiver operating current: <28 mA
Transmitter power supply: 9V battery
Receiver power supply: 9V battery
Transmitter dimensions: 125 x 47 x 25 mm
Transmitter weight: 123 g
Receiver dimensions: 172 x 36 x 25 mm
Receiver weight: 91 g

Included: transmitter, receiver, headphones, case, user manual
