Central locking system T221

Product detailed description

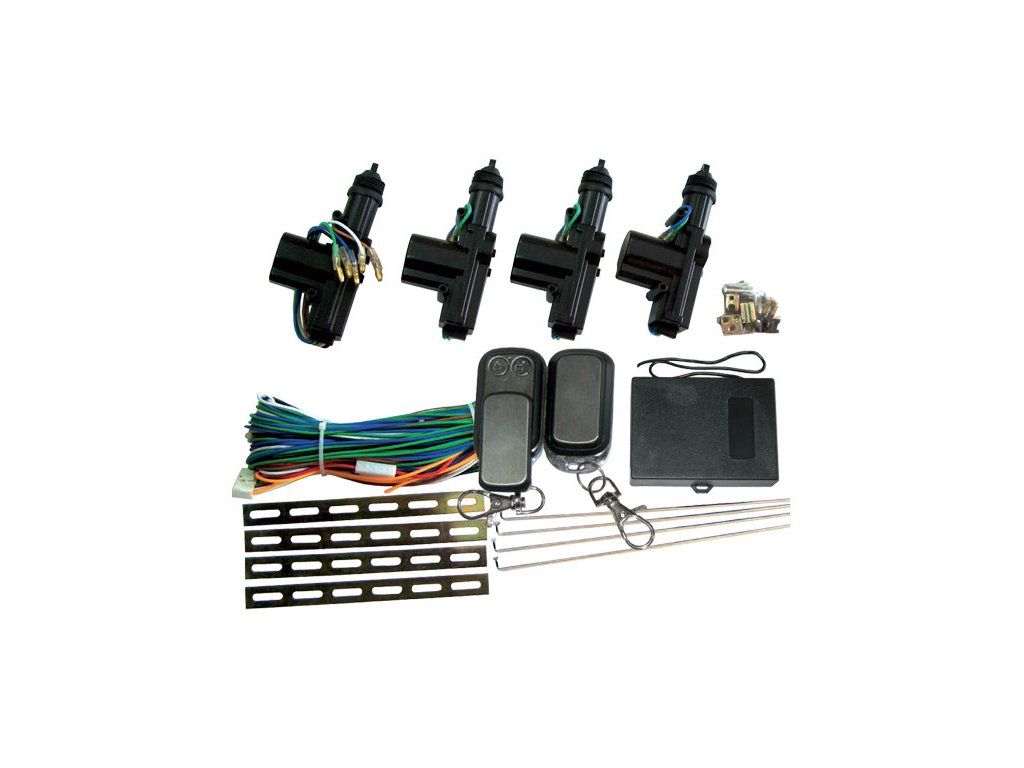

Central locking system LECHPOL T221
Universal central locking system for 4 doors with remote control.

Motorbikes:
- 1x 5-core
- 3x 2-core
- motor force 2,5 kg
- motorbike swivel head
- rod stroke 18 mm
- motor socket connector
- lock/unlock time: 0.5 - 0.6 sec

Remote control:
- 2 remote controls
- floating code
- transmit power consumption <8 mA
- standby power consumption <1μA
- working temperature DO 0°-60°C

Technical parameters:
- working temperature of electronics -20°-80°C
- power supply 10 - 14 V
- quiescent electronics consumption <20 mA

Other material in the package:
- gripping material
- 4x tie rods
- control unit
- cabling
