Endoscope UNI-T UT667

Product detailed description

We offer a 3-year warranty on this product.

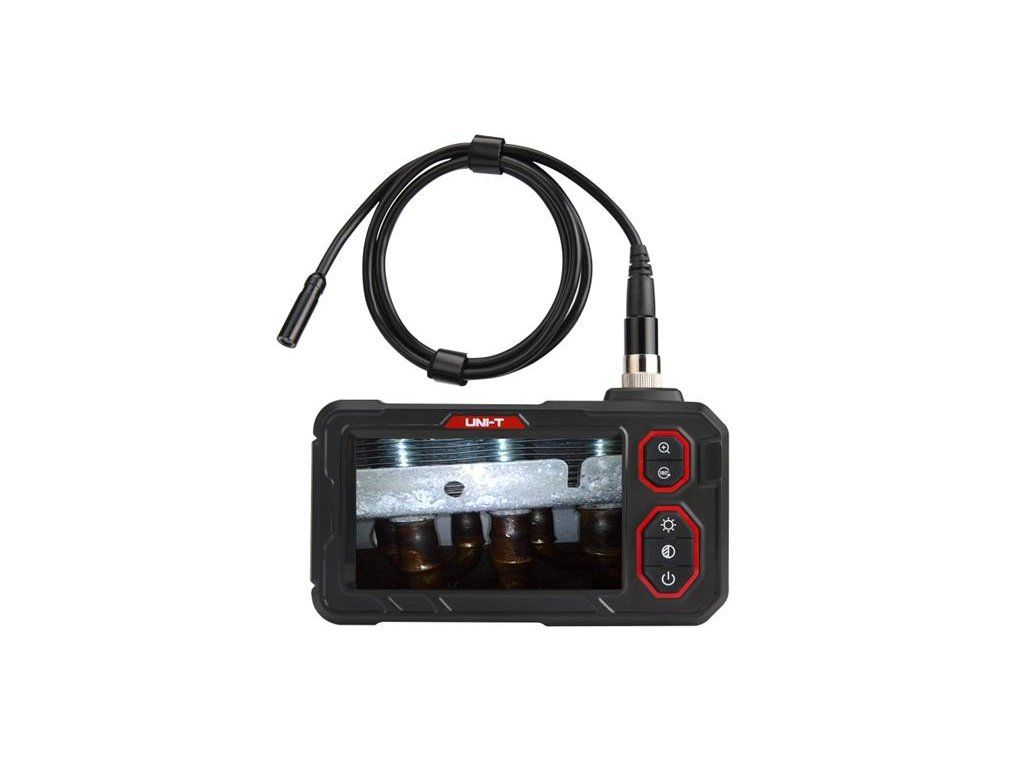

UNI-T UT667 handheld industrial boroscope with one lens.
The UT667 Series Large Format Industrial Endoscope is professionally designed and manufactured to meet market demands for complex environments that are inaccessible to the human eye. It is used to inspect engines, pipes, vents, cavities in building walls, drain pipes and other hard-to-reach places. The camera probe is mounted on the end of a 1 metre long mouldable cable, and is fitted with LED lighting, the flexible serpentine tube can be bent to the desired shape. The user-friendly user interface interface allows for simple and clear operation and ensures easy communication. The probe is IP67 rated and can be submerged in water. The UT667 is an indispensable tool in the automotive and mechanical engineering industry, service stations, workshops, or construction.


Product Parameters :

- certification:CE, RoHS
- display: 4.3″ IPS LCD
- 8 LEDs with adjustable brightness
- battery : Li-ion
- iP67 camera
- image rotation
- flexible cable length: 1 m


Technical parameters:

- display size: 4.3″
- system language: english
- camera resolution: 1280 x 720 pixels
- basic functions: screen rotation, black and white image, color conversion, zoom in and out
- flexible cable length: 1 m

- probe diameter with lens: 8 mm
- light sensor chip: CMOS
- lens angle of view (FOV) : 70°
- lens focus (DOF): 20mm to 100mm
- light intensity adjustment: 4 levels + off
- field of view illumination: 8 LEDs
- lens pixels: 300 K
- probe housing resistance: IP67

- power supply: battery 3.7 V / 2000 mAh
- battery life: 5 h

Working conditions:
- lens temperature 0 °C to 80 °C
- working temperature: 0 to 45 °C
- humidity: < 90%RH

- dimensions of the instrument: 162 mm x 82 mm x 36 mm
- product weight: 190 g


Contents of the package:

- endoscopic camera UT667: 1pc
- detachable probe with lens: 1pc
- hook, side mirror, magnet, fixed clasp
- instructions for use

- standard quantity per carton: 20 pcs

MANUFACTURER: UNI-TREND
