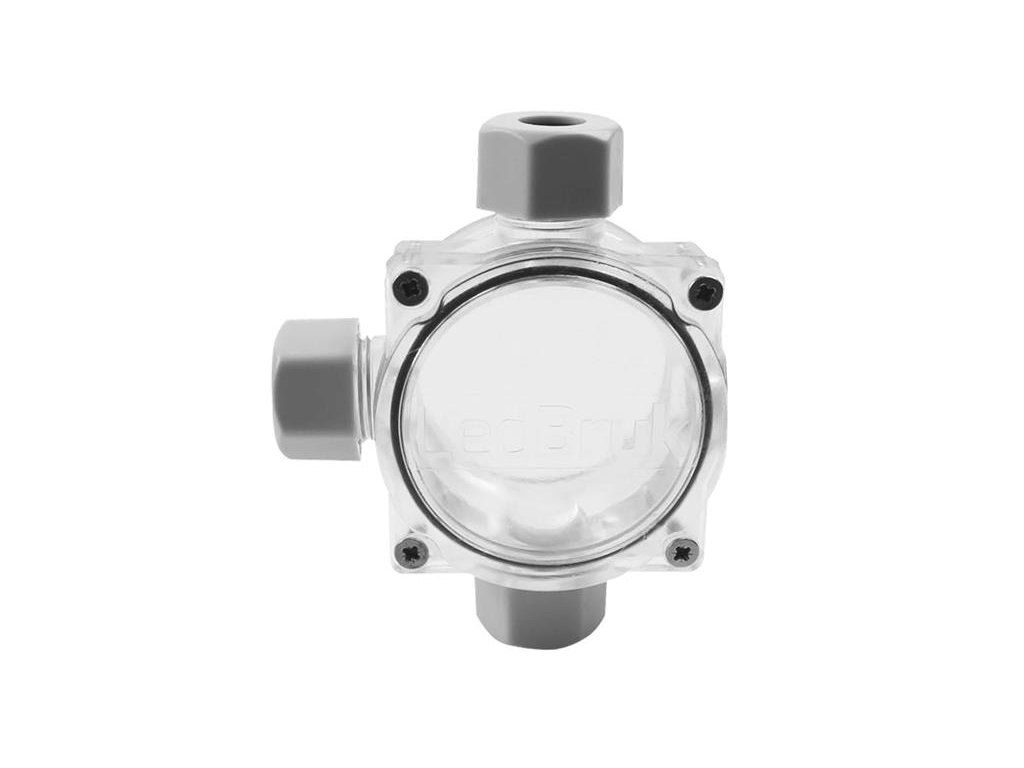

Hermetic box MUFA-3
Code: TI_06432181Product detailed description
Hermetic box for 3xPG11 cable connection
Technical parameters:
- model:Box Installation Case (Surface/Ground) IP68
- dimensions: width: 90 mm, length: 74 mm, height 37 mm
- package type: 3xPG11 (11 mm)
- purpose: Wiring, ground installations, surface installation up to 230V; (Replacement for 3M 316IR connectors)
- waterproof: IP68 (certified by the Zeto Institute Katowice)
- recommended cables: cable cross-section with outer sheath: min. 4 mm / max. 9 mm
- installation: possibility of quick and durable connection of 3 cables
- temperature: from -30°C to 60°C
Additional parameters
| Category: | Cable connectors |
|---|---|
| EAN: | 5903003126041 |
| EAN: | 5903003126041 |
