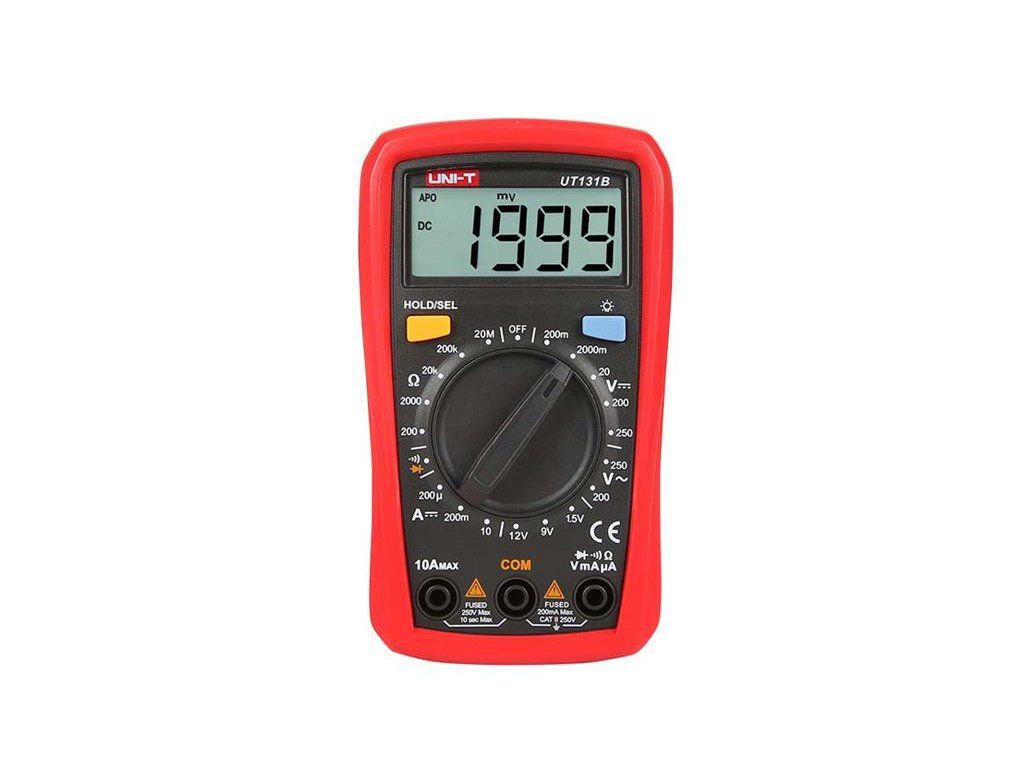

Multimeter UNI-T UT131B

Product detailed description

Multimeter UNI-T UT131B
We offer a 3-year warranty on this product.

The UNI-T UT131 generation of multimeters offers a higher standard of measurement in the affordable digital multimeter category. The innovative and industrial design with a protective case ensures the multimeter is shock and drop resistant from up to two meters. The new LCD display layout is clearer and more practical for all users, plus the display has a backlight option. UT131 series multimeters guarantee safe handling and measurements and are classified as CAT II safety category (double insulated appliances) and are designed for measurements in circuits up to 250V/ AC or DC. The display display range is ± 1.999. The fusing of the current ranges is performed by fast tubular fuses (10A range by 10A/250V fuse; mA/µA range by 200mA fuse). The power supply of the multimeter is carried out by two AAA 1,5V alkaline batteries.

The UT131B model in the UT131 series features manual selection of the measurement range within a given measurement Vst, Vss, MVSS/st, resistance, buzzer, semiconductor, μAss/st, mA ss/st, A ss/st, plus 1.5V; 9V; 12V battery testing with load.


Product Parameters :

- display range ± 1.999
- measures parameters Vst, Vss, mVss/st, μAss/st, mAss/st, Ass/st, resistance, capacitance, throughput (buzzer), semiconductor transitions (diodes)
- dC voltage measurement : 200 mV to 250 V
- aC voltage measurement : 200 mV to 250 V
- dC current measurement : 200.0 µA to 10.00 A
- resistance measurement : 200.0 Ω to 200.0 MΩ
- test batteries 1.5V; 9V; 12V on load resistors 30Ω; 900Ω; 60Ω
- cAT II safety category (double insulated) up to 250V AC/DC
- power supply by alkaline batteries 2x AAA 1,5V
- backlit display
- wiring continuity test (buzzer)
- diode test
- reverse polarity detection
- data hold function
- low battery indication
- automatic shutdown after 15 min. of inactivity
- measuring cables included


Technical parameters :

- DC voltage measurement (input impedance approx. 10MΩ) :
    (Range/Resolution/Accuracy)
      200 mV / 0.1 mV / ± 0.7% + 3
2000 mV / 1 mV / ± 0.5% + 2
    20.00 V / 0.01 V / ± 0.7% + 3
      200.0 V / 0.1 V / ± 0.7% + 3
     250 V / 1 V / ± 0.7% + 3

- AC voltage measurement (input impedance approx. 10MΩ, 40Hz to 400Hz sinusoidal) :
       (Range/Resolution/Accuracy)
   200.0 mV / 0.1 mV / ± 1.0% + 2
2.000V / 0.001 V / ± 0.7% + 3
20.00 V / 0.01 V / ± 1.0% + 2
        200.00 V / 0.1 V / ± 1.2% + 3
           250 V / 1 V / ± 1.2% + 3


- DC current measurement :
      (range/resolution/accuracy)
    200.0 µA / 0.1 µA / ± 1.0% + 2
     2000 µA / 1 µA / ± 1.0% + 2
   20.00 mA / 0.01 mA / ± 1.0% + 2
   200.0 mA / 0.1 mA / ± 1.0% + 2
        2.000 A / 0.001 A / ± 1.2% + 5
       10.00 A / 0.01 A / ± 1.2% + 5


- Resistor resistance measurement :
           (Range / Resolution / Accuracy)
            200.0 Ω / 0.1 Ω / ± 1.0% + 2
              2000 Ω / 1 Ω / ± 0.8% + 2
       20.00 kΩ / 0.01 kΩ / ± 0.8% + 2
         200.0 kΩ / 0.1 kΩ / ± 0.8% + 2
     20.00 MΩ / 0.01 MΩ / ± 1.2% + 3
     200.0 MΩ / 0.1 MΩ / ± 5.0% + 10



- The device complies with IEC 61010-1, IEC 61010-2-030, CAT II standards
- Power: 2 x AAA 1.5 V batteries
- Dimensions (mm) : 134 x 77 x 47
- Weight : approx. 206 g (including batteries)
- Working temperature : 0 - 40°C


Contents of the package:

- measuring instrument Multimeter UNI-T UT131B
- measuring cables
- batteries 2 x AAA, 1,5V
- instructions for use Czech, Slovak and English
