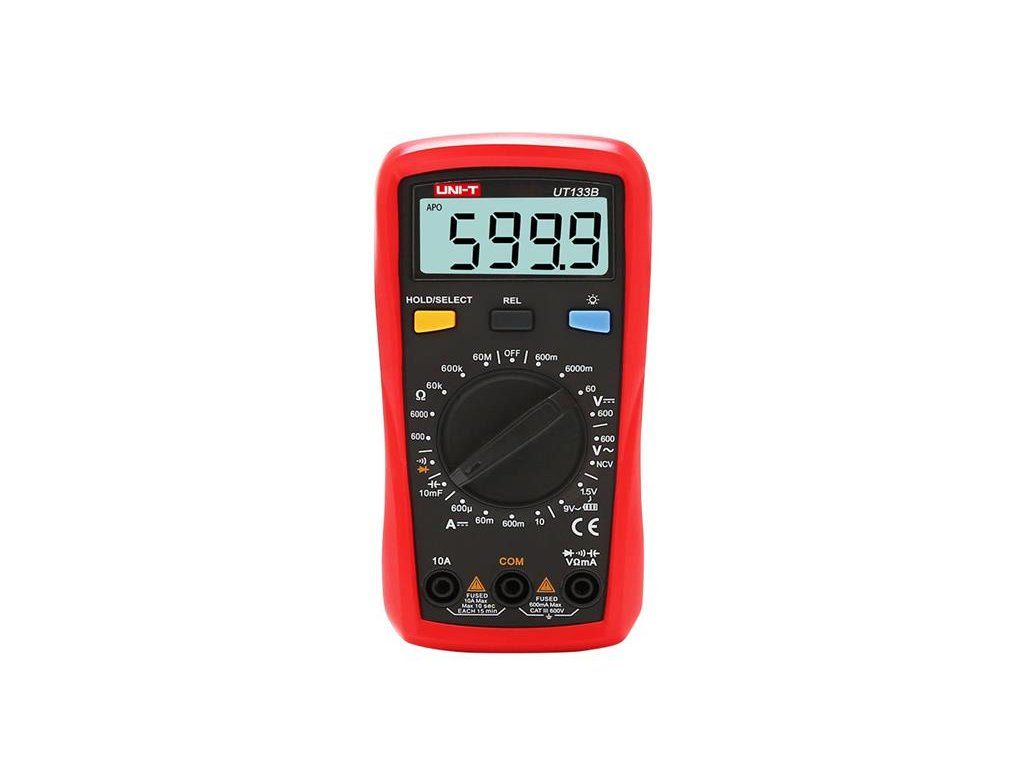

Multimeter UNI-T UT133B

Product detailed description

Multimeter UNI-T UT133B
We offer a 3-year warranty on this product.

UT133B with capacitor capacitance and NCV measurement.

The new generation of UT133 series multimeters offers a higher standard of measurement in the more affordable category of digital multimeters. The innovative and industrial design ensures the multimeter is shock and drop resistant from up to two meters. The new LCD display layout is clearer and more practical for all users, plus the display has a backlight option.

Multimeter function:

AC voltage measurement (AC) - 600 V
DC voltage measurement (DC) - 600 mV / 600 V
DC current measurement (DC) - 600 uA / 10 A
Resistance measurement - 600 Ω / 60 MOhm
Capacitor Capacitance Measurement - 9,999 nF / 9,999 mF
Line continuity test (buzzer)
diode test
battery test
NCV measurement
Reverse polarity detection
Data hold function
backlit display
Automatic shutdown when idle
Measuring cables are included in the package
Low battery indication
Overload protection, fuse protection


Technical parameters:

AC voltage measurement (range, resolution, accuracy):
600.0 V / 0.1 V / ± (1.2% + 3)

DC voltage measurement (range, resolution, accuracy):
600.0 mV / 0.1 mV / ± (0.7% + 3)
6.000 V / 6000mV // 0.001V / 1 mV // ± (0.5% + 2)
60.00 V / 0.01 V / ± (0.7% + 3)
600.0 V / 0.1 V / ± (0.7% + 3)

DC current measurement (range, resolution, accuracy):
600.0 uA / 0.1 uA / ± (1.0% + 3)
60.00 mA / 0.01 mA / ± (1.0% + 3)
600.0 mA / 0.1 mA / ± (1.0% + 3)
10.00 A / 0.01 A / ± (1.2% + 5)

Resistivity measurement (range, resolution, accuracy):
600.0 Ω / 0.1 Ω / ± (1.0% + 2)
6.000K Ω / 6000 Ω // 0.1km Ω / 1Ω // ± (0.8% + 2)
60.00 kOhm / 0.01 kOhm / ± (0.8% + 2)
600.0 kOhm / 0.1 kOhm / ± (0.8% + 2)
60.00 MOhm / 0.01 MOhm / ± (2% + 5)

Capacitor capacitance measurement (range, resolution, accuracy):
9.999 nF / 0.001 nF / at REL mode ±(4% + 10)
99.99 nF / 0.01 nF / ± (4% + 5)
999.9 nF / 0.1 nF / ± (4% + 5)
9.999 mF / 0.001 mF / ± (4% + 5)
99.99 mF / 0.01 mF / ± (4% 5)
999.9 mF / 0.1 mF / ± (4% + 5)
9.999 mF / 0.001 mF / ± (10%)


Dimensions (mm): 76,5 x 155 x 49
Power: 2 x AAA 1.5 V batteries (included)
Weight: approx. 255 g (including batteries)
Working temperature: 0 - 40 ° C
Standard accessories: instructions, measuring tips
