Multimeter UNI-T UT139A

Product detailed description

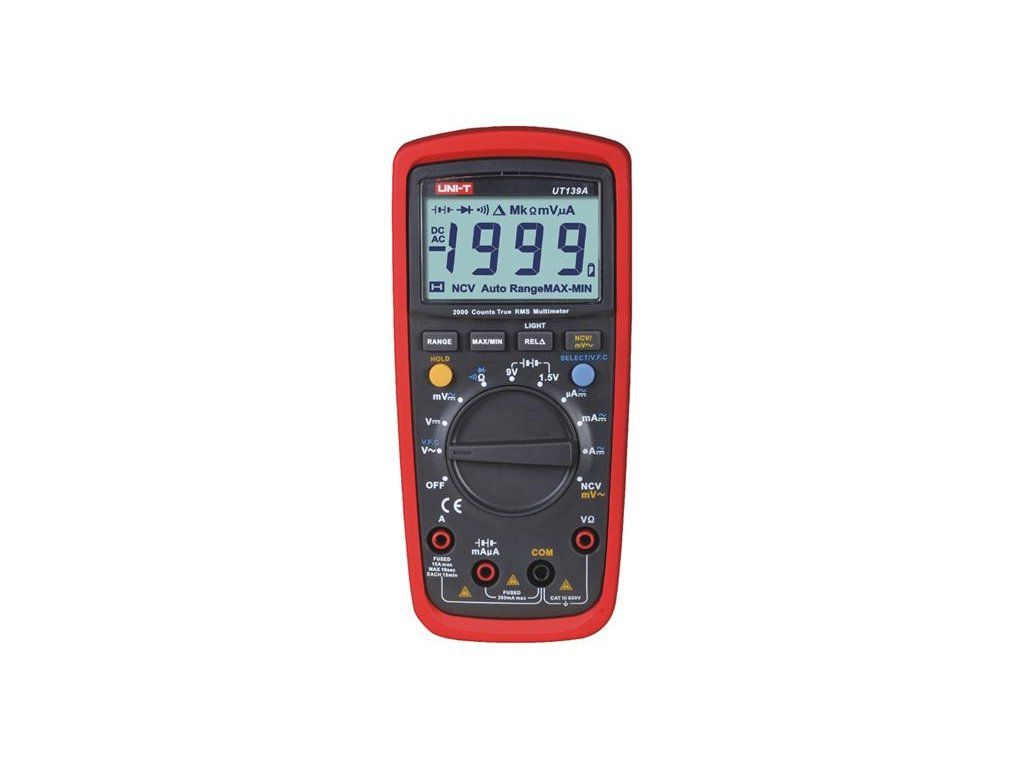

Multimeter UNI-T UT139A
We offer a 3-year warranty on this product.

The UNI-T UT139A multimeter is a new professional multimeter with True RMS classification and CAT III 600V protection, designed to meet the needs of electricians for the measurement of LV distribution networks in buildings. The innovative and industrial design with protective housing guarantees the multimeter's impact resistance. The instrument includes a number of superior functions such as low impedance voltage measurement (LoZ) (for UT139E + UT139S variant), variable frequency voltage measurement (VFC) (for UT139E + UT139S variant), non-contact voltage measurement (NCV). The large and clear LCD TN backlit display ensures a more perfect display of the measured values. The display display range is ± 1999. Refresh rate 2 to 3 times per second. Fusing of current ranges is performed by tubular fuses (10A range by FF 10A H/600V fuse (6 x 25mm); mA/uA range by FF 200mA H/600V fuse (6 x 32mm)). The power supply of the multimeter is provided by two AA 1.5 alkaline batteries. The range of measurement quantities can be selected automatically, also manually. Measurement cables with tips and batteries are included.

The UT139A is the ideal choice if you want a professionally equipped multimeter with a range of superior features that is also accurate, clear, safe and very easy to use.

Product Parameters (Multimeter Function) :

- true RMS measurement (the instrument measures the effective value of AC current and voltage)
- aC voltage measurement range ( AC 45 to 400Hz ) : 20 mV / 600 V
- aC current measurement range ( AC 45 to 400Hz ) : 200 uA / 10 A
- dC voltage measurement range ( DC ) : 20 mV / 600 V
- dC current measurement range ( DC ) : 200 uA / 10 A
- resistance measurement range : 200 Ω/60 MΩ
- test of diodes and semiconductor transitions at 2.1V
- wiring continuity test (buzzer)
- non-contact voltage measurement (NCV) without connected test leads
- automatic and manual range selection
- reverse polarity detection
- data hold function
- minimum and maximum value display
- display backlight
- automatic shutdown when idle
- low battery indication
- overload protection, fuse protection

Technical parameters:
- DC voltage measurement (input impedance according to the range of 3 to approx. 10MΩ):
       ( range / resolution / accuracy )
20.00 mV / 0.01mV / ±0.7% + 3
200.0 mV / 0.1 mV / ± 0.5 % + 2
2.000 V / 1 mV / ± 0.7 % + 3
20.00 V / 0.01 V / ± 0.7 % + 3
200.0 V / 0.1 V / ± 0.7 % + 3
600.0 V / 1 V / ± 0.7 % + 3

- AC voltage measurement ( input impedance approx. 10MΩ ) :
( range / resolution / accuracy )
20.00 mV / 0.01 mV / ± 1.0 % + 3
200.0 mV / 0.1 mV / ± 1.0 % + 3
2.000 V / 0.001 V / ± 0.8% + 3
20.00 V / 0.01 V / ± 0.8% + 3
200.0 V / 0.1 V / ± 0.8 % + 3
600 V / 1 V / ± 1.0 % + 3
VFC 200 to 600.0 V / 0.1V/1V / ± 4.0% + 3

- DC current measurement :
( range / resolution / accuracy )
200.0 μA / 0.1 μA / ± 0.7 % + 2
2000 μA / 1 μA / ± 0.7 % + 2
20.00 mA / 0.01 mA / ± 0.7 % + 2
200.0 mA / 0.1 mA / ± 0.7 % + 2
2.000 A / 0.001 A / ± 1.0 % + 3
10.00 A / 0.01 A / ± 1.0 % + 3

- AC current measurement :
( range / resolution / accuracy )
200.0 μA / 0.1 μA / ± 1.0 % + 3
2000 μA / 1 μA / ± 1.0 % + 3
20.00 mA / 0.01 mA / ± 1.0 % + 3
200.0 mA / 0.1 mA / ± 1.0 % + 3
2.000 A / 0.001 A / ± 1.2 % + 3
10.00 A / 0.01 A / ± 1.2 % + 3

- Resistance measurement :
( range / resolution / accuracy )
200.0 Ω / 0.1 Ω / ± 1.0 % + 2
2.000 kΩ / 0.001 kΩ / ± 0.8% + 2
20.00 kΩ / 0.01 kΩ / ± 0.8% + 2
200.0 kΩ / 0.1 kΩ / ± 0.8% + 2
2.000 MΩ / 0.001 MΩ / ± 1.2% + 3
20.00 MΩ / 0.01 MΩ / ± 1.5% + 5

- Display Type:LCD TN
- Display diagonal: 68 mm
- Sampling rate: 3/s
- Number of digits: 2000
- Power: 2 x AA 1.5 V batteries
- Dimensions of the instrument: 170 x 80 x 48 mm
- Drop resistance: 1 m
- Weight: approx. 354 g (including batteries)
- Working temperature: - 10 to 50 °C
- The instrument meets the standards:
      cETLus, CAT III 600V, double insulated, overload protection 600V-PTC, pollution class II
     EN 61326-1:2013; EN 61326-2-2:2013
eN 61010-1: 2010; EN 61010-2-030: 2010; EN 61010-2-033: 2012
      Conforms to UL STD .:61010-1, 61010-2-030
      Certified by CSA STD. C22.2 Nos. 61010-1, 61010-2-030, 61010-2-033

- Manufacturer
- www.uni-t.cz

Contents of the package:

- multimeter UT139B with anti-shock plastic case
- batteries 2 x AA 1.5 V
- fuse F1: 6 x 32 mm FF 200 mA H 600 V (in the instrument)
- fuse F2: 6 x 25 mm FF 10 A H 600 V (in the instrument)
- test leads with spikes (included)
- instructions for use Czech, Slovak and English
