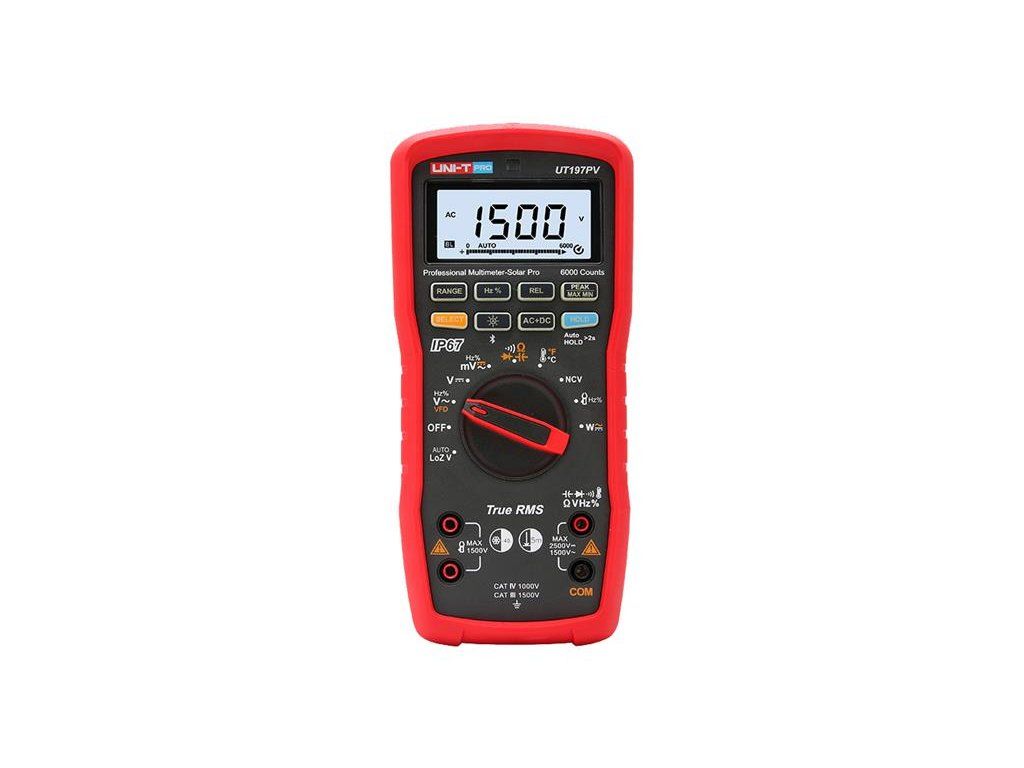

Multimeter UNI-T UT197PV

Product detailed description

We offer a 3-year warranty on this product.

The UT197PV Professional Multimeter - Solar PRO, is a rugged, high precision handheld true RMS multimeter designed for industrial use. Its key features include an IP67 rating for dust and water resistance and the ability to withstand drops from heights of up to 5 metres. This multimeter is ideal for harsh outdoor conditions (-40°C to 55°C) such as wet or sand and extreme cold. It has wide applications in power, HVAC, new energy and environmental protection etc.


Product Parameters :

- true RMS measurement with 6000 digits
- aC/DC voltage: 1000 V
- power measurement: 1500 kVA (AC) and 2500 kVA (DC)
- vFD output measurement
- external forceps: AC/DC 1000 A (optional: UT-CS07)
- iP67 protection and drop protection from 5 m
- overvoltage categories CAT IV 1000 V and CAT III 1500 V
- operating environment: -40 °C ~ 55 °C
- bluetooth app support
- certification:CE, cETLus, RoHS


Technical parameters:

DC Voltage Measurement (V): Range / Accuracy
600.0mV / ±(0.3%+5)
6,000V / ±(0,2%+5)
60,00V / ±(0,2%+5)
600,0V / ±(0,2%+5)
2500V / ±(1,0%+5)

AC Voltage Measurement (V): Range / Accuracy
600.0mV / 45Hz to 500Hz: ± (0.8%+3); 500Hz to 1kHz: ± (1.8%+3)
6,000V/45Hz to 500Hz: ±(0.8%+3); 500Hz to 1kHz: ±(1.8%+3)
60.00V/45Hz to 500Hz: ±(0.8%+3); 500Hz to 1kHz: ±(1.8%+3)
600.0V/45Hz to 500Hz: ±(0.8%+3); 500Hz to 1kHz: ±(1.8%+3)
1500V/45Hz to 500Hz: ± (0.8%+3); 500Hz to 1kHz: ± (1.8%+3)

VFD measurement (ACV) : Range / Accuracy
600.0V/45Hz to 200Hz: ±(2.0%+5)
1500V/45Hz to 200Hz: ±(2.0%+5)

Measuring Auto Loz : Range / Accuracy
600.0V/45Hz to 400Hz: ±(1.5%+5)
1500V/45Hz to 400Hz: ±(1.8%+5)

AC+DC Voltage Measurement : Range / Accuracy
600.0mV / 45Hz to 500Hz: ± (1.5%+5); 500Hz to 1kHz: ± (2.5%+5)
6,000V/45Hz to 500Hz: ±(1.5%+5); 500Hz to 1kHz: ±(2.5%+5)
60.00V/45Hz to 500Hz: ±(1.5%+5); 500Hz to 1kHz: ±(2.5%+5)
600.0V/45Hz to 500Hz: ±(1.5%+5); 500Hz to 1kHz: ±(2.5%+5)
1500V/45Hz to 500Hz: ± (1.5%+5); 500Hz to 1kHz: ± (2.5%+5)

Resistance measurement: range / accuracy
600,0Ω / ± (0,8%+5)
6,000kΩ / ± (0.5%+5)
60.00kΩ / ± (0.5%+5)
600.0kΩ / ± (0.5%+5)
6,000MΩ / ± (0.5%+5)
60.00MΩ / ± (2.5%+5)

Capacitance measurement: range/accuracy
60.00nF / ± (3.0%)
600.0nF / ± (3.0%+5)
6,000μF / ± (3.0%+5)
60.00μF / ± (3.0%+5)
600.0μF / ± (3.0%+5)
6,000mF / ± (10%+5)
60.00mF / ± (10%+5)

- continuity: 600.0Ω ±(1.0%+5)

- diode (semiconductor junction) test: 3.2 V / ± (1.0%+5)

- frequency measurement: range/accuracy
99.99Hz / ± (0.02%+5)
999.9Hz / ± (0.02%+5)
9.999kHz / ± (0.02%+5)
99.99kHz / ± (0.02%+5)
999.9kHz / ± (0.02%+5)

- inverts: 10Hz to 10KHz (10%~90%) ±(2.0%+30)

Temperature measurement: range/accuracy
-40°C to 1000°C/± (1.0%+30)
-40°F to 1832°F / ± (1.0%+60)

Current loop current measurement UT-CS07: Range / Accuracy
- external clamps (DCA) UT-CS07 (optional): 100 A (10 mV/A) and 1000 A (1 mV/A) ±(0.8% + 5)
- external clamps (ACA) UT-CS07 (optional): 45 to 400 Hz: 100 A (10 mV/A) and 1000 A (1 mV/A) ±(1.0% + 5)

AC current 100 A (10mV/A): range/accuracy
- active power: 60.00 kW / 150.0 kW (3.0% + 5)
- apparent power: 60.00 kVA / 150.0 kVA ± (2.0% + 5)
- reactive power: 60.00 kVAr / 150.0 kVAr ± (5.0% + 5)
- factor: -1 to 1

AC 1000 A (1mV/A): Range / Accuracy
- active power: 600.00 kW / 1500.0 kW (3.0% + 5)
- apparent power: 600.00 kVA / 1500.0 kVA ± (2.0% + 5)
- reactive power: 600.00 kVAr / 1500.0 kVAr ± (5.0% + 5)
- factor: -1 to 1

DC current 100 A (10mV/A): 60.00 kVA / 250.0 kVA ±(3.0%+5)
DC 1000 A (10mV/A): 60.00 kVA / 2500 kVA ±(3.0%+5)

- number of display views: 6000
- analogue bargraph: 33-segment bar display
- True RMS
- nCV non-contact AC voltage sensing
- automatic range switching
- measurement : REL. , PEAK
- mAX and MIN peak measurement
- data retention: data hold
- alarm: high voltage , high voltage OL
- low battery indication
- automatic shutdown
- multifunctional protection
- bluetooth app
- backlight: automatic backlight
- fall protection from 5 m
- degree of protection : IP67
- operating temperature: - 40 to 55 °C
- safety standard: EN/IEC 61010-1: CAT IV 1000 V, CAT III 1500 V
- pollution level: 2
- product dimensions 220 x 104 x 67 mm
- weight: approx. 600 g (including batteries)
- weight with case: approx. 835 g (including batteries)
- power supply: 3 pieces of 1.5V alkaline AA batteries
