Multimeter UNI-T UT219DS clamp-on PRO Line

Product detailed description

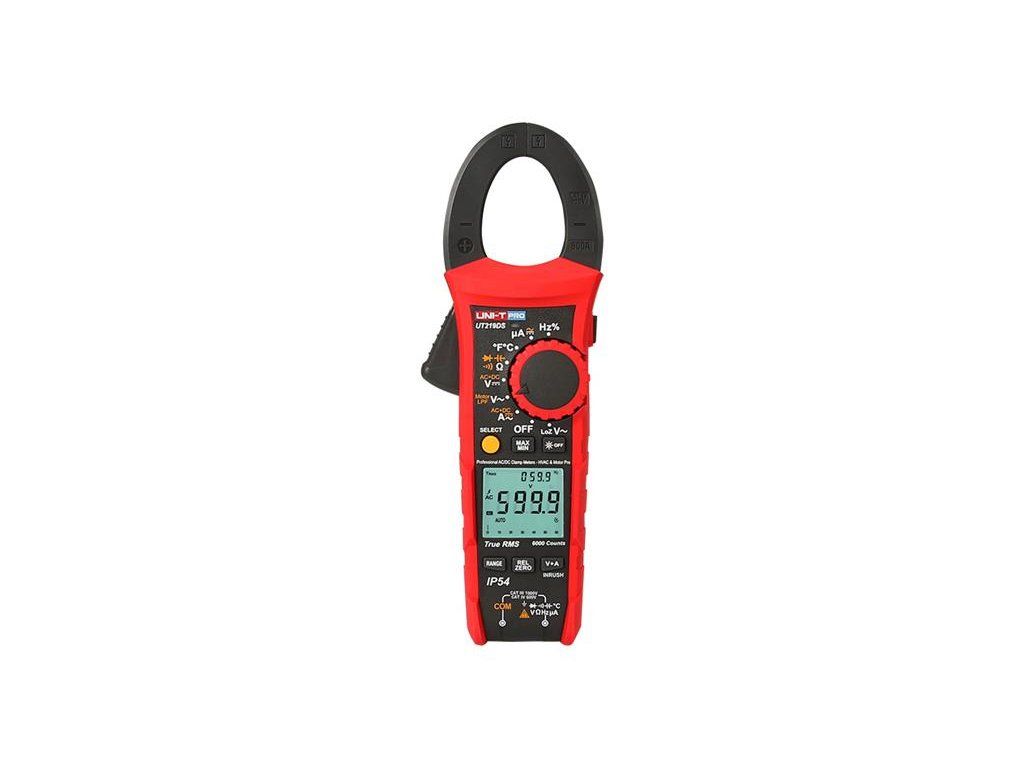

UNI-T UT219DS clamp-on multimeter PRO Line
We offer a 3-year warranty on this product.

The UT219DS clamp-on multimeter is a highly durable instrument designed for electricians, repairmen, maintenance and service technicians. It is suitable for everyday use even in the harshest conditions. The instrument can withstand a fall from 2m and provides excellent protection against water and dust thanks to its IP54 rating. Thanks to TrueRMS you can accurately measure even non-symmetrical AC voltage and current. It is suitable for measuring AC current and other quantities.The UT219M is equipped with a motor test function, allowing you to test the phase sequence of a three-phase motor.
It is manufactured in accordance with CATIV600V (TUV/GS) protection level.

Product parameters and features:

- drop resistant from 2m
- degree of protection: IP54
- automatic backlight
- max. Display: 6000
- automatic/manual range
- True RMS
- 3-phase motor sequence test
- temperature measurement
- 3V diode test
- automatic shutdown
- high impedance mode
- bargraf 31 pieces
- low battery indication
- data hold (H)
- relative value (REL)
- MAX / MIN



Technical parameters:

- AC current (A): 600A ± (1.8% + 6)
- DC current (A): 600A ± (1.8% + 6)
- AC voltage (V): 1000V ± (1.0% + 6)
- DC voltage (V): 1000V ± (0.6%+3)
- LoZ ACV: 600.0V ± (2.5% + 6)
- resistance (Ω): 60MΩ ± (1.0% + 3)
- capacitance: 60.00nF - 60.00mF ± (4.0% + 7)
- frequency: 60Hz - 40MHz ±(0.1%+6)
- varies: 0.1% - 99.9% ± (2.6% + 7)
- temperature measurement: -40~1000°C ±(2%+5°C)
- input impedance: ≥10MΩ
- 3-phase test: 600V
- low pass function 1kHz, 3dB attenuation
- simultaneous measurement of voltage and current
- power supply: AAA 1.5V battery × 3
- pliers dimensions: 33mm
- lCD dimensions: 35mm × 31mm
- weight: 310g
- dimensions: 235mm × 83mm × 47mm


Accessories:

- measuring tips with cables
- k-type thermocouple
- batteries
- case
- instructions
