Multimeter UNI-T UT256A

Product detailed description

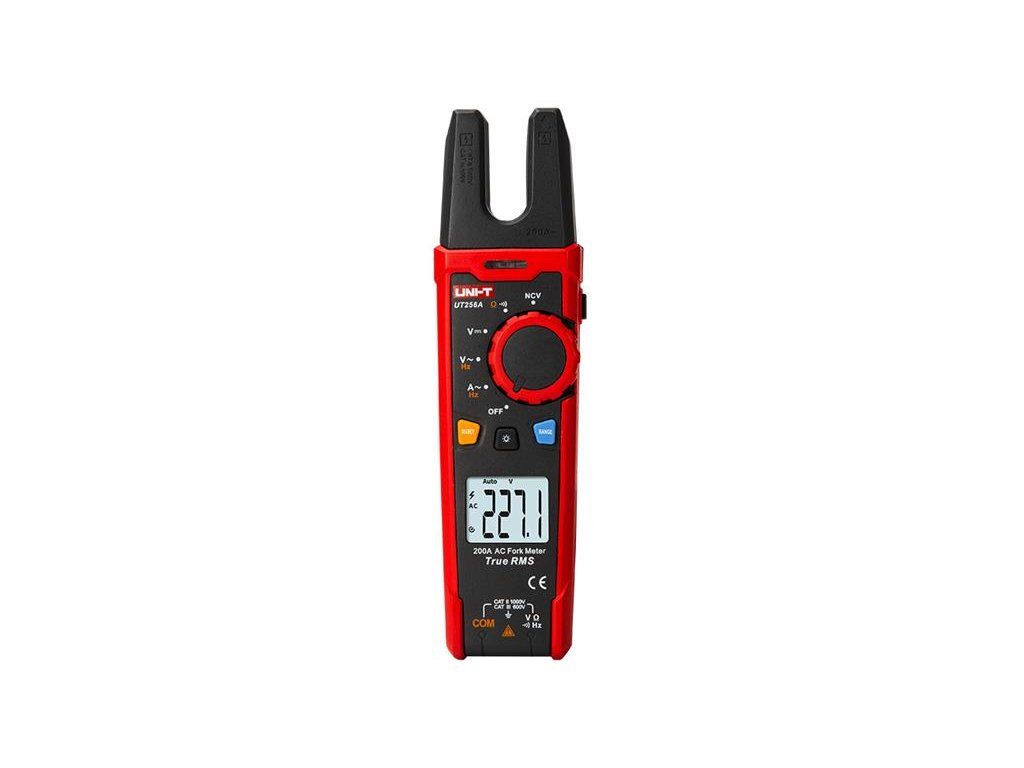

Multimeter UNI-T UT256A
We offer a 3-year warranty on this product. The UT256A digital multimeter is a safe and reliable fork-type meter that can replace a clamp-on multimeter. It has no mechanically moving parts and hence its resistance to mechanical failure. The instrument has a display with a maximum display value of 6000. By means of a Hall probe fork, it allows AC current measurements up to 200A. It can further measure AC and DC voltages, resistance, conductor continuity using the included measurement cables, has a built-in non-contact voltage (NCV) sensor and a built-in light fixture. It has data suspend functions, automatic and manual range selection, backlit display, frequency measurement, low battery indication. The maximum wire diameter that can be inserted into the fork is 15mm. Indication of exceeding ranges by red LED, for NCV by acoustic signal. The advantage is the resistance to falling from a height of up to 2m. Powered by two 1.5 V AA batteries. These features make the UT256A multimeter a practical instrument for the everyday work of power electricians.


Product Parameters :

- measurement of AC current up to 200 A, and its frequency in the range of 50 Hz to 60 Hz
- measurement of AC voltage up to 1000 V, and its frequency in the range of 10 Hz to 10 kHz
- dC voltage measurement up to 1000 V
- resistance measurement up to 60 MOhm
- continuity check wiring
- automatic polarity display
- choice of automatic or manual range switching
- built-in luminaire
- True RMS
- the maximum display value is 6000
- backlit LCD display measuring 35 mm x 26 mm
- data suspension (Hold)
- powered by two 1.5 V AA batteries
- low battery indication
- automatic switch-off after 15 minutes (function can be temporarily switched off)


Technical parameters :

- AC current measurement :
( ranges / resolution / accuracy )
200.0 A / 0.1 A / ± (1.8% + 2) in the range of 0.2 A to 2.0 A, 50 to 60 Hz
200.0 A / 0.1 A / ± (1.8% +3) in the range of 2.0 A to 5.0 A, 50 to 60 Hz
200.0 A / 0.1 A / ± (1.8%+5) in the range of 5.0 A to 200 A, 50 to 60 Hz
- frequency monitoring accuracy when measuring AC current above 20 A, between 50 and 60 Hz is ± (0.1% + 5) at a resolution of 0.01 Hz
- overload protection at 200 A


- AC voltage measurement :
( range / resolution / accuracy )
6,000 V / 0.001 V / ± (1.2% + 3), in the range of 10 Hz to 10 kHz
60.00 V / 0.01 V / ± (1.2% + 3), 10 Hz to 10 kHz
600.0 V / 0.1 V / ± (1.2% + 3), in the range of 10 Hz to 10 kHz
1000.0 V / 1 V / ± (1.2% + 8), in the range of 10 Hz to 10 kHz
- between 45 Hz and 400 Hz, measures the real effective voltage value
- frequency monitoring accuracy when measuring AC voltage between 10 Hz and 10 kHz is ± (0.1% + 5) at a resolution of 0.01 Hz to 0.01 kHz, at amplitudes greater than 8 V RMS
- overload protection at 1000 Vrms
- input impedance approx. 10 MGΩ


- DC voltage measurement :
( range / resolution / accuracy )
6,000 V / 0.001 V / ± (0.8% +3)
60.00 V / 0.010 V / ± (0.8% +3)
600.0 V / 0.100 V / ± (0.8% +3)
1000.0 V / 1 V / ± (1.0% +5)
- input impedance approx. 10 MOhm
- overload protection at 1000 V


- Resistance measurement :
( ranges / resolution / accuracy )
600.0 Ω / 0.1 Ω / ± (1.2% + 2)
6,000 kΩ / 0.001 kΩ / ± (1.0% + 2)
60.00 kΩ / 0.01 kΩ / ± (1.0% + 2)
600.0 kΩ / 0.1 kΩ / ± (1.0% + 2)
6,000 MΩ / 0.001 MΩ / ± (1.2% + 2)
60.00 MΩ / 0.01 MΩ / ± (2.0% + 5)
- overload protection at 1000 Vrms
- open circuit voltage approx. 1V



- Checking the continuity of circuits :
- when the measured resistance is less than 10 Ω, a continuous circuit is signaled and a buzzer sounds
- when the measured resistance is greater than 100 Ω, the disconnected circuit indication does not sound the buzzer
- open circuit voltage about 1.0 V
- measurement on 600 Ω range, with 0.1Ω resolution
- overload protection at 1000 Vrms


- Non-contact electric field sensing (NCV):
- low voltage detection mode ("EFLo") for voltages <48V
- low voltage detection mode ("EFHi") for voltages > 48V
- as the detected voltage increases, the number of segments on the display increases, the green, yellow and red LEDs flash sequentially and a buzzer sounds


General parameters :

- working temperature and ambient humidity: 0 °C ~ 30 °C (≤80% RH), 30 °C ~ 40 °C (≤75% RH), 40 °C ~ 50 °C (≤45% RH)
- storage temperature and humidity: -20 °C ~ 60 °C (≤80% RH)
- working altitude: ≤2000m
- electromagnetic compatibility: in elmag. field RF = 1V/m, the additional error is 5% of the range, in the field RF > 1V/m, the overall accuracy is not specified
- product dimensions: 217 x 58.8 x 38.5 mm
- net product weight: 251 g
- product colour: red and grey
- this instrument is designed in accordance with IEC/EN61010-1, IEC/EN61010-2-033 and EN61326-1 safety standards and conforms to CAT II 1000V, CAT III 600V, double insulation.


Contents of the package :
- clamp multimeter UT256A: 1pc
- test cables: 1 pair
- batteries 1.5 V (LR6): 2pcs
- instructions for use: 1pc


Wholesale packaging :
- standard quantity per carton: 20pcs
- standard carton dimensions: 485 x 310 x 205 mm
- standard gross carton weight: 9.5 kg


MANUFACTURER: UNI-TREND
