Parking sensors COMPASS 33603

Product detailed description

Parking sensors COMPASS 33603
The parking assistant with LED display and numeric display, using wireless technology, for convenient visual indication of the distance to an obstacle. It works on the principle of ultrasonic waves transmitted by sensors in the rear bumper. It is activated by shifting into reverse.

The driver is informed of the distance to the obstacle by the information on the display and the beeping of an acoustic signal. The system helps the driver to park safely and avoids unforeseen collisions (e.g. when the driver has a restricted view or the obstacle is out of the driver's field of vision).

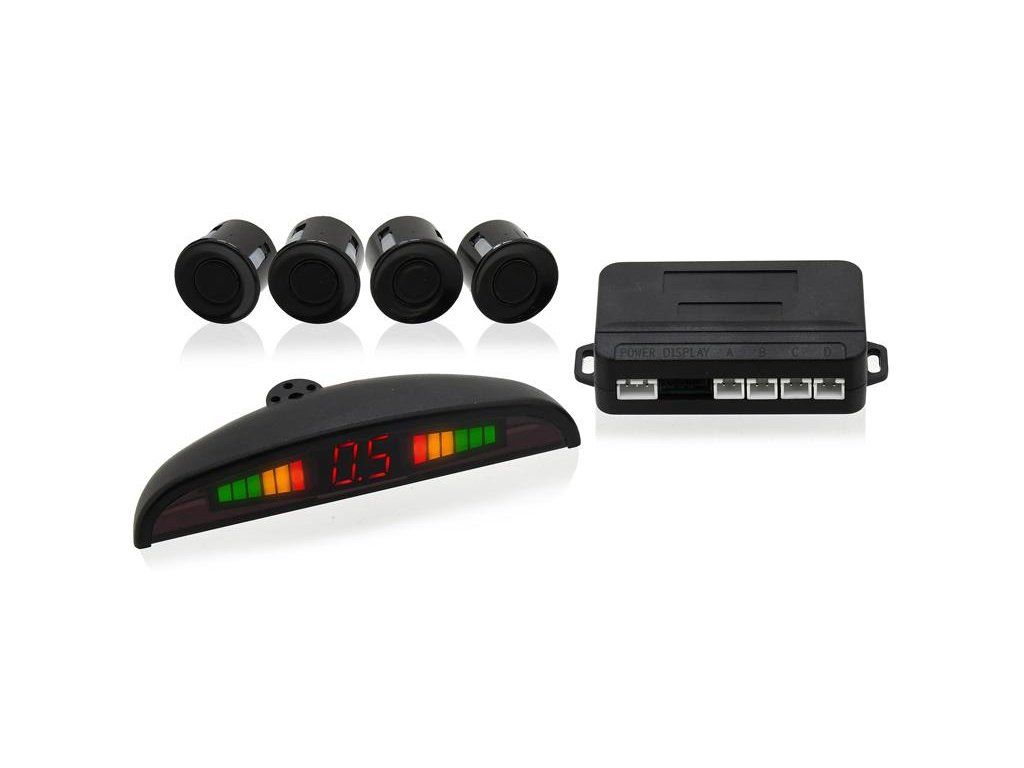

The package includes the display, the control unit, 4 sensors for mounting in the rear bumper, the corresponding wiring harness and a drill bit of the appropriate diameter.

The display of this parking assistant is equipped only with wiring for power supply, the data transmission from the control unit is wireless, which significantly facilitates the installation of the display and the comfort of using the device.

Technical data:

Number of sensors: 4
Sensor colour: black, glossy
Sensor mounting hole: 22 mm
Display unit: LED display (wireless data acquisition)
Acoustic signal: yes
Power: 12 V = (10.5 - 16 V)
Power: 40 - 300 mA
Obstacle detection: up to 2.5 m
Frequency: 40 kHz
Operating temperature: -20°C to +70°C
Scan angle: vertical 60°; horizontal 120°
