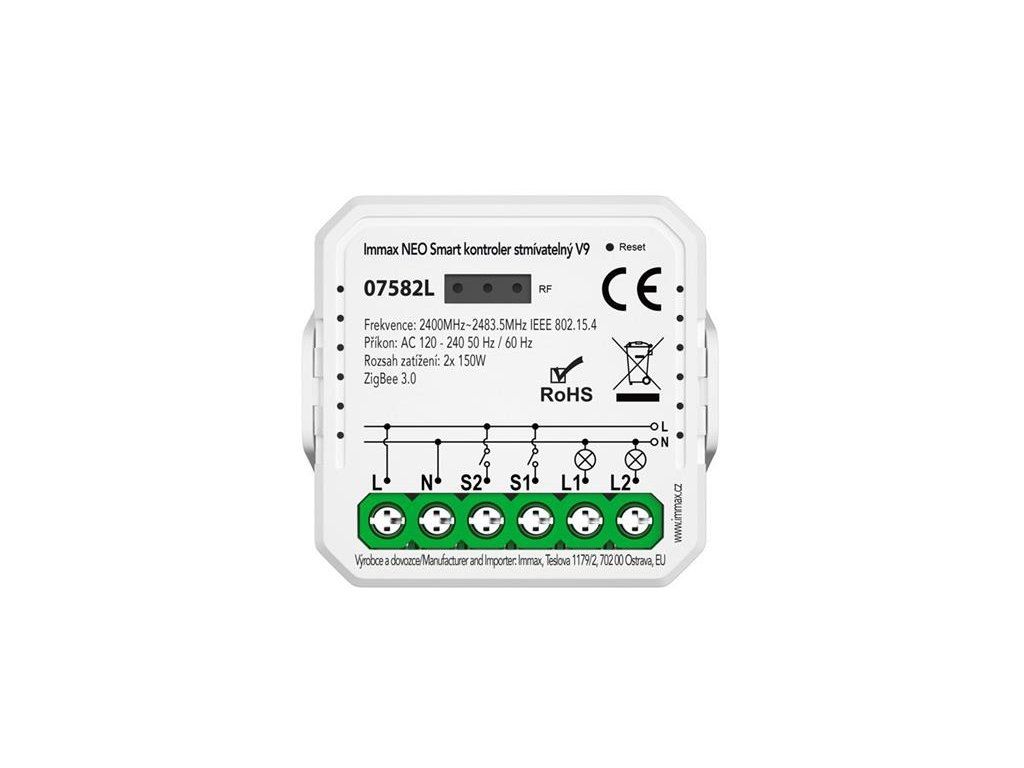

Smart switch IMMAX NEO 07582L ZigBee Tuya

Product detailed description

Smart dimmable controller

Technical parameters:

Note: with the connection of the zero wire, under the button
Communication protocol: ZigBee 3.0
Frequency: 2400MHz~2483.5MHz IEEE 802.15.4
Maximum RF output power: ZigBee: 10dBm - max 19dBm
Zigbee repeater: yes
Mains standby power (Pnet): 0.4W
Power: AC 100 - 240 50 Hz / 60 Hz
Load range: 2x 150W
Thermal fuse , overheating protection: yes
Current fuse , overvoltage and overload protection: yes
Wireless range: 30 m direct visibility, 10 m in built-up area
Operating temperature: -10°C to 40°C.
Operating humidity: 20% - 80%.
Dimensions: 3.9 x 3.9 x 1.8 cm (without holder)
Degree of protection: IP20

Package contents: smart controller, user manual
