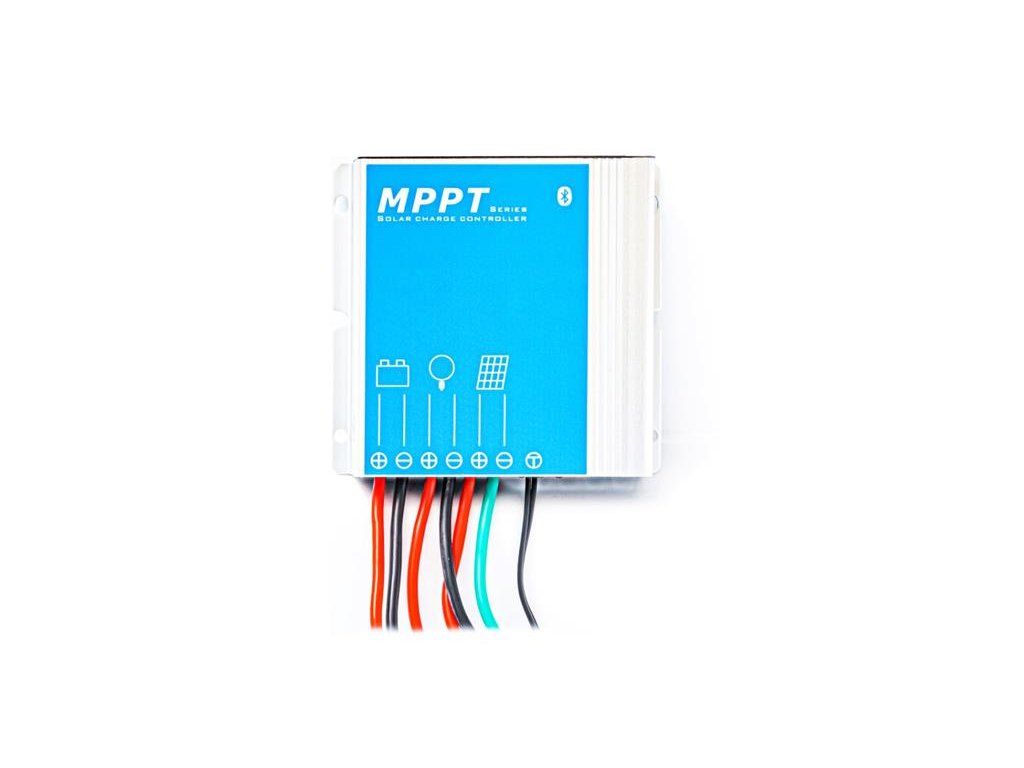

Solar controller VOLT Sol 12V MPPT 10A Bluetooth

Product detailed description

Solar controller The SOL MPPT 10A controller is designed to charge batteries from a connected set of solar panels. This modern and multifunctional device performs charging based on the latest and most efficient MPPT charging technology.

By optimizing the charging process, the controller effectively extends battery life over standard PWM controllers.

- Modern MPPT (Max Power Point Tracking) technology.
- Conversion/tracking efficiency > 99.9%
- Automatic voltage detection of the connected 12V battery
- For use with GEL, AGM, lithium and liquid electrolyte batteries
- Setting all LiFePO4 battery parameters is only available from the smartphone app
- Four-phase charging: MPPT, BOOST, Equalization, Float
- The controller is controlled using a special smartphone app
- Fully automatic protection (short circuit, temperature, overload)

Technical parameters:

- Maximum charging current: 10A
- Flashlight voltage: 12V
- Maximum panel voltage: 50V
- Self power consumption: 8 mA
- For batteries: AGM, GEL, lithium, liquid electrolyte
- MPPT charging voltage: 14.5 (at 25 °C)
- BOOST voltage: 14/14.8 V (at 25 °C)
- Voltage compensation: 14/15 V (at 25 °C)
- Floating voltage: 13/14.5 (at 25 °C)
- Disconnection of receivers at low voltage: 10.8~11.8V/21.6~23.6V SOC1~5
- Reconnect voltage: 11.4~12.8V/23.2~25.6V
- Overload protection: 15.5V
- Temperature compression: -4.17 mV/K per cell (Boost, Equalization) -3.33 mV/K per cell (Float)
- Twilight/dawn sensing voltage: 5/10V
- Dimensions: 85.8 x 81 x 23.1 mm
- Weight: 0,26 kg
- Safety: IP67
