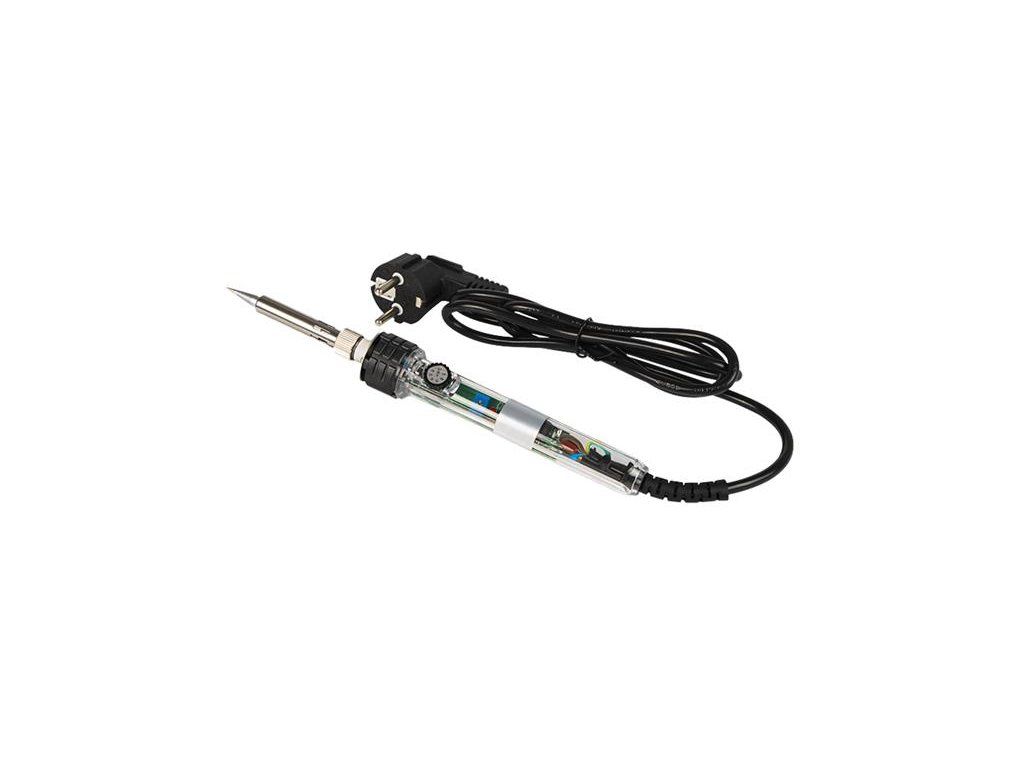

Soldering pen TIPA ZD-708N with temperature adjustment

Product detailed description

Soldering pen TIPA ZD-708N with temperature adjustment
Soldering pen ZD-708N with tip temperature adjustment by electronic power control. Clear plastic handle with upgraded electronics and updated knob temperature controller built in. Replaceable N7-1 long life direct tip. Handheld soldering iron designed to solder both leaded and lead-free tin (not recommended to be combined).
Round European three-pole 230V AC plug with 3G x 0,5mm² cable length 1,35m. Grounded tip cover. High quality heating element with integrated temperature sensor and 50W power input.


Product parameters :

- soldering iron with control temperatures from 200 °C to 500 °C
- for small to medium soldering jobs in heavy-duty applications
- replaced straight direction N7-1 often 6,3 mm, tip radius R 0,5 mm
- reach working temperature in every 45 seconds
- red LED indication of heating switch-on
- easily accessible knob for convenient temperature adjustment
- tip grip with stainless steel tube


Technical parameters :

- rated voltage: 230 V AC / 50Hz
- rated input power: 30 to 50W
- solder tip temperature: 200 - 500°C
- electroplated tip type N7-1
- dimensions: 230 x 30 x 30 mm


Contents of the package :
- soldering pen ZD-708N
- stand under the tip
- instructions for use
