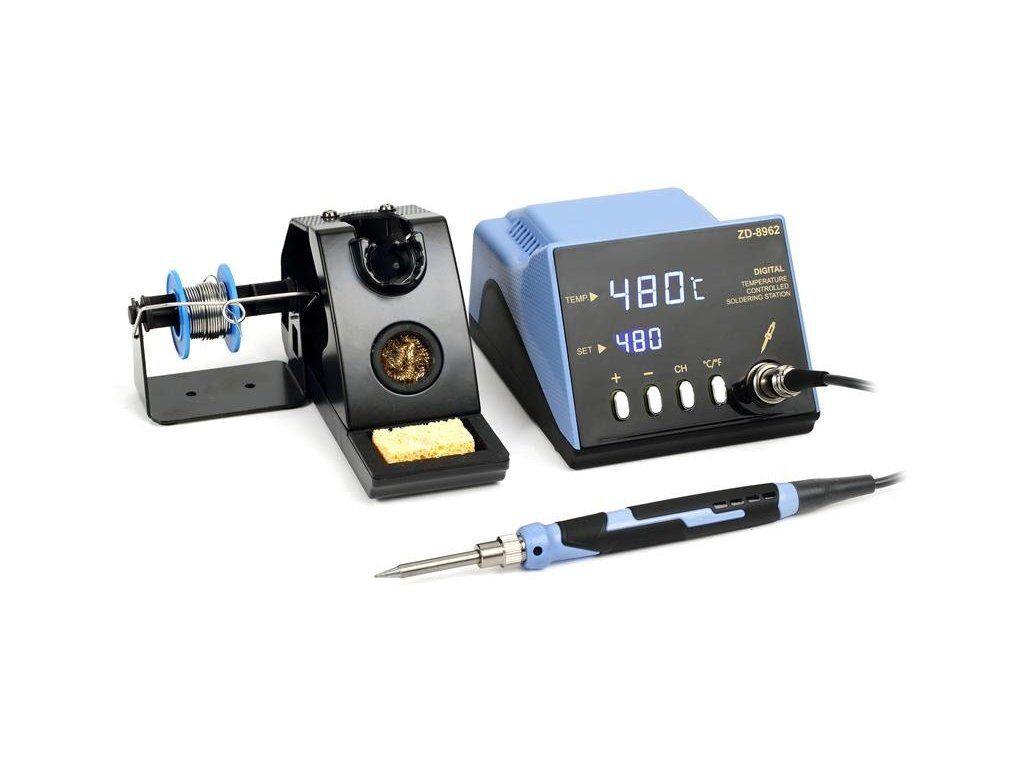

Soldering station ZD-8962

Product detailed description

Soldering station (micro soldering iron) ZD-8962 designed for lead-free soldering with adjustable tip temperature in the range of 160 to 480 ° C is suitable for fine work in electronics, The LED display of the station digitally displays the set and current working temperature of the soldering tip, which can be accurately adjusted. Fast warm-up in 8 seconds and 70 W power with a temperature range of 160 °C - 480 °C. Ergonomic design with flexible silicone cable and stand for safe storage. Interchangeable tips from the TIP N12-1 to TIP N12-6 range. A copper wire ball and cleaning sponge are supplied for cleaning the tip.
The instrument is designed for use in electronic research, schools and manufacturing, especially in repairing and soldering electronic devices and telecommunication equipment


Product Parameters :

- LED display: dual display showing set and current temperature
- quick warm-up: ready to use in 8 seconds
- temperature setting from 160°C to 480° (320℉- 896℉)
- ergonomic design: compact and lightweight soldering iron for easy handling
- integrated tip and heating element which is plug and play - easy to change
- two-tone temperature-resistant handle for comfortable grip
- integrated tip that heats up quickly and restores temperature
- automatic sleep mode: about 10 minutes of inactivity, the temperature is reduced to 200 °C
- flexible silicone cable - softer and heat resistant
- solder stand + cleaning sponge and tip cleaner for easy tip cleaning while working
- temperature adjustment via buttons
- possibility of presetting heat values using the CH button
- °C/°F switching


Technical parameters:

- power supply : 220 - 240 V AC / 50Hz
- rated power : 70 W
- temperature range : 160 to 480 °C
- soldering tip power supply: 20V
- power cable length 1.3 m
