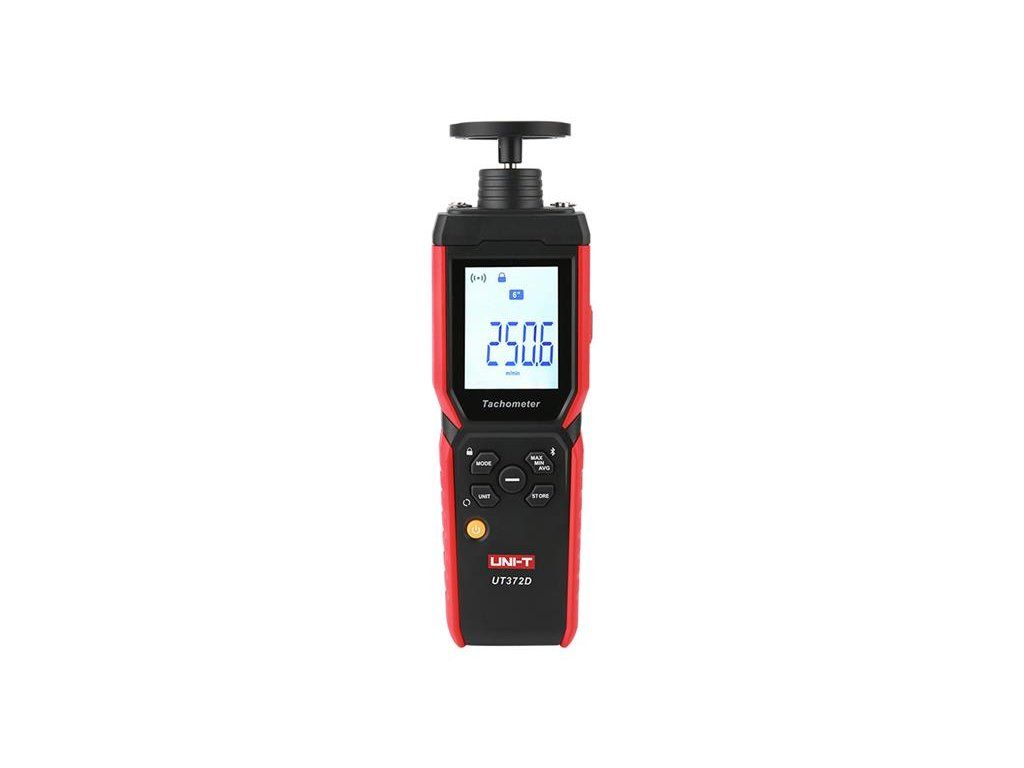

Tachometer UNI-T UT372D

Product detailed description

We offer a 3-year warranty on this product. The UT372D 2-in-1 Tachometer is a reliable and safe instrument that combines contact and non-contact measurement modes. It is mainly used to measure revolutions per minute (RPM), frequency, surface speed and length in the fields of motors, fans, automobiles, papermaking, etc.


Product parameters:

- contact and non-contact measurement
- measuring rotational speed, frequency, count, surface speed and length.
- MAX/MIN/AVG/HOLD
- lCD rotatable display with backlight
- transfer of units
- bluetooth app that makes it easy to view data, export charts and perform other operations on your smartphone.
- automatic shutdown
- data storage (10 data groups)
- two buttons for measuring


Technical parameters:

Non-contact (optical) measurement:
- rotation speed (rpm): 1-99 999
- frequency (HZ): 1-1.666
- number (REV): 1-99,999
- target distance: 50~500 mm

Contact measurement:
- rotation speed (rpm): 1-19,999
- frequency (HZ): 1-333

- surface velocity:
0.1m round
0.1-1.999 m/min
0.4-6,550 ft/min
4-78,700rpm

6" wheel
0.15-1.524 m/min
0,5-5 000 ft/min
6-60 000 min/min

- length 0-99999(m/ft/in)
- accuracy ±0.02 % ±1 digit
- measuring modes: contact speed/ non-contact speed/ counting/frequency/ surface speed/length
- contact measuring unit: m/min, ft/min, in/min, m, ft, in
- statistical measurement: max/min/last reading/average
- data storage 10 groups
- operating temperature/humidity: 0 °C ~ 50 °C; ≤80%RH
- storage temperature: -20 °C ~ 60 °C; ≤80%RH
- drop test from a height of 1 m
- automatic shutdown after approx. 15 minutes of inactivity
- product colour: red grey
- product weight: 181 g (without batteries)
- product size: 176 × 63 × 38 mm
- charging: battery 3 x AAA 1.5 V

Accessories :
- shaft contacts (cone/inner cone)
- contact wheels (6in/0.1m)
- cloth pocket
- reflective tape

- standard cardboard with dimensions 395 mm × 330 mm × 330 mm
- standard quantity in carton 10 pcs
