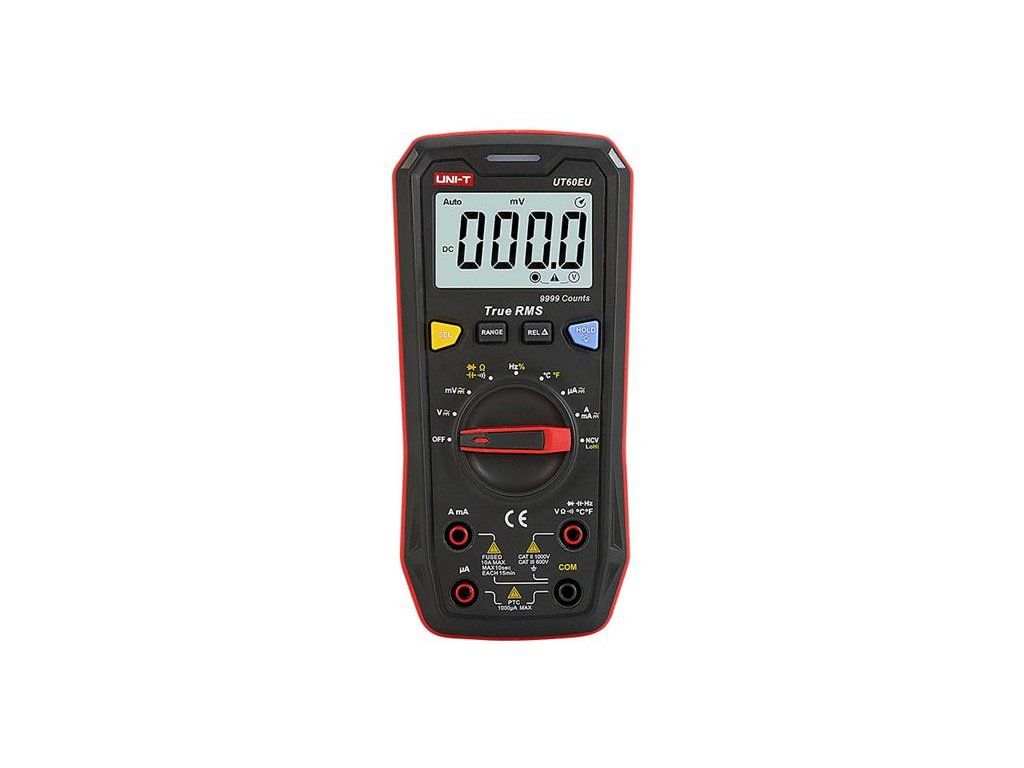

UNI-T UT60EU multimeter

Product detailed description

We offer a 3-year warranty on this product.

The UT60EU is a digital multimeter with a display range of 9999 that allows measurement of actual effective RMS voltage and current values with both automatic and manual range selection. It has 1000V rms overload protection on all ranges, the current range is protected by a 10A/1000V, 6.35 x 32mm tube fuse. When measuring voltages and currents approaching the ≥990.0V / ≥9,900A limits, an alarm will sound and an "OL" will be displayed when the limits are exceeded. It also allows the measurement of resistance, capacitance, temperature, frequency, duty cycle, circuit continuity and semiconductor transitions. The circuit is optimized for non-contact measurement of the electric field in two subranges. The multimeter is equipped with a modern processor with fast analog-to-digital converter (3 times/s conversion).

The entire multimeter design is equipped with a durable double-insulated housing and has European CE certification and meets the CAT II 1000V/CAT III 600V safety classification. The instrument is suitable for work in the laboratory or workshop as well as for normal electrician's practice. It is powered by standard 3 x 1.5 V, AAA batteries, which last up to 500 hours due to their low consumption.

Product Parameters :

- backlight display range: 9999
- voltage measurement: up to ±1000V/DC/AC rms
- current measurement: up to ±10A/DC/AC rms
- resistance measurement: up to 99.99MΩ
- capacitance measurement: up to 9,999mF
- temperature measurement: with supplied K probe up to 250°C
- frequency measurement: up to 9.999MHz
- duty cycle measurement: up to 1kHz
- measurement modes: auto / manual / REL / RMS / HOLD / NCV EFLo / NCV EFHi
- circuit continuity measurement
- measurement of semiconductor transitions
- non-contact NCV measurement
- optical and acoustic alarms
- protection of voltage inputs against overload above 1000V
- protection of current input 10A by fast fuse
- input impedance approx. 10MΩ for DCV, on the DCmV range then 3GΩ
- power supply: 3 x 1.5 V, AAA
- power consumption in low power measurement: about 2 mA
- sleep mode power consumption: < 30 μA
- operation on one set of batteries: 500 hours
- low battery indication: yes
- automatic shutdown ( sleep when idle ): yes, after 15 minutes


Technical parameters:

- DC voltage measurement ( input impedance is about 3GΩ on the DCmV range, 10MΩ on the other ranges ):
(range/resolution/accuracy)
9.999mV / 0.001mV / ± (0.7% + 8)
99.99 mV / 0.01 mV / ± (0.7% + 8)
999.9 mV / 0.1 mV / ± (0.5% + 3)
9.999 V / 0.001 V / ± (0.5% + 3)
99.99 V / 0.1 V / ± (0.5% + 3)
999.9 V / 0.1 V / ± (0.5% + 3)
- Maximum input voltage: ±1000V, alarm sounds at 990.0V, "OL" is displayed at >1000V.
- Overload protection 1000V RMS (DC/AC)


- AC voltage measurement ( input impedance approx. 10MΩ, ):
( range/resolution/accuracy in the range 40Hz to 400Hz, sine RMS )
9.999mV / 0.001mV / ± (1% + 3)
99.99 mV / 0.01 mV / ± (1% + 3)
999.9 mV / 0.1 mV / ± (0.8% + 3)
9.999 V / 0.001 V / ± (0.8% + 3)
99.99 V / 0.1 V / ± (0.8% + 3)
999.9 V / 0.1 V / ± (0.8% + 3)
- Maximum input voltage: AC1000V, alarm sounds at 990.0V, "OL" is displayed at >1000V.
- Overload protection 1000V RMS (DC/AC)


- DC current measurement:
( range / resolution / accuracy )
999.9 μA / 0.1 μA / ± (0.8% + 3)
999.9 mA / 0.1 mA / ± (1.0% + 3)
9.999 A / 0.001 A / ± (1.0% + 3)
Alarm sounds at ≥9,900A, at >10,00 A "OL" is displayed
Overload protection: 1000V RMS, 10A fast fuse


- AC current measurement:
(range/resolution/accuracy from 40Hz to 400Hz)
999.9 μA / 0.1 μA / ± (1.0% + 3)
999.9 mA / 0.1 mA / ± (1.2% + 3)
9.999 A / 0.001 A / ± (1.2% + 3)
Alarm sounds at ≥9,900A, at >10,00 A "OL" is displayed
Overload protection: 1000V RMS, 10A fast fuse


- Resistance measurement:
( range / resolution / accuracy )
999.9 Ω / 0.1 Ω / ± (0.8% + 2)
9.999 kΩ / 0.001 kΩ / ± (0.8% + 2)
99.99 kΩ / 0.01 kΩ / ± (0.8% + 2)
999.9 kΩ / 0.1 kΩ / ± (0.8% + 2)
9.999 MΩ / 0.001 MΩ / ± (1.5% + 3)
99.99 MΩ / 0.01 MΩ / ± (2.0% + 5)
1000V overload protection


- Capacitance measurement of capacitors:
( range / resolution / accuracy )
9.999 nF / 0.001 nF / ± (4% + 10)
99.99 nF / 0.01 nF / ± (4% + 5)
999.9 nF / 0.01 nF / ± (4% + 5)
9.999 µF / 0.001 µF / ± (4% + 5)
99.99 µF / 0.01 µF / ± (4% + 5)
999.9 μF / 0.1 μF / ± (4% + 5)
9.999 mF / 0.001 mF / ± (10%)
For capacitances ≤100nF, use REL mode
1000V overload protection


- Frequency measurement:
( range / resolution / accuracy )
99.99 Hz to 9.999 MHz / 0.01 Hz to 0.001 MHz / ± (0.1% + 5)
Overload protection 1000V RMS (DC/AC)


- Duty cycle measurement for rectangular waves ≤10kHz:
( range / resolution / accuracy )
0.1 to 99.9% / 0.1% / ± (3% + 5)
Overload protection 1000V RMS (DC/AC)


- Diode test:
voltage at the terminals without load about 3.3 V
the voltage drop across a good silicon junction is 0.5 to 0.8 V
measurement resolution 0.001 V


- Circuit continuity test:
the buzzer tone will not sound if the resistance is greater than 30 Ω
the tone will sound if the resistance is less than 30 Ω
Overload protection 1000V RMS (DC/AC)


- Temperature measurement:
( range / resolution / accuracy )
-40 °C to 0 °C / 1 °C / ± 4 °C
0°C to 100°C / 1°C / ± (1.0% + 5)
100 °C to 1000 °C / 1 °C / ± (2.0% + 5)

-40°F - 32°F / 1°F / ±5°F
>32°F - 212°F / 1°F / ± (1.5% + 5)
>212°F - 1832°F / 1°F / ± (2.5% + 5)
The Type K thermocouple in the accessory is only usable for temperature measurements below 250°C/482°F.
Overload protection 1000 V RMS (DC/AC)


General characteristics:

- ambient operating temperature: 0 °C to 40 °C
- storage temperature: -10°C - 50°C (14°F - 122°F)
- working relative humidity: ≤75% (0°C to 30°C) , ≤50% (30°C to 40°C)
- working altitude: 0 to 2000m
- environment of use: indoor use
- eMC immunity: for radio frequency field 1V/m
- power supply : 3 x 1.5 V, AAA
- lCD display: 73 mm x 50 mm with backlight, 2 brightness levels or off
- product colour : red and grey
- net product weight: 290 g
- product weight: approx. 400g (including batteries)
- product size : 169 x 81 x 46 mm


Contents of individual packaging:

- multimeter UT60EU with storage case: 1pc
- battery 1.5 V, AAA: 3pcs
- fuse F1 : F 10A /250V (6,35 x 32mm) - in unit: 1pc
- test cables with spikes in CAT II 1000V/CAT III 600V: 1pair
- temperature probe: 1pc
- instructions for use: 1pc


Wholesale packaging:

- standard quantity in carton: 20pcs
- standard carton size: 420 x 320 x 300 mm
