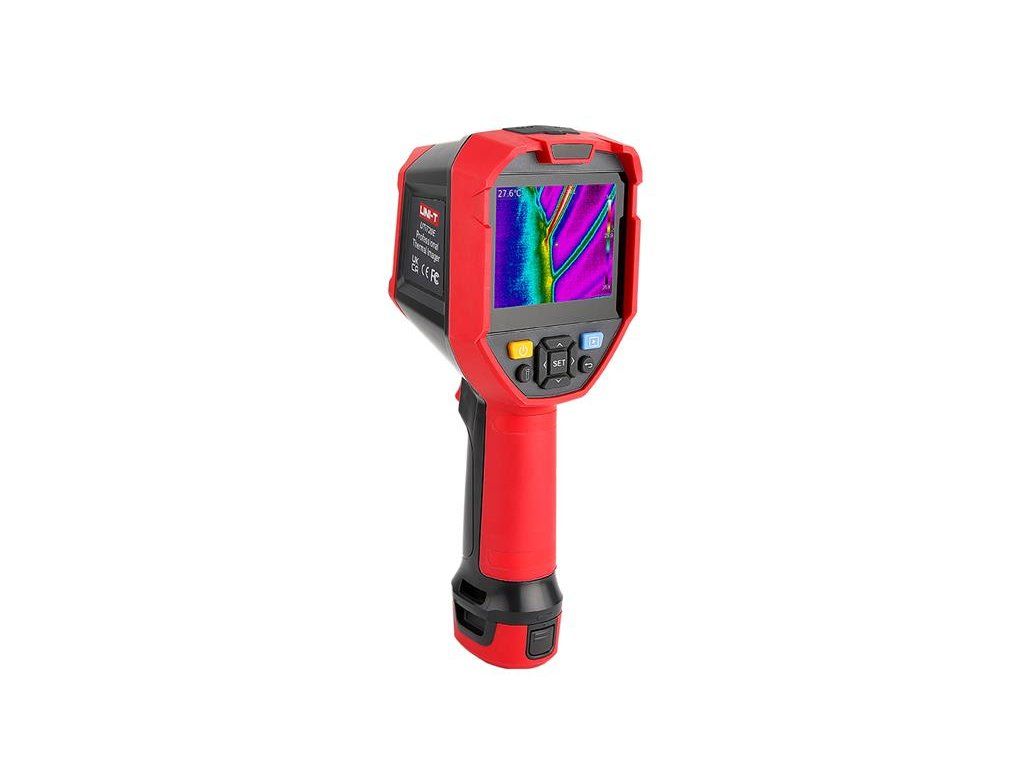

UNI-T UTi720E thermal imager

Product detailed description

We offer a 3-year warranty on this product.

The UTi720E is a high-end infrared camera designed to measure the surface temperature of objects ranging from -20°C to +550°C in two manually switchable sub-ranges (-20℃ to +150℃ and 0℃ to +550℃).
The camera contains 49152 pixels of uncooled vanadium oxide, each 12μm in diameter. The thermal image of the objects converted into a visible image by the selected color palette can be blended with the image in the visible light domain. This is taken care of by an additional 2 million pixels for visible light. Setting the system date and time and generating QR codes for each photo simplifies later photo classification. Manual or automatic camera shutter release at preset intervals. Saving images on the supplied microSD card or transferred via Wi-Fi hotspot e.g. to a laptop. Real-time image output via USB-C connector to laptop and TV. Switching of temperature units in Celsius, Kelvin and Fahrenheit. Automatic tracking of the hottest and coldest spot in the image with temperature indication, temperature analysis of several objects at once: point, line, circle, rectangle. Setting temperature alarms. Analysis of photos on PC or mobile phone using the supplied Vitta software and APP. Removable 5200mAh Li-ion battery that can be charged in the device or in an external charger.
The UTi720E thermal imaging camera finds wide application in the construction industry when looking for heat leaks from masonry, roofs or pipes, in the energy industry when identifying faults in electrical power systems, in the heating industry when looking for heat leaks in buildings, roofs or pipes. lines, in cold stores, in service stations when searching for overloaded equipment and in scientific research.

On the manufacturer's website you can download the software in the form (.zip) or (.exe) for interfacing with a PC or for mobile applications in the form (.apk) or (.zip). Here it is also possible to download the user manual in English, French, German, Russian and Spanish:


https://thermal.uni-trend.com/product/uti720e/#Downloadsf52d-5897


Product Parameters :

- surface temperature measurement from -20 °C to +550 °C
- temperature analysis of objects: point, line, circle, rectangle
- 7 colour swatch palettes for thermal image transposition
- automatic tracking of the highest and lowest temperature in the picture
- adjustable high and low temperature alarms
- blending of the thermal image with the visible image
- free focus lens, digital zoom 2x, 4x
- very small thermal imaging pixels, only 12μm
- adjustable emissivity of measured objects
- setting the system time and date
- storage of images on the supplied micro SD card
- uSB-C connector for charging the battery, transferring images to a PC, and projecting images
- built-in Wi-Fi for hotspot creation
- 3.5" IPS LCD display with 640 x 480px resolution
- built-in LED light
- removable Li-ion battery 5200mAh
- ¼" mounting thread for tripod


Technical parameters :

- total IR resolution: 256 x 196 pixels (49152 pixels total)
- visible light sensor resolution: 2 million pixels
- temperature measurement range: -20℃ to 550℃ (-4℉ to 1022℉)
- temperature measurement unit: ℃ (default), ℉, K
- temperature resolution: 0.1°C
- thermal sensor: uncooled vanadium oxide
- thermal imaging sensor pixel size: 12μm
- measurement in the infrared spectral band: 8μm to 14μm
- field of view (HFOV): 56°
- thermal sensitivity (NETD): < 50mK @25℃
- IFOV (Instantaneous Field of View): 3.8 mrad
- focus mode: free focus lens
- focal length: 3.2 mm
- digital zoom: 2x, 4x
- frame rate: ≤25Hz
- temperature measurement accuracy: -10℃ to 550℃ (at room temperature 25℃ and ±2℃/±2% for maximum accuracy value)
- display: 3.5" LCD IPS with 640 x 480px resolution
- image mode: thermal imaging, visible light, fusion (0%, 25%, 50%, 75% and 100%), and picture-in-picture
- adjustable emissivity: 0.01 to 1.0 (default 0.95)
- temperature analysis area: point, line, rectangle, circle (up to 6 objects at a time)
- transposition of the thermal image into the colour palette: iron red, rainbow, black glow, white glow, red glow, lava, high contrast rainbow
- high and low temperature alarm: yes (LED alarm and LCD animation alarm)
- analytical software: Vitta, APP
- shooting mode: manual shutter release, automatic shutter release at intervals of 1 to 1000 sec
- image storage format: jpg
- interface: microSD card with max. capacity 32 GB; USB-C (charging, real-time image and storage on USB drive); WIFI Hotspot
- menu language: english/French/German/Spanish/Russian
- certification:CE, FCC, UKCA, ROHS
- operating temperature: 0℃ to 50℃ (32℉ to 122℉)
- storage temperature: -10℃ to 60℃ (14℉ to 140℉)
- operating humidity: 10% to 95% RH (non-condensing)
- power supply: removable Li-ion battery 5200mAh
- automatic shut-off: yes, optional Off/5/10/20/30/45/60/90 minutes
- charging time: less than 4 hours
- battery life per charge: more than 3 hours (with WIFI off)
- iP level: IP54 (IEC 60529:1989+A1:1999+A2:2013)
- drop test: 2m
- net weight: 654 g
- product dimensions: 260 × 97 × 99 mm
- standard carton size: 400 × 185 × 345 mm
- weight of a standard GW carton pack: 3.6 kg


Contents of the package :

- thermal imager UTi720E: 1 pcs
- battery 5200mAh: 1 pc
- USB cable type C: 1 pc
- micro SD card 16 GB: 1 pc
- operating Instructions: 1 pcs
