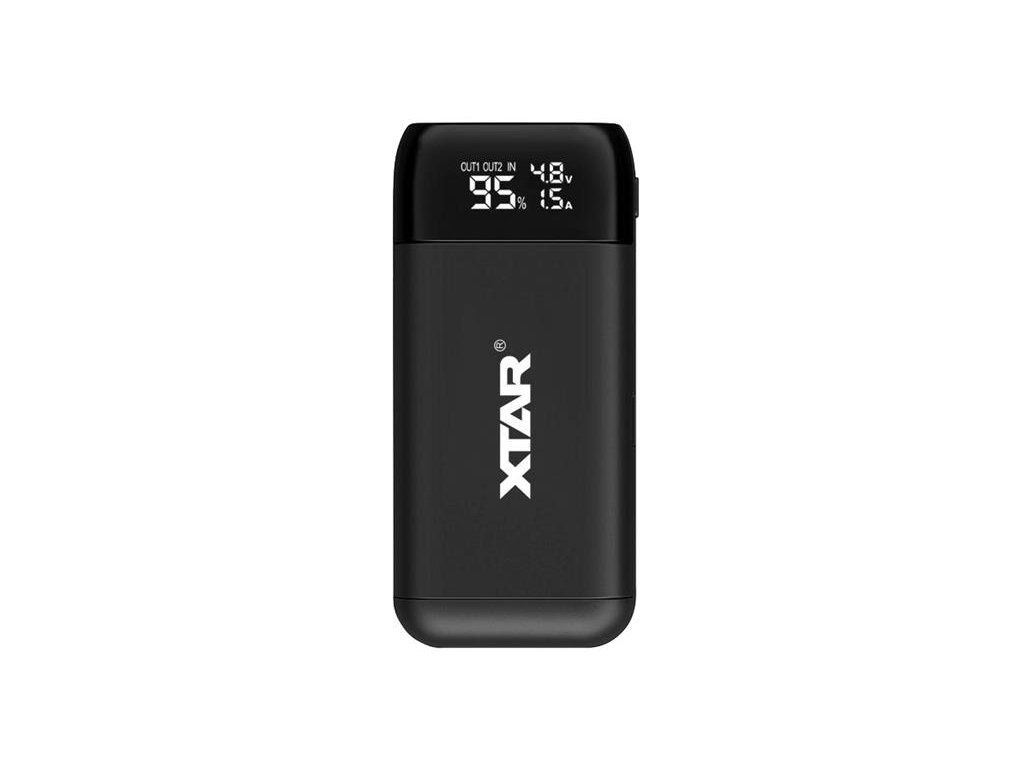

XTAR PB2S BAT1147 charger

Product detailed description

XTAR PB2S BAT1147 charger
Professional processor charger for Li-ion 18650/20700/21700/26650 cells with PowerBank function

- three-phase charging: TC/CC/CV
- two independent charging channels
- reactivation of deeply discharged cells
- 0V cell charging current : 2x2A / 2x1A / 1x2A | charging voltage : 4.2V
- efficient converter - 92% efficiency
- magnetic cover for the charging chamber
- power supply from USB TYPE C QC 3.0 and PD 3.0 - (without power adapter)
- protection: thermal, short-circuit, against reverse battery insertion
- dimensions: 125 x 58 x 28mm

The small case houses a fully professional processor charger with powerbank function with a three-stage TC/CC/CV charging process. It charges 3.6 / 3.7 V Li-ion cells of any capacity in size 18650/20700/21700/26650. An intelligent built-in balancer controls the charging and discharging process. Thanks to it, the lifetime of the cells is significantly extended. The charger always starts by charging the more discharged cell. When a similar charge level is reached, it starts charging both batteries simultaneously. The same happens in case of discharge. The charger starts discharging from the more charged cell, after the charge levels are equal it starts discharging both batteries at the same time (powerbank function).

The Xtar PB2S charger kit includes a USB TYPE C cable. The kit does not include a power adapter. Any charger with a USB connector, e.g. from a phone or computer with a free USB port, will suffice to power the charger. The recommended charging source is one that supports QC3.0/PD3.0 to take full advantage of the charger. It is possible to use a charger with a lower power rating, but in this case the charging time will be extended.
