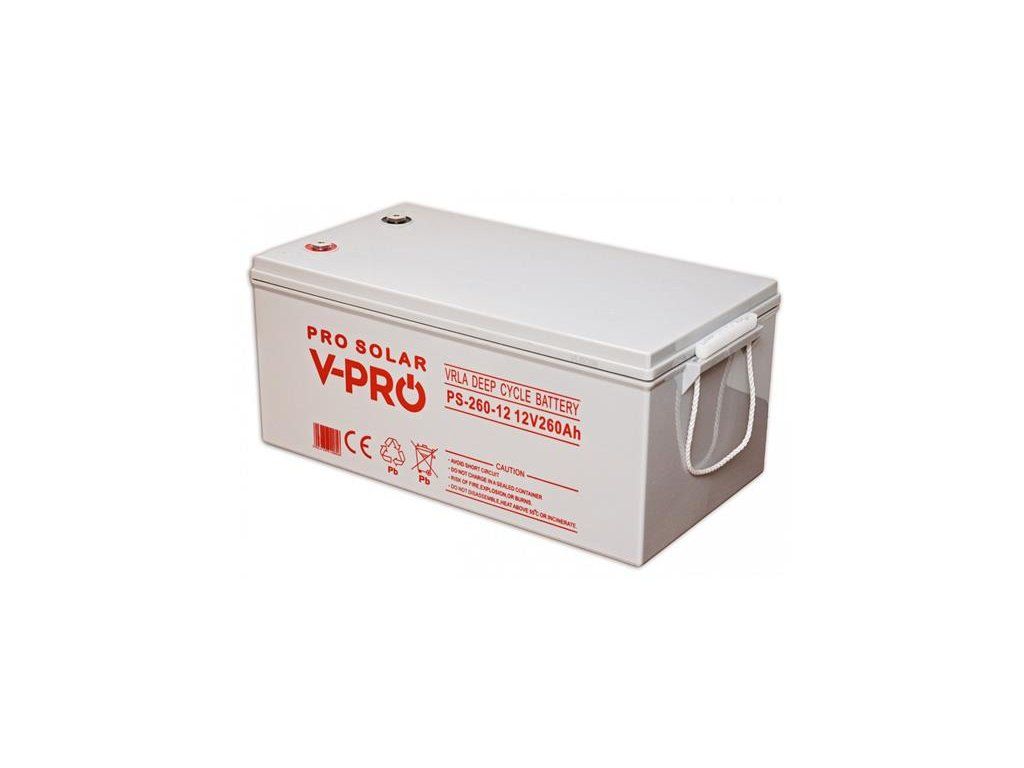

Battery 12V 260Ah V-PRO SOLAR DEEP CYCLE

Product detailed description

WARNING: This product, due to its weight, falls into the category of oversized goods for which special transport must be arranged. The delivery time may therefore be extended to 3-4 days.

The DEEP CYCLE series battery is designed for, among others: for powering solar and wind energy systems, motorhomes, emergency power systems (UPS, automation). It is designed and constructed in such a way that it can be deeply discharged before recharging.

- It has a reinforced structure with lead plates, high density active materials and a slightly thicker electrolyte than standard batteries. This allows it to be used in applications where it cycles
- Automatic sealing system . When the pressure inside the accumulator increases too much, the valves will open, causing the resulting gas to be safely vented outside the enclosure and preventing damage. This situation occurs when the battery is overcharged
- Battery case made of ABS material, cells made of copper

What devices are powered by the DEEP CYCLE battery?

- Solar and wind energy system
- Emergency power supply system
- Communication equipment
- Telecommunication systems
- Uninterruptible power supplies
- Wheelchair
- Power tools
- Golf cars
- Buggy off-road vehicles
- Marine equipment ( using hermetic battery case)
- Medical equipment

Why use a DEEP CYCLE battery?

- Perfect recovery after deep discharge
- Long service life - up to 10 years at 25°C
- High resistance to mechanical damage and high temperatures
- Maintenance-free - no need to refill or replace electrolyte
- Safe to use (no electrolyte leakage, pressure valves)

Technical parameters:

- Rated voltage: 12V
- Nominal capacity: 260Ah
- Overall height: 226 mm
- Height: 218 mm
- Width: 268 mm
- Length: 522 mm
- weight: 66 kg (145.5 Ibs) ± 3%
- Capacity (at 25°C) 20h (10.2V): 260Ah
- Capacity (at 25°C) 10h (10.5V): 250Ah
- Capacity (at 25 °C) 3h (10.2 V): 187.5 Ah
- Capacity (at 25°C) 1h (9.6V): 150Ah
- Internal resistance (at 25°C): 3mΩ
- Capacity: (40 °C): 102 %
- Capacity (25°C): 100%
- Capacity (0°C): 85%
- Capacity (-15 °C): 65 %
- Self-discharge (25°C) 3 months :91% of rated capacity
- Self-discharge (25°C) 6 months: 82% of rated capacity
- Self-discharge (25°C) 12 months: 64% of rated capacity
- Recommended operating temperature: 25 ± 3 °C
- Operating temperature range - discharge: -15 °C to 50 °C
- Operating temperature range - charging: -10 °C to 50 °C
- Operating temperature range - storage: -20 °C to 50 °C
- Equalizing charging voltage (25°C): 13.5VDC-13.8VDC
- Cyclic charging voltage (25°C): 14.4VDC-14.7VDC
- Maximum charging current: 75A
- Maximum discharge current: 1500A
- Design life (25°C): 8-10 years
