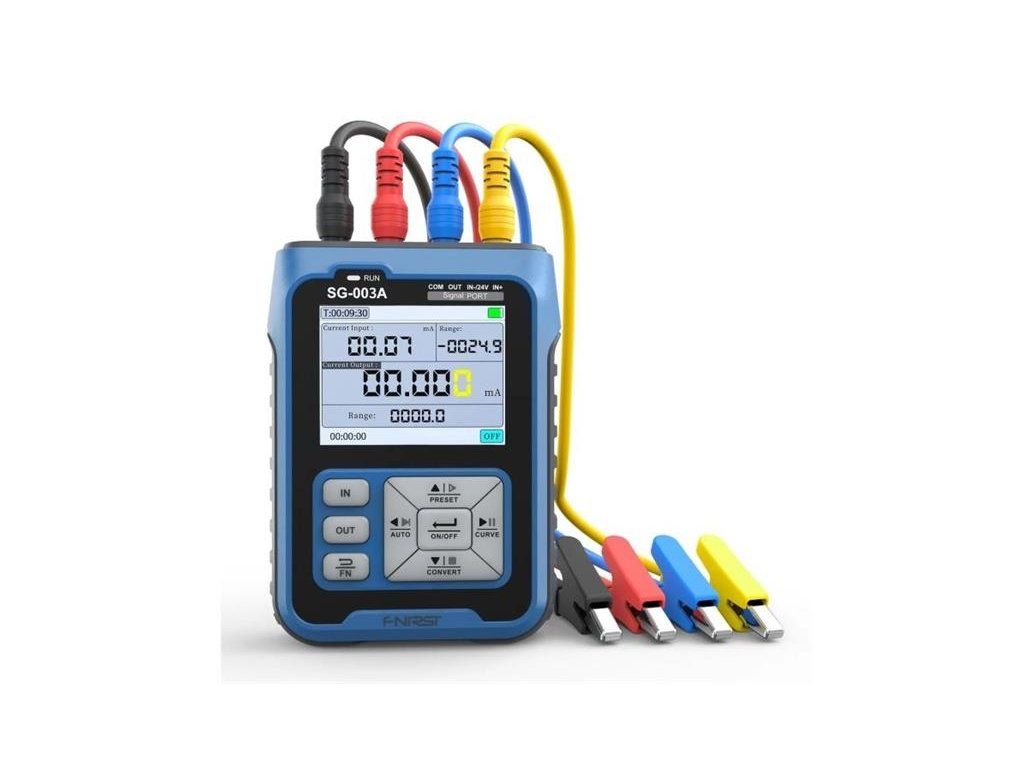

Generator FNIRSI SG-003A.

Product detailed description

The FNIRSI SG-003A digital signal generator is a versatile source of various types of signals for testing, measuring and diagnosing electronic circuits. It is also suitable for debugging industrial PLC, electronic valves, etc.


Technical parameters:

- frequency range: 0-500kHz
- types of waveforms: sinusoidal, square, triangular, sawtooth
- four preset groups: for quick output adjustment
- display: high resolution LCD
- input/output: signals can be converted to physical quantities
- automatic output adjustment: based on parameters, with three operating modes
- power supply: 3000mAh lithium battery (run time 26 hours, charging 4-6 hours)
- communication: RS485 with configuration software or PLC
- firmware update: Via USB (emulated U drive)
- sampling: adjustable, displays input/output signal trends over time
- size: 92mm72mm30mm
- weight: 165g

Contents of the package:
- signal generator FNIRSI SG-003A
- cables for testing: 4x
- USB charging cable
- user manual
