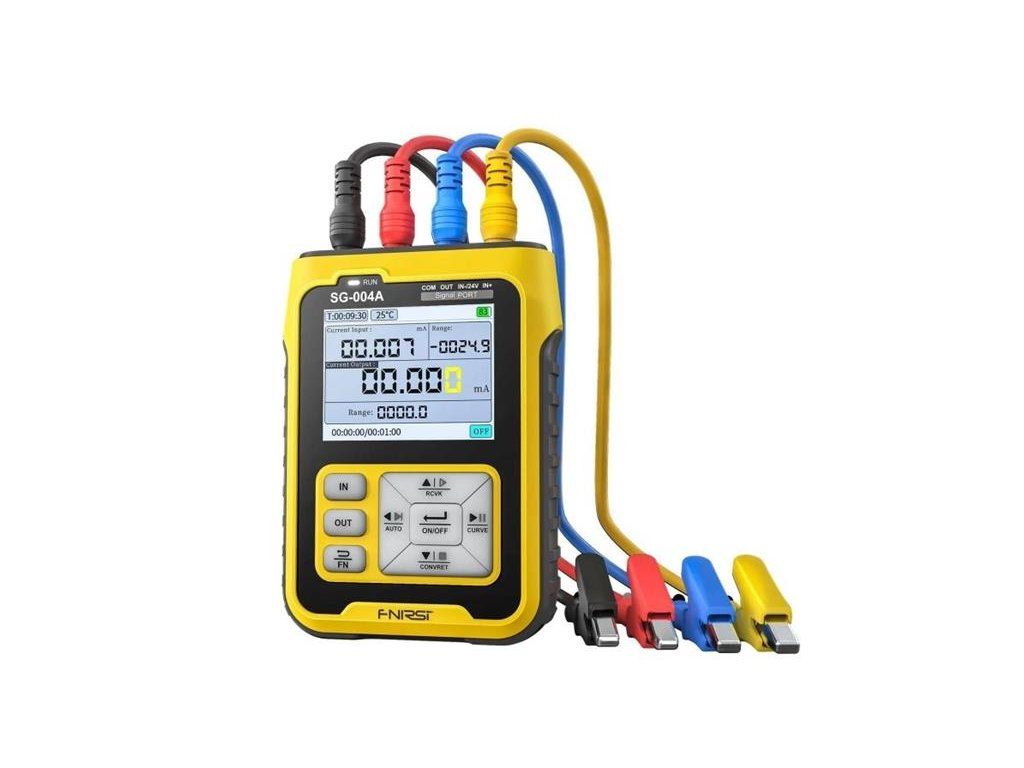

Generator FNIRSI SG-004A.

Product detailed description

The FNIRSI SG-004A signal generator is a powerful and versatile device for professional and hobby use in the field of electronics and electrical engineering.


Technical parameters:

- current measurement: Ranges: 0-24mA, Accuracy: ±(0.02%+0.003), Resolution: 0.001mA, Internal impedance: 100ohm
- voltage Measurement: Ranges: 0-24V, Accuracy: ±(0.02%+0.003), Resolution: 0.001mA, Internal Impedance: 500Kohm
- passive Measurement: Ranges: 0-24mA, Accuracy: ±(0.02%+0.003), Resolution: 0.001V, Internal Impedance: 100ohm
- 24V loop: Ranges: 0-24mA, Accuracy: ±(0.1%+0.005), Resolution: 0.01mA, Internal impedance: 100ohm
- frequency: Ranges: 0-9999Hz, Accuracy: ±2%, Resolution: 5 digits, Internal impedance: 1MKohm
millivolt: Ranges: -10~100mV, :0.0±3% accuracy +0.03), Resolution: 0.01 mV, Internal impedance: 2Kohm
- thermocouple (TC-S): Ranges: 0~1760°C, Accuracy: ±(0.2%+1), Resolution: 1°C, Internal impedance: 2Kohm
- thermocouple (TC-B): Ranges : 0~18100°C, Accuracy: ±(0.5%+1), Resolution: 1°C, Internal impedance: 2K
- thermocouple (TC-E): Ranges: 0~990°C, Accuracy: ±(0.2%+1), Resolution: 1°C, Internal impedance: 2K
- thermocouple (TC-K): Ranges: 0~1320°C, Accuracy: ±(0.2%+1), Resolution: 1°C, Internal impedance: 2K
- thermocouple (TC-R): Ranges: 0~1760°C, Accuracy: ±(0.3%+1), Resolution: 1°C, Internal impedance: 2K
- thermocouple (TC-J): Ranges: 0~1190°C, Accuracy: ±(0.3%+1), Resolution: 1°C, Internal impedance: 2K
- thermocouple (TC-T): Ranges: 0~390°C, Accuracy: ±(0.2%+1), Resolution: 1°C, Internal impedance: 2K
- thermocouple (TC-N): Ranges: 0~1290°C, Accuracy: ±(0.2%+1), Resolution: 1°C, Internal impedance: 2K
- thermocouple (WRe3/25): Ranges: 0~2320°C, Accuracy: ±(0.2%+1), Resolution: 1°C, Internal impedance: 2K
- Resistance: Ranges: 0~390ohm, Accuracy: ±(0.2%+1), Resolution: 0.1°ohm
- Pt100: Ranges: -200 - 650°C, Accuracy: ±(0.5%+1), Resolution: 0.1°C
- Cu50: Ranges: -20 - 15°C, Accuracy: ±(0.5%+1), Resolution: 0.1°C

Output signal:
- current: 0 - 24mA
- voltage: 0 - 24V
- frequency/PVM: 0 - 9999Hz
- 24 V loop: 0 -24mA
- mV/ thermocouple: -10 - 110mV
- thermal resistance: 0 - 390ohm

Input signal:
- current: 0 - 24 mA
- voltage: 0 - 24V
- frequency/PVM: 0 - 9999Hz
- mV/ thermocouple: -10 - 110mV
- thermal resistance: 0 - 400ohm

Other Specifications:
- power connector: USB-C
- input: 5/10W max.
- battery: 3.7V 3000mAh
- standby mode: 24h
- LCD: 2.4" colour
- dimensions: 77×21×112mm
- weight: 167g
