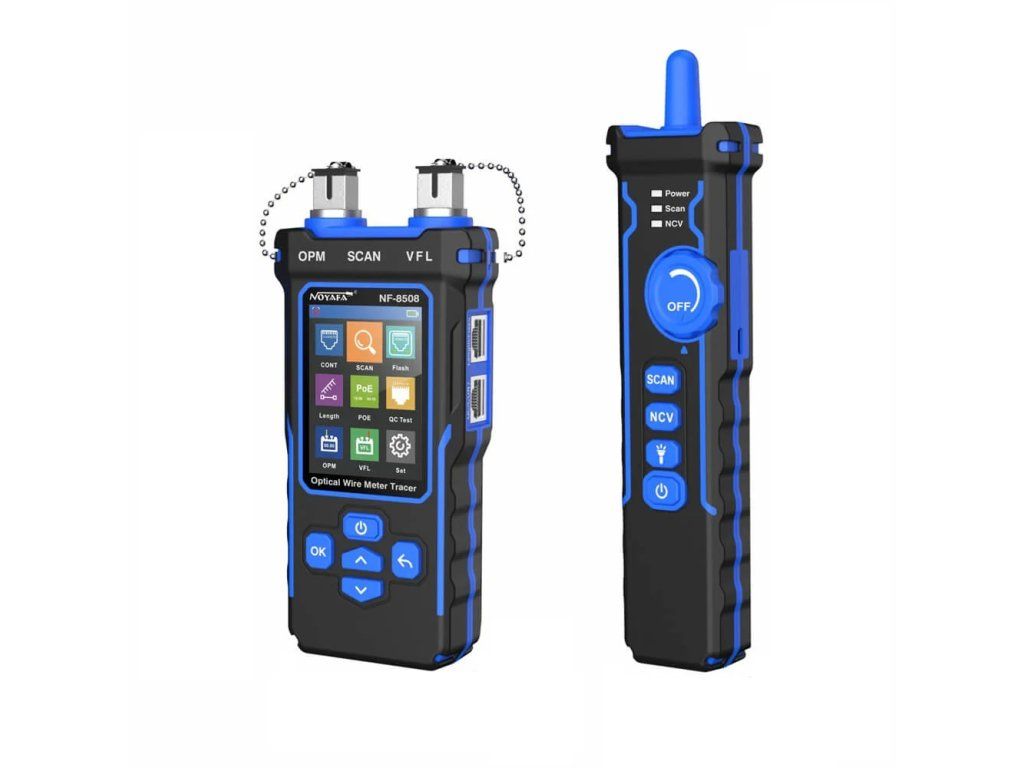

NOYAFA NF-8508 - Cable and Fiber Optic Tester, VFL, OPM, Cable Detector

Product detailed description

The Noyafa NF-8508 combination tester is one of the most versatile tools for diagnosing metallic and optical networks. It combines the functions of a UTP cable tester, line locator, PoE measurement, plus an integrated optical power meter (OPM) and visual fault locator (VFL). The color display and clear menu make operation easy even when working in the field. A Czech manual is included. The tester is suitable for network technicians, installers, ISPs, service technicians and advanced users who require reliable inspection of cabling and fiber optic routes. Key features - Optical Power Meter (OPM) and VFL - 7 wavelengths (850 / 1300 / 1310 / 1490 / 1550 / 1625 / 1650 nm), range -70 dBm to +10 dBm, 10 mW red laser for fiber optic inspection. - Digital and analog cable search - anti-interference filter, adjustable sensitivity, NCV (non-contact voltage detection) function. - Hidden cable detection - insulated probe tip for safer testing. - RJ45 wiring test - check for breaks, short circuits and crossed wires. - Cable length measurement - accurate CAT5 / CAT6 measurement up to 200m. - PoE test - detect power, pair connection and IEEE 802.3af / 802.3at standard. - Port Flash - quick port identification on an active network element. - QC crimp test - verify proper crimping of RJ45 connectors. - Color LCD display - 320 x 240 px with backlight. - Rechargeable Li-Pol battery with auto shut-off and backlight control. - RoHS, FCC, ISO 9001 certification. Technical parameters - Display: colour LCD 320 x 240 px, backlit - Supported cables: CAT5 / CAT6 - Surge protection: up to 60 V - SCAN frequency: 455 kHz - Port Flash: 10M / 100M / 1000M (Auto-Nego - RJ45: yes - QC check: yes - VFL power: 10 mW - POE test: yes - VFL test: yes - Port Flash: yes - OPM test: yes - PING: No - NCV: yes - Battery: Rechargeable Li-Ion - Manufacturer
