PWM solar controller EPever 30A 12/24V GoMate

Product detailed description

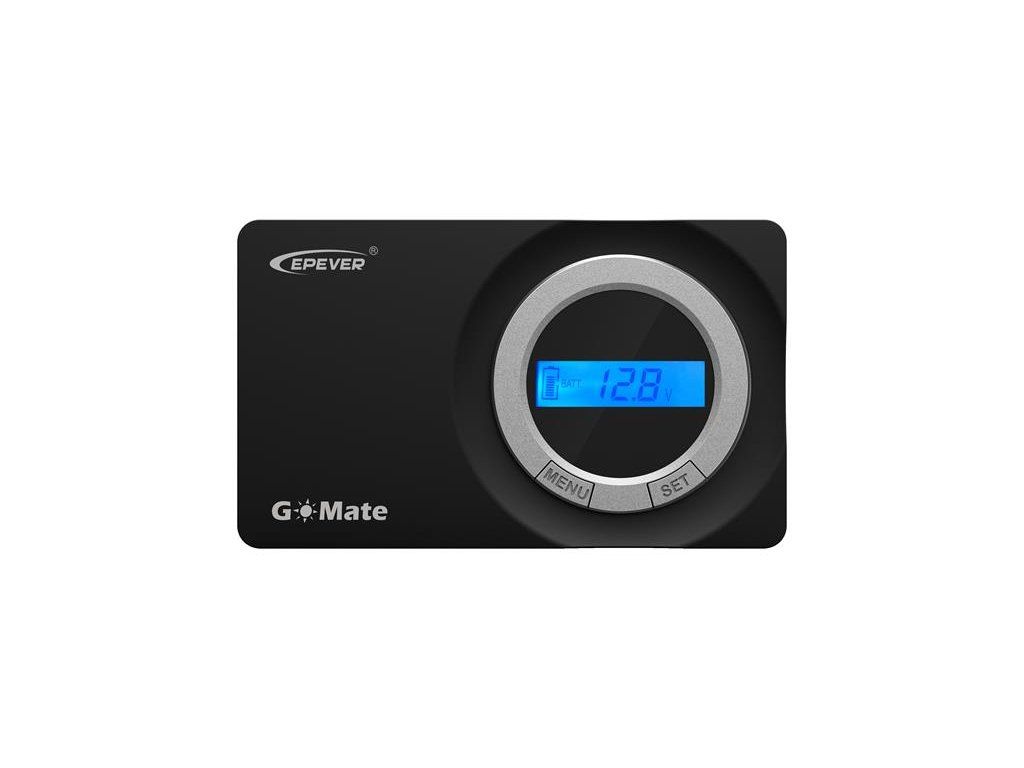

Solar controller PWM EPsolar 30A 12/24V Goma
PWM solar controller which is designed for aesthetically clean and integrated look especially for RVs, boats, etc.

Goma is a negative grounded solar controller that is designed for aesthetically clean and integrated look especially for RVs, boats, etc. Goma delivers a highly efficient PWM charging mode and also features a special LCD display that shows the real-time operating status of the system. Charging is controlled fully automatically, providing users with an easy to use method.

Its design is intended for small island solar systems with 12V solar panels (36 cells) for charging a 12V battery, or 24V solar panels (72 cells) for charging a 24V battery and a maximum charging current of up to 30A.

We recommend to operate with 12V solar panels with a capacity of 30 - 175Wp.

main functions
- Recessed and integrated design
- High quality and low failure rate of ST, TI and Infineon components to ensure product longevity
- Intelligent 3-phase PWM charging
- Battery type: sealed, gel, liquid and user adjustable charging profile
- Real-time energy statistics
- Battery temperature compensation function
- Digital LCD monitor for informative display of operating parameters and fault messages
- RS485 communication port with Modbus protocol and short-circuit protection for 5 V / 200 mA power supply
- Rated charging current at operating temperature without power reduction
- Extensive electronic protection
- Monitor and adjust parameters using PC software or APP

product parameters

- Dimensions: 178.5 × 105.5 × 48.3mm
- Weight: 310g
- Operating temperature: -30°C to +80°C
- Maximum size of connection cables: 16mm2
- Designed for indoor installations, wall mounting.

Please refer to the attached manual for detailed information.
