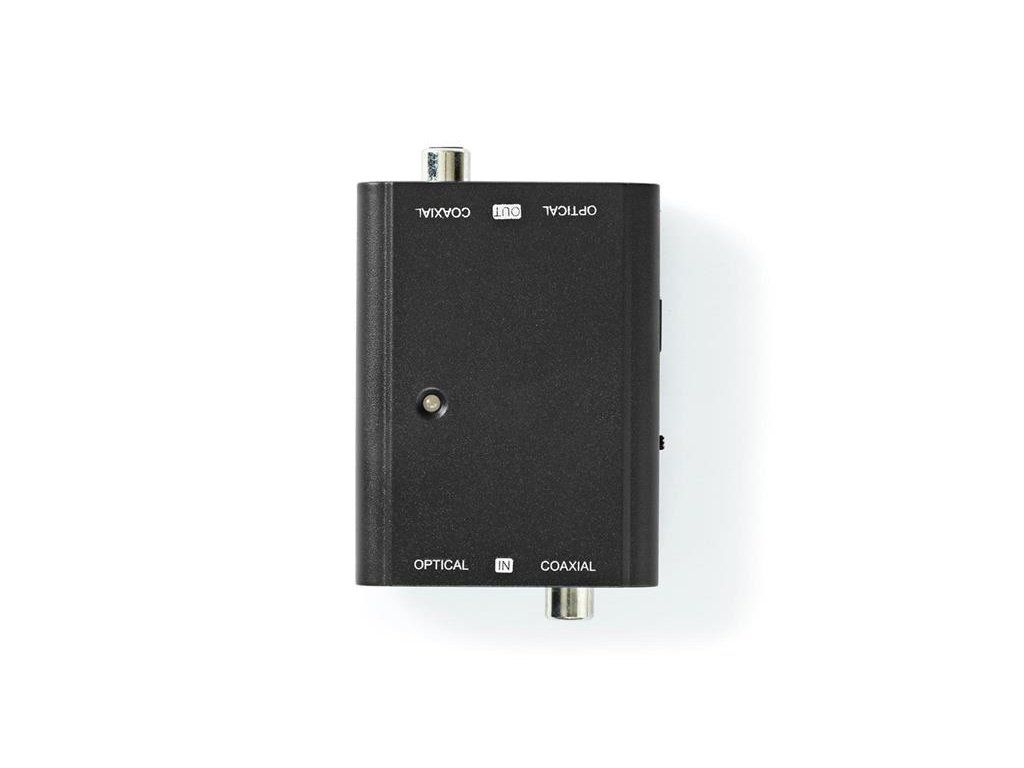

Converter 2x Toslink/2x Cinch NEDIS ACON2507BK

Product detailed description

Connect up to two devices, such as a Blu-ray player or game console, to a receiver or amplifier with this Nedis® 2-way digital audio converter. It converts digital Toslink to RCA audio signals and vice versa. It also functions as a transmitter for both Toslink and RCA. Comes with a DC-USB charging cable (adapter not included) for easy power supply of this digital audio converter.

- 2-way conversion - converts Toslink to RCA and RCA to Toslink
- Amplifies digital audio signals - keeps the audio signal in the digital domain virtually all the way to the connected device
- Compact design - for easy installation and use

Features:

- Data transmission direction: 2-way
- Colour: Black
- Material: ABS
- Power cable side A: USB
- Power supply type: USB power supply
- Power cable length: 1.80 m
- Width: 57.0 mm
- LED power-on indicator: yes
- Switch: yes
- Type of device: audio converter
- Supported bitrates: 44.1 kHz 24-bit
- 48 kHz 24-bit
- 96 kHz 24-bit
- Supported formats:DTS
- AAC
- MPEG-2
- PCM
- DTS5.1
- Dolby Digital
- Dolby Digital 5.1
- Control method: manual
- Input current: 600 mA
- Weight: 42.0 g
- Input connector: 1x TosLink Socket
- 1x S/PDIF (RCA): socket
- Output connector: 1x TosLink Socket
- 1x S/PDIF (RCA): socket
- Standby power consumption: 0.5 W
- Height: 23.0 mm
- Length: 84.0 mm
- Power consumption in operating mode: 1.0 W
- Depth: 50.5 mm
- Power input connector(s): DC 9 x 5.5 mm
- Power cable side B: DC 9 x 5.5 mm
- Input voltage: 5.0 VDC

Contents of the package:

- Audio converter
- Power cable 1.5 m DC-USB
- Quick Start Guide
