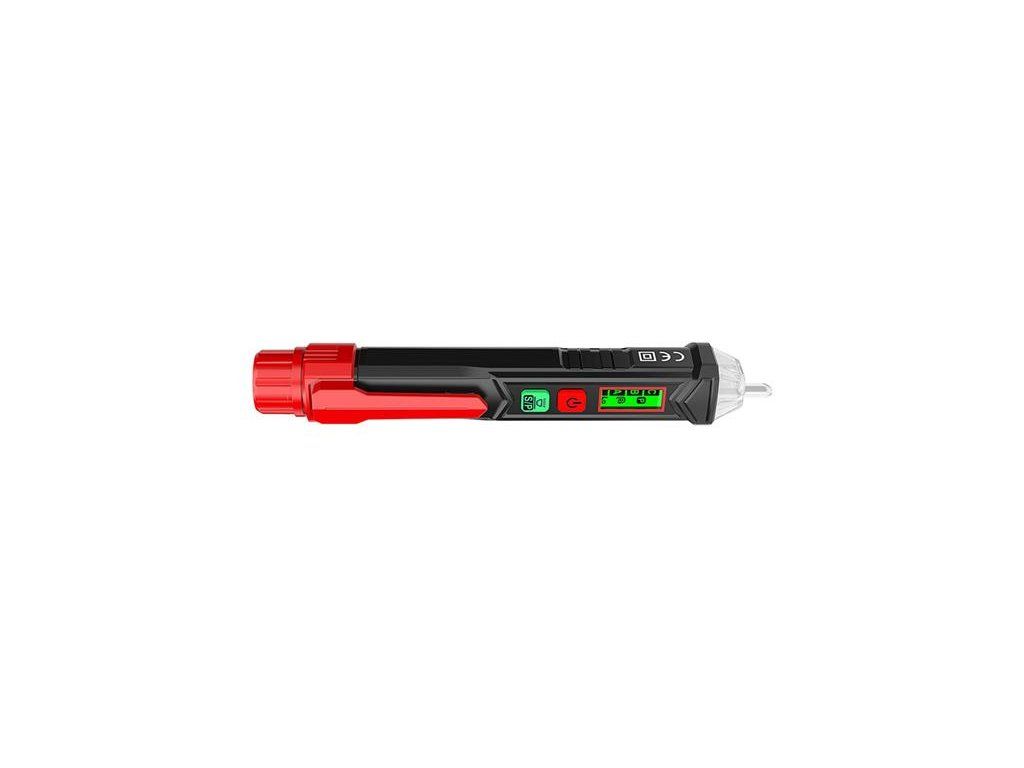

ERMENRICH Zing WT60 tester

Product detailed description

The Ermenrich Zing WT60 voltage tester is used for basic diagnostics of electrical equipment and networks. The instrument is equipped with a display with graphic scale. It alerts you to the results of its work with light and sound indicators. It is equipped with a built-in flashlight for working in dark or poorly lit areas. Battery power makes it easy to use the instrument in the field. The batteries are replaceable and the unit will alert you when the batteries are low.

The device is non-contact, which means that to detect the voltage you just need to put it against the wire, not touch it directly. This increases work safety. The instrument does not produce quantitative values of the measured voltage; its value is indicated by a graphic scale and the intensity of the light and sound indicators. Functionally, the instrument helps to identify hidden cables, points of interruption and to find the phase or neutral conductor.

The automatic shut-off function after extended periods of inactivity (> 5 minutes) saves battery power.

Non-contact voltage detection, phase detector
Light and sound indication, graphic scale on built-in display
Flashlight for working in a dark space
Battery powered; auto shut-off function to save battery power

Technical parameters:

Package size (LxWxH): 16x4x2 cm
Shipping weight: 0.06 kg
AC voltage measurement range: 12-1000 (high sensitivity), 48-1000 (low sensitivity)
Frequency range, Hz: 50-60
Overvoltage category: III (300V)
Screen function: graphic scale
Display backlight: yes
Sound alerts: yes
Light warning: yes
Flashing light: yes
Safety standards:EN61010-1-2-030, EN61326-1
