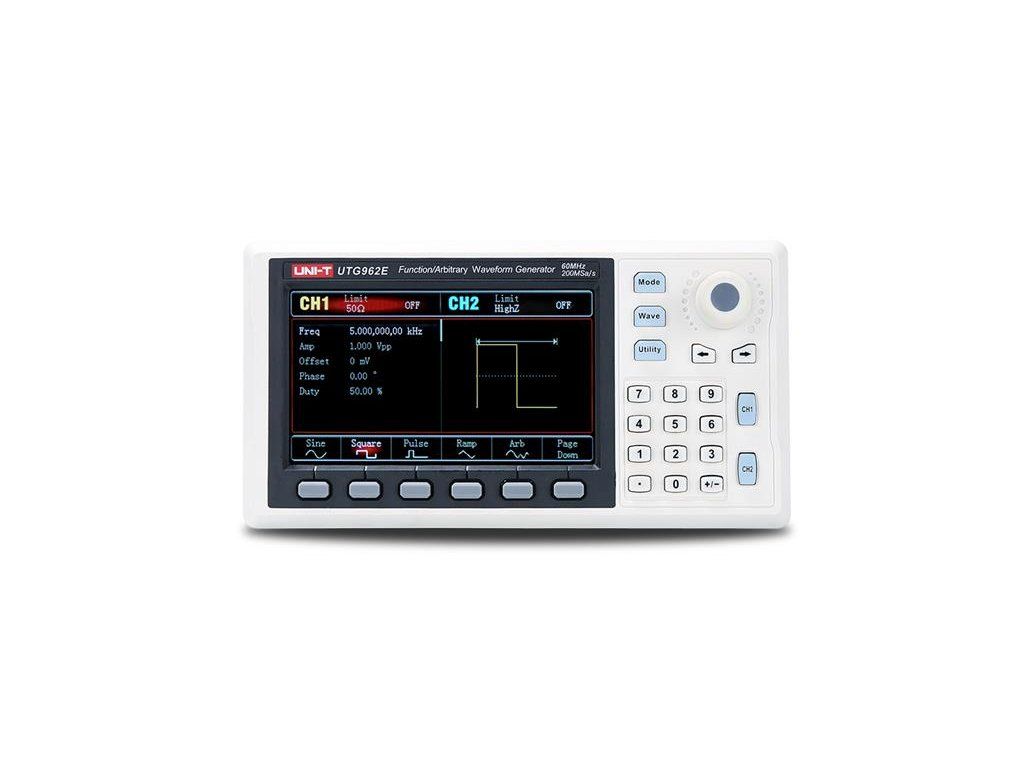

Generator UNI-T UTG962E

Product detailed description

We offer a 3-year warranty on this product.

The UTG962E arbitrary waveform generator from the UTG900E series is a dual-channel generator using direct digital synthesis technology to produce an accurate and stable arbitrary waveform signal with 1μHz resolution and low distortion. Modulation of signals with various modulations such as AM, PM, FM, FSK, etc. from internal or external source, linear and logarithmic frequency sweep is available.

The generator has a miniature size - in the palm of your hand, it is highly powerful, with excellent technical parameters and yet it is cost-effective.

The generator panel is ergonomically designed for easy operation. The 4.3 inch graphic LCD TFT display allows you to work much more efficiently and quickly.

The use of the generator is envisaged in teaching, design, testing, troubleshooting and repair of electronic and electroacoustic devices; testing of semiconductor components, etc.

It has a USB interface and powerful software to transfer data to your computer. It has an excellent price/performance ratio and many features.

You can download the English datasheet from the manufacturer's website:
http://unitrend.oss-cn-hongkong.aliyuncs.com/upload/file/20211016/UTG900E.pdf

or the English user manual:
http://unitrend.oss-cn-hongkong.aliyuncs.com/upload/file/20210529/UTG900E%20Series%20User%20Manua%20REV.2.pdf


Product Parameters :

- two-channel generator with digital signal synthesis DDS
- generation of sinusoidal signals with a frequency of 1μHz to 60MHz
- generation of rectangular signals with a frequency of 1μHz to 20MHz
- generation of various other waveforms (sine, rectangle, triangle, pulse, noise, DC, arbitrary)
- types of modulation of AM, FM, PM, FSK signals from internal and external source
- support for frequency scrambled signal output
- supports internal/external/manual trigger
- 6-bit high-precision frequency measurement of external TTL compatible signals in the range of 100mHz to 100MHz
- output signal amplitude up to 10Vpp at 50Ω impedance or up to 20Vpp in high impedance mode
- sampling rate 200MSa/s and 14 bit vertical resolution
- storage of random waveforms up to 4kpts points in length
- 24 types of power supply independent waveforms stored from the factory
- uSB interface with powerful PC software
- multi-function knob and numeric keypad for easy operation
- system Assistant
- 109mm (4.3 inch), 480 x 272 pixel TFT LCD colour display


Technical parameters :

- output channels: 2
- sampling rate: 200MSa/s
- output frequency: up to 60MHz
- frequency resolution: 1μHz
- vertical resolution: 14 bits
- memory depth: 8 kpts
- types and frequencies of generated signals:
sinusoidal: from 1μHz to 60MHz
rectangular: from 1μHz to 20MHz
ramp (sawtooth): from 1μHz to 400kHz
pulse: from 1μHz to 20MHz
arbitrary: from 1μHz to 10MHz
white Gaussian noise: 60MHz
DC signal offset (peak AC+DC): ±5V (50 Ω), ±10V (high resistance)
- minimum rise/fall time of the signal: typically < 20ns
- amplitude range for signals ≤ 10MHz: 1mVpp to 10Vpp; (50Ω)
- amplitude range for signals ≤ 60MHz: 1mVpp to 5Vpp; (50Ω)
- modulation types: AM, FM, PM, FSK, Sweep
- output impedance impedance: adjustable from 1Ω to 1kΩ, or High Z
- factory impedance setting: High Z
- output short-circuit protection: yes
- overall harmony. distortion (for DC to 20kHz, 1Vpp, typical value): <0.2%
- accuracy within 90 days: ±50 ppm (18℃ to 28℃)
- accuracy within 1 year: ±100 ppm (18℃ to 28℃
- display: colour TFT LCD 4.3", 480 x 272 pixels
- uSB Device Interface: yes
- power supply: DC 5V, 2A
- power consumption: max. 10W
- cooling: natural
- ambient working temperature: 0°C to +40°C
- working ambient humidity: < +35℃: ≤ 90%RH, +35℃ to +40℃: ≤ 60%RH
- working altitude: max. 2000m
- weight (net): 0,33kg
- weight (gross): 0,77kg
- dimensions: 172 x 90 x 68mm


Contents of the individual package :

- function generator UTG962E: 1pc
- power adapter AC/100 to 240V//DC/5V/2A: 1pc
- uSB interface cable (UT-D14): 1pc
- bNC cable (UT-L02): 1pc
- bNC-BNC cable 1m (UT-L45): 1pc
- user manual: 1pc


MANUFACTURER : UNI-TREND
www.uni-t.cz
