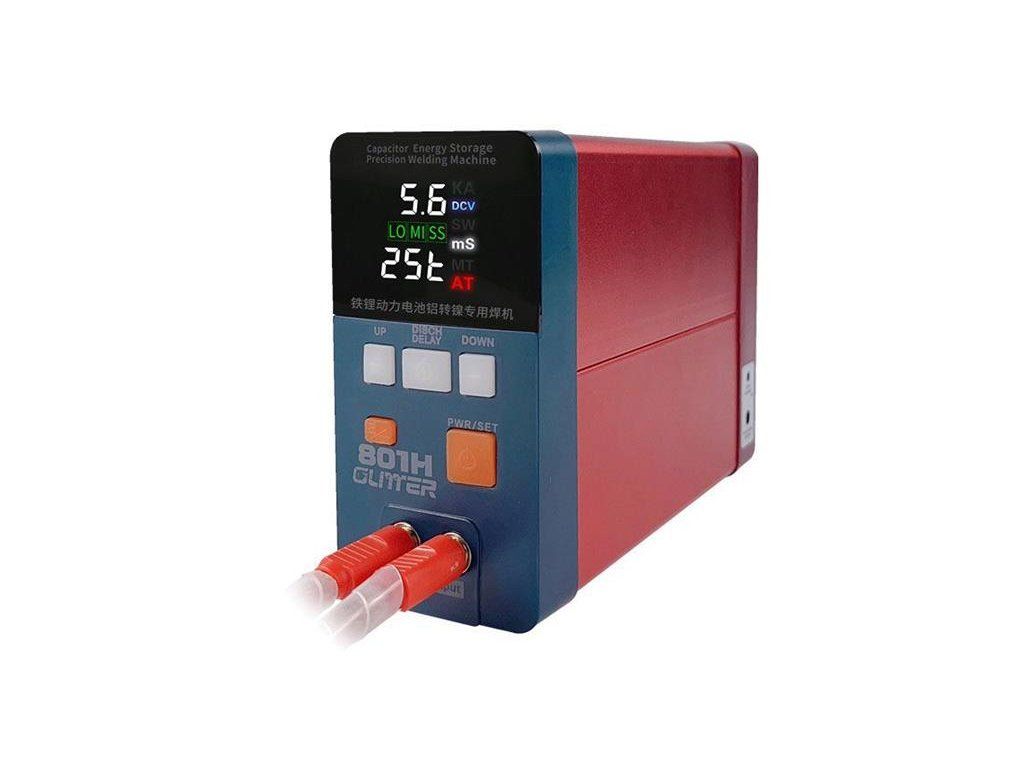

GLITTER 801H battery spot welder

Product detailed description

The GLITTER 801 is a capacitor spot welder for spot welding of battery packs into battery packs using nickel clips. A welding pen or integrated arm can be attached to the station. Compared to conventional transformer welders, it offers lower weight and dimensions and higher pulse energy. The welder also allows the welding of nickel strips on an aluminium substrate.


Technical parameters.

- power supply: 15V/2-3A, 230VAC adapter included
- first charging time: 5-15min
- output welding voltage: 5.6-6V
- output welding current: 500-3500A
- max. welding power: 19,8kW
- max.welding energy: 238J
- pulse time: 0.2-20ms
- welding power setting range: 0-99t
- welding mode: AT/MT
- regeneration time: 100-500ms
- nickel strip thickness: 0.05-0.45mm
- size: 120×65×180mm
- weight: 2,5kg

Contents of the package:
- welding machine GLITTER 801H
- 2× welding pen
- control pedal
- welding arm with tips
- 4× spare tips
- 20× nickel pins 0,15×8×100mm
- 20× nickel pins 0,15×10×100mm
- al-Ni joint sample
