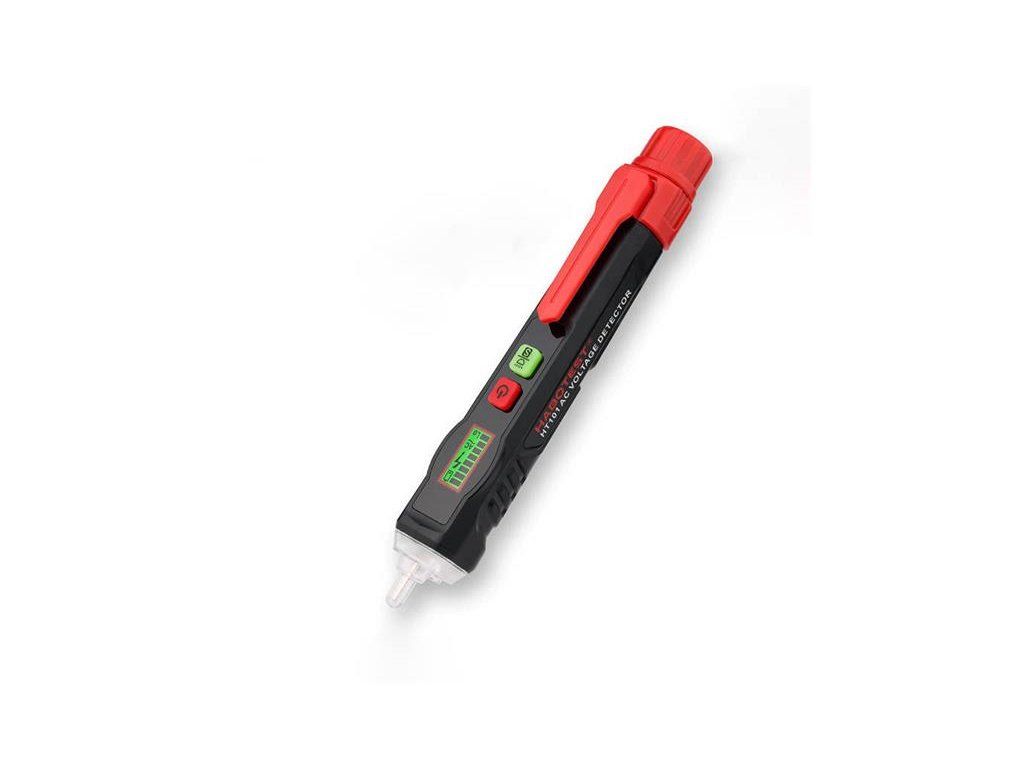

HABOTEST HT101 tester

Product detailed description

The Habotest non-contact voltage and phase tester provides accurate measurement and safe use. It is equipped with an LCD display and a button to adjust the sensitivity - its use is very convenient. It offers break point control and active and inactive cable detection and automatically shuts off after 3 minutes of inactivity. The built-in LED flashlight will make your work easier. The device is powered by 2 AAA 1.5 V batteries.

Precise measurement
The HT101 provides accurate non-contact measurement. Its sensitivity can be adjusted using the built-in button. It measures voltages in the range of 12-1000 V and 48~1000 V. The detector also detects breakpoints, making it suitable for many applications.

Active and inactive cable detection function
The detector intelligently detects active and inactive cables and features dual visual and audible alarms. Simply place the device against the surface of the cable. A green display and a slow beep indicate an inactive cable. A red display and very fast alarm signal an active cable.

Designed with user comfort and safety in mind
The clear LCD display gives you key information. The HT101 also has a built-in LED flashlight. Thanks to it, you can use the device even in dark rooms. You also don't have to worry about the battery draining too quickly if you forget to turn the sensor off - it automatically stops working after 3 minutes of inactivity. In addition, an indicator light alerts you when the battery is low.

Small, practical, easy to carry
The device is compact, portable and convenient to use. The easily accessible buttons make it quick and easy to switch the detector on and off and adjust the sensitivity. A built-in clip allows the HT101 detector to be attached to, for example, clothing, a bag or a backpack, making it easy to transport.

Technical parameters:

Voltage detection range:High sensitivity:AC 12-1000V; Low sensitivity:AC 48-1000V
Shape of the collector: round
Frequency: 50/60 Hz
Alert type: sound and light
Non-contact phase detection:Yes
Backlight: double, red and green
Testing the operation of the cable: Yes
Signal strength display: four-level bar graph
Signal strength display method: sound: slow to fast; backlight: green to red; bar graph: lowest to highest
Flashlight: Yes
Auto Power Off: Yes, after 3 minutes of inactivity
Low battery indicator: yes
Power: 2x AAA 1.5 V battery
Dimensions: 157 x 23 x 18.8 mm
Safety: EN61010-1, -2-030; EN61326-1, CAT III 1000V
