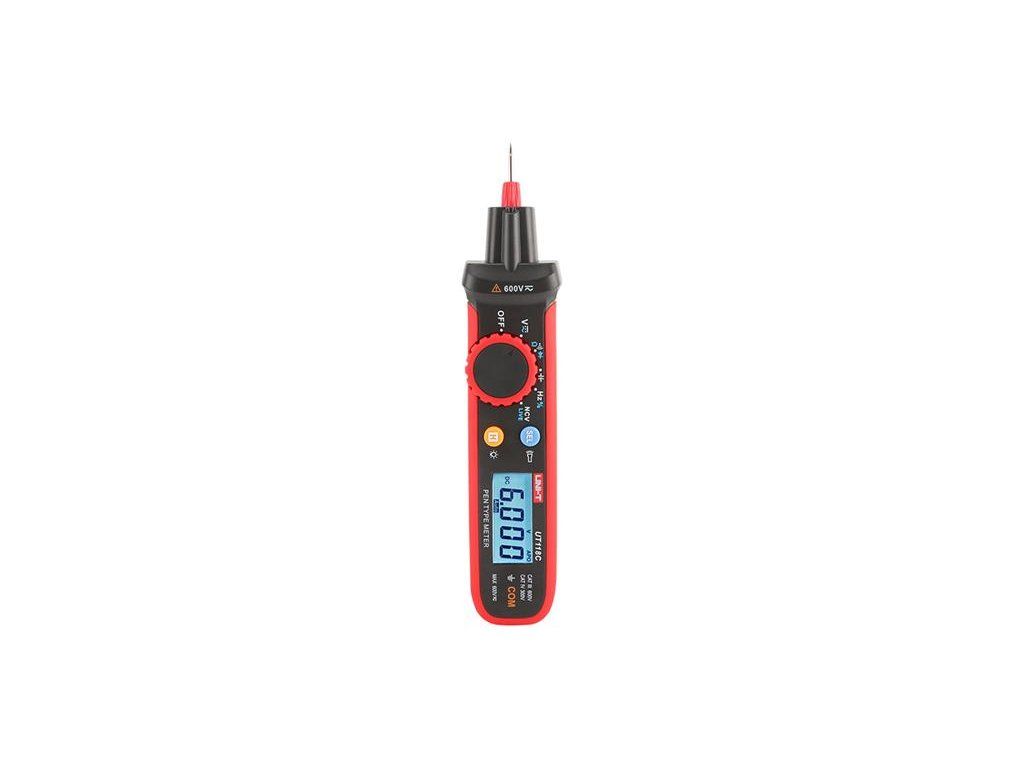

Multimeter UNI-T UT118C - PEN TYPE

Product detailed description

We offer a 3-year warranty on this product.

A miniature digital multimeter with an interesting and practical design, the UT118C Pen-type digital multimeter is a lightweight and durable instrument that boasts a True RMS measurement function, allowing for accurate readings. With the ability to measure voltages up to 600V AC/DC, a wide range of resistance, capacitance and gold-plated measuring cables with special prongs for versatility and safe operation (CAT III 600V and CAT IV 300V), it is an excellent and cost-effective choice for do-it-yourselfers when repairing household appliances.
The meter is equipped with the NCV function and uses a red flashing LED and buzzer to instantly indicate live conductors, ensuring greater safety when inspecting electrical equipment.


Product parameters:

- True RMS
- 6000 display
- CAT III 600V/CAT IV 300V
- 600 V DC/AC voltage measurement
- large resistance measurement: 60MΩ
- large capacitance measurement: 60mF
- two-stage tip length adjustment
- gold-plated measuring wires with special tips, hardened phosphor bronze
- certification:CE (EMC, LVD), ROHS


Technical parameters:

- AC voltage (V): 6 V / 60 V / 600 V ±(1.%+3)
- DC voltage (V): 6 V / 60 V / 600 V ±(1%+4)
- resistance (Ω):
600 Ω / 6 kΩ / 60 kΩ / / 600 kΩ ±(1%+3)
6 MΩ ±(1.5%+5)
60 MΩ ±(2.5%+5)
- capacity:
600.0 nF / 6 μF / 60 μF / 600 μF ±(3.5%+8)
6 mF ±(5.0%+9)
60 mF ±(10.0%+9)
- frequency: 99.99 Hz / 999.9 Hz / 9.999 kHz / 99.99 kHz / 999.9 kHz ±(0.01%+5)
- max. display: 6000
- rotates: 0.1% to 99.9%
- nCV test / LIVE
- True RMS
- diode test
- resistance test
- automatic range
- hTN LCD display 36 x 15 mm / indicator -dual color
- power: AAA 1.5V battery × 1 (included)
- product dimensions: 182.5 mm x 38.0 mm x 38.5 mm
- product colour: grey + red
