Multimeter UNI-T UT181A

Product detailed description

Multimeter UNI-T UT181A

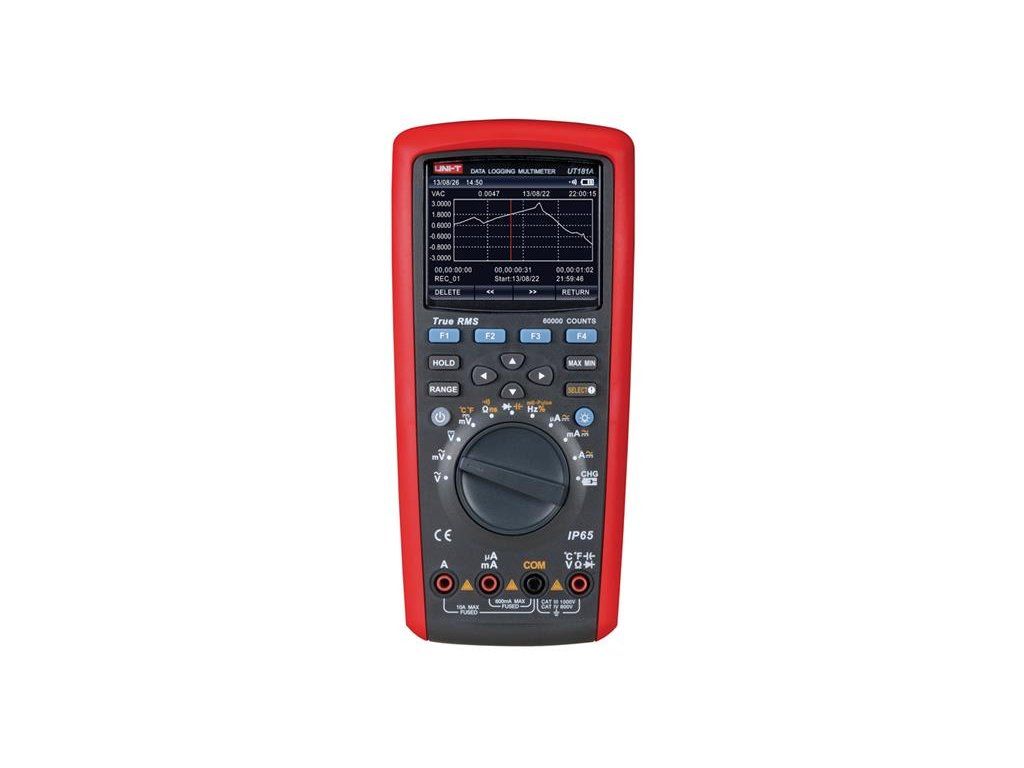

The UNI-T UT181A multimeter is an intelligent handheld multimeter with automatic or manual range switching that measures effective (RMS), maximum, minimum or average values. The instrument ranks in a higher class, excels in quality design and reliability and is also suitable for industrial use. The waterproof and dustproof rating is in the IP65 category. The display is a backlit graphic LCD type, with a maximum resolution of 4 5/6 digits, the maximum displayed value is ± 60000. The multimeter can measure AC/DC voltages and currents, resistance, diode test, continuity test, capacitance measurement, frequency, inverting, temperature, conductivity, comparative measurement, relative value measurement, peak detection and data logging up to 20000 data. The instrument allows data to be stored on a PC by connecting via USB adapter with optical decoupling, or via Bluetooth. The display includes an analogue display - bargraph with 61parts. The multimeter includes an internal clock that displays the time and date, which can be automatically assigned to stored samples of measured values at intervals of 1sec to 1h, including the time during which it should be stored (up to days). Possibility to include a low pass filter for measurements on inverters and generators. Possibility of dual-channel temperature measurement. Fusing of the current ranges is performed by tubular fuses (10A range by FF 10A H/1000V fuse (10 x 38mm); mA/µA range by FF 800mA H/600V fuse (6 x 32mm)). The instrument can test its own fuses (without opening the instrument). The power supply of the multimeter is made by a lithium battery 7,4V/2000mAh . Included in the package are measuring cables with spikes in safety category CAT III 1000V and CAT IV 600V.

Product Parameters :

- fully complies with IEC/EN61010-1 standard, and has double insulation
- cAT III 1000V - indoor electrical installations including three-phase distribution
- categorized CAT IV 600V - outdoor el. installations (fuses, beginning of indoor installation)
- display type color (64K color), graphic TFT LCD 3.5 "with 320 x 240 pixels dot matrix
- the maximum display is 60000,
- display display for frequency measurement 60000
- display for capacity measurement 6000
- setting ranges automatically or manually
- high precision
- aC voltage (AC) measurement ranges - 60 mV/1000 V for frequencies 45Hz to 100kHz
- aC current (AC) measurement ranges - 600 uA / 10 A for frequencies 45Hz to 10kHz
- dC voltage (DC) measurement ranges - 60 mV / 1000 V
- dC current (DC) measurement ranges - 600 uA / 10 A
- measuring ranges AC + DC (AC voltage with DC component) - 60mV/1000V
- measuring ranges AC + DC (AC current with DC component) - 600μA/10A
- resistance measurement ranges - 600 Ω/60 MOhm
- capacitor capacitance measurement ranges - 6.00 nF/60.00 mF
- frequency measurement ranges 60 Hz to 60 MHz
- rectangular signal generator 0.5Hz to 4800Hz
- measuring range of 10% to 99% (10Hz to 2kHz)
- pulse width measurement range 0 to 250.0ms
- conductivity measuring range 60nS
- temperature measuring range -40°C~1000°C, (with supplied K-type nickel-chromium-nickel-silicon thermocouples only up to +230°C)
- analogue scale Bargraf, 61 parts
- TRMS, measurement of effective voltage values of AC voltages and currents
- during AC voltage measurement, the frequency or voltage magnitude can also be measured on the secondary display
- on the secondary display it is also possible to measure the AC component superimposed on the DC voltage
- datalogging 20000 values
- relative measurement mode
- possibility to measure in logarithmic values dBV and dBm, with simultaneous display of the voltage on the secondary display in V
- the possibility to set the storage of samples of measured values at intervals of 1sec to 1h, including the time during which it should be stored (up to days)
- mAX and MIN peak measurement with 1ms response
- indication of bad wiring
- low battery indication
- automatic shutdown (sleep when idle, idle time can be set in MENU)
- protection of voltage inputs against overload
- protection of current inputs by fast fuses
- input impedance 10MΩ
- test of diodes and semiconductor junctions with 0 to 3V
- battery power supply LiIon 7,4V / 2000mAh
- uSB cable with converter supplied, software can be downloaded from the manufacturer's website: https://meters.uni-trend.com/product/ut181a/
- bluetooth adapter UT-D08 can be purchased
- dC charging power supply supplied
- it is also possible to measure in an elmag. field with an intensity of 1V/m with an additional error of 5%


Technical parameters :
( Accuracy is defined at 23°C ± 5°C and relative humidity less than or equal to 75%, calibration once a year is recommended )

- DC voltage measurement ( input impedance is 10MΩ ) :
          ( Range / Resolution / Accuracy )
60.00 mV / 1µV / ± 0.025 % + 20
600.00 mV / 10µV / ± 0.025 % + 5
6.0000 V / 0.1 mV / ± 0.025 % + 5
60.000 V / 1mV / ± 0.025 % + 5
600.00 V / 10mV / ± 0.03 % + 5
1000.0 V / 0.1V / ± 0.03% + 5

- AC voltage measurement ( input impedance approx. 10MΩ ; 45Hz to 1kHz ; 1kHz to 10kHz ; 10kHz to 20kHz ; 20kHz to 100kHz ) :
                   ( Range / Resolution / Accuracy up to 1kHz / Accuracy up to 10kHz / Accuracy up to 20kHz / Accuracy up to 100kHz )
60.00 mV / 1µV / ± 0.6% +60 / ± 1.2% +60 / ±3% +60 / ±4% +60
600.00 mV / 10µV / ± 0.3% +30 / ± 1.2% +40 / ±3% +40 / ±4% +40
6.0000 V / 0.1 mV / ± 0.3% +30 / ± 1.2% +40 / ±3% +40 / ±4% +40
60.000 V / 1mV / ±0.3% +30 / ±1.2% +40 / ±3% +40 / ±4% +40
600.00 V/10mV/±0.3% +30/±1.2% +40/±3% +40/guideline only
1000.0 V / 0.1V / ±0.6% + 30 / ±3% + 40 / ±6% + 40 / indicative only


- AC+DC voltage measurement ( input impedance approx. 10MΩ ; 45Hz to 1kHz ; 1kHz to 10kHz ; 10kHz to 35kHz ) :
                  ( Range / Resolution / Accuracy up to 1kHz / Accuracy up to 10kHz / Accuracy up to 35kHz)
60.00 mV / 1µV / ±1% +80 / ±3% +40 / ±6% +60
600.00 mV / 10µV / ±1% +80 / ±3% +40 / ±6% +40
6.0000 V / 0.1 mV / ±1% +80 / ±3% +40 / ±6% +40
60.000 V / 1mV / ±1% +80 / ±3% +40 / ±6% +40
600.00 V / 10mV / ±1% +80 / indicative only / indicative only
1000.0 V / 0.1V / ± 1.2% + 80 / indicative only / indicative only

- DC current measurement :
( Range / Resolution / Accuracy )
600.0 μA / 0.01 μA / ± 0.25% + 20
6000.0 μA / 0.1 μA / ± 0.25% + 2
60.000 mA / 1μA / ± 0.7 % + 2
600.0 mA / 10μA / ± 0.15% + 2
6.000 A / 0.1mA / ± 0.5% + 3
10.000 A / 1m A / ± 0.5 % + 2


- AC current measurement ( 45Hz to 1kHz ; 1kHz to 10kHz ) :
( Range / Resolution / Accuracy up to 1kHz / Accuracy up to 10kHz)
600.00 μA / 0.01 μA / ± 0.6 % + 40 / ± 1.2 % + 40
6000.0 μA / 0.1 μA / ± 0.6 % + 20 / ± 1.2 % + 40
60.000 mA / 1µA / ± 0.6 % + 40 / ± 1.2 % + 40
600.00mA / 10µA / ± 0.6 % + 20 / ± 1.2 % + 40
10.000A / 1m A / ±1% + 2 / ±3% + 40

- AC+DC current measurement ( 50Hz to 1kHz ; 1kHz to 10kHz ) :
         ( Range / Resolution / Accuracy up to 1kHz / Accuracy up to 10kHz )
600.00 μA / 0.01 μA / ± 0.8 % + 40 / ± 2 % + 40
6000.0 μA / 0.1 μA / ± 0.8 % + 20 / ± 2 % + 40
60.000 mA / 1µA / ± 0.8 % + 40 / ± 2 % + 40
600.00mA / 10µA / ± 0.8 % + 20 / ± 2 % + 40
10.000A / 1m A / ± 1.2 % + 20 / ± 3 % + 40

- Measurement of resistance and conductivity :
           ( Range / Resolution / Accuracy )
600.00 Ω/0.01 Ω/V REL mode: ±0.05%+10
6.0000 kΩ / 0.1 Ω / ± 0.05 % + 2
60.000 kΩ / 1Ω / ± 0.05 % + 2
600.00 kΩ / 1Ω / ± 0.05 % + 2
6.0000 MΩ / 0.1kΩ / ± 0.3% + 10
60.000 MΩ / 1 kΩ / ± 2 % + 10
60.00nS / 0.01nS / ± 2% + 10 ( S = Siemens unit )

- Capacitance measurement of capacitors :
                   ( Range / Resolution / Accuracy )
6.000 nF / 1 pF / ± 3.0% + 10
60.00 nF / 10pf / ± 2.5% + 5
600 nF to 600 µF / 0.1 nF to 0.01 µF / ±2% + 5
6 mF / 1 µF / ± 5% + 5
60 mF / 10 µF / Not specified

- Measurement of frequency, alternans and period ( pulse width ) :
                  &       ( Range / resolution / accuracy )
60.000 Hz / 0.001 Hz / ± 0.02 % + 8
600 Hz to 60 MHz / 0.01 Hz to 0.001 MHz / ± 0.01 % + 5
10% to 90% ( 10Hz to 2kHz ) / 0.01% / ±1.2% + 30
250ms/1µs to 0.1ms ±1.2% + 30



- display type: colour (64K colour) TFT LCD, with 320 x 240 px dot matrix
- number of digits : 60000
- analog line : 61 segments
- power supply : LiIon battery 7,4V / 2000mAh
- fusing range 10A with fuse FF 10A H/1000V (10 x 38mm)
- mA/uA range fusing with FF 800mA H/1000V fuse (6 x 32mm)
- dimensions of the instrument : 225 x 103 x 59 mm
- weight : approx. 638 g (including battery)
- working temperature : -20°C to 50°C
- working relative humidity at 0°C to 30°C less than or equal to 80%; at 30°C to 40°C less than or equal to 75%; at 40°C to 50°C less than or equal to 45%;
- working altitude 0 to 2000m
- storage temperature : - 30°C to 60°C
- bluetooth adapter UT-D07 can be purchased for transferring readings to a PC
- the instrument meets the standards :
      cETLus, CAT III 1000V, CAT IV 600V, double insulation, overload protection for voltages greater than 1000V
     EN 61326-1:2013; EN 61326-2-2:2013
     EN 61010-1:2010; EN 61010-2-030:2010; EN 61010-2-033:2012
      Conforms to UL STD .:61010-1, 61010-2-030
      Certified by CSA STD. C22.2 Nos. 61010-1, 61010-2-030, 61010-2-033

- Manufacturer
- www.uni-t.cz


Contents of the package:

- multimeter UT181A with storage case
- liIon battery 7,4V / 2000mAh - in the device
- fuse F1 : FF 800 mA H 1000 V (6 x 32mm) - in the instrument
- fuse F2 : FF 10 A H 1000 V (10 x 38mm) - in the device
- 1x USB cable with opto-el. converter
- 2 x K-type thermocouple (nickel-chromium-nickel-silicon) up to + 230 °C)
- 1 pair of measuring cables with spikes in CAT III 1000V, CAT IV 600V
- 1x temperature connector
- 1x charging connector
- dC charging source
- instructions for use Czech, Slovak and English
