Paint Thickness Tester ST-156

Product detailed description

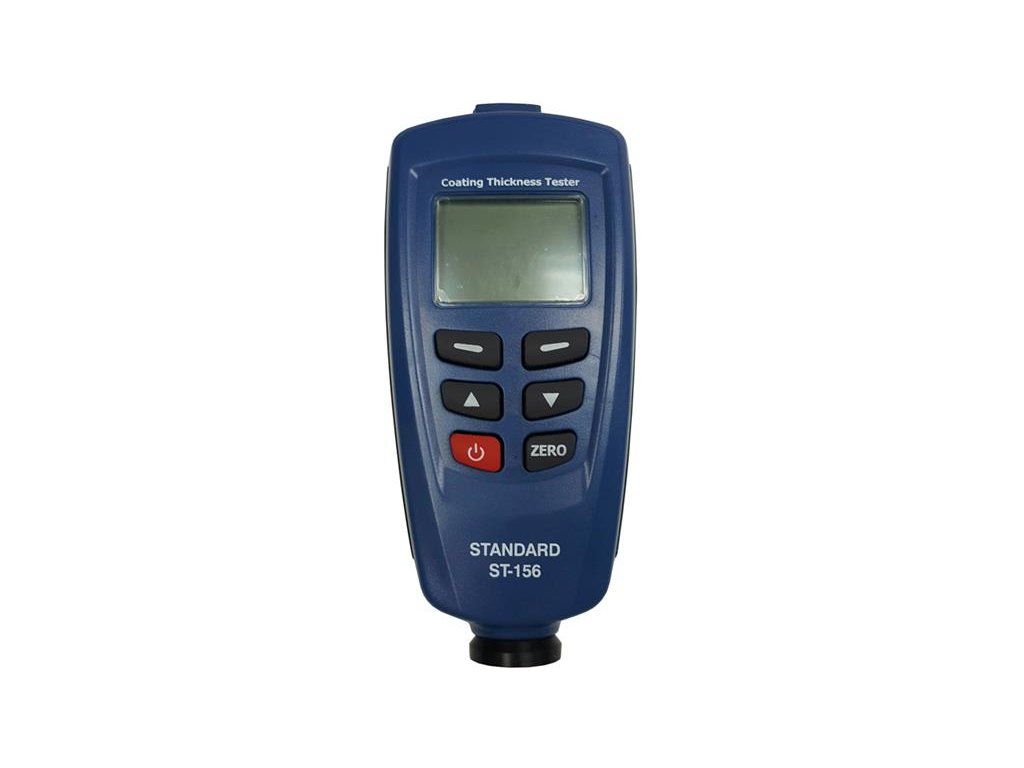

Paint Thickness Tester ST-156
This handheld measuring device can measure coating thickness on most substrates in use. It is designed for non-destructive, fast and accurate measurement of coating thickness. The instrument is designed for corrosion protection applications, it is suitable for manufacturers and their customers, office and professional consultants, paint shops, plating companies, chemical, automotive, aerospace and marine, light and heavy engineering.
The meter has its own memory, which can store 320 measured data, which can be transferred via the supplied software to a PC using the USB interface.
The instrument has an automatic choice of the measurement method when applied to the substrate (magnetic induction for steel (magnetic) substrates and the eddy current principle for non-magnetic substrates)


Product parameters:

- measurement of surfaces and varnishes:
- non-magnetic lacquer on steel substrate
- insulating varnish on non-ferrous metals
- non-ferrous plating on insulating substrates
- control by means of a clear menu system
- two measuring modes: individual and group
- functions: average value, max., min., quantity of measured values, standard deviation
- one or two point simple calibration
- memory for 400 data (80 individual and 320 group data)
- easy deletion of data
- adjustable warning when the set minimum or maximum value is exceeded
- low battery indicator
- USB connection to PC, operating software
- backlit LCD display - readable even in the dark


Technical parameters:

- type of built-in probe: F/NF
- measuring principle: Magnetic Induction / Eddy Current Principle
- Range: 0 - 1250um
  Measurement tolerance:
- probe F: 0 - 850um (+ -3% + 1um), 850 - 1250 (+ -5%)
- Probe NF: 0 - 850um (+ -3% + 1.5um), 850 - 1250 (+ -5%)
- accuracy: 0 - 50um (0.1um), 50 - 850um (1um), 850 - 1250um (0.01 mm) - probe F
- minimum radius of curvature: 1.5 (F), 3mm (N)
- minimum diameter of measured area: 7mm (probe F), 5mm (probe N)
- basic critical substrate thickness: 0.5mm (F), 0.3 (N)
- operating temperature: 0 - 40 °C
- operating relative humidity: 20 - 90%
- dimensions: 113,5 x 54 x 27mm
- weight: 110g
- power supply: 2 x AAA 1.5 V batteries

- Accessories: power supply battery, USB cable, software CD, calibration steel plate, calibration aluminum plate, carrying case
