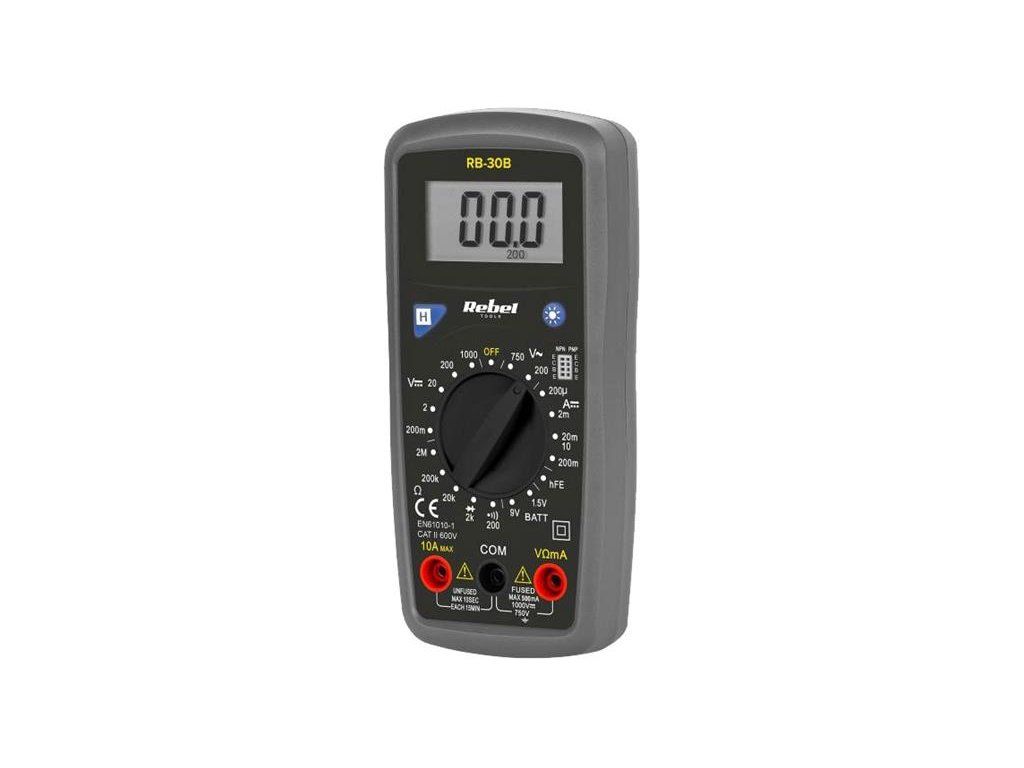

REBEL RB-30B multimeter

Product detailed description

REBEL RB-30B multimeter
The REBEL RB-30B universal meter is a reliable measuring instrument, ideal for professionals and DIYers. Thanks to its wide measuring possibilities and ergonomic design, it enables accurate diagnosis of wiring and electronic equipment in both domestic and professional applications.

Precise measuring ranges
The REBEL RB-30B offers wide measurement ranges for various electrical parameters. The measurement of direct current (DC) voltages from 200 mV to 1000 V and alternating current (AC) up to 750 V allows working with a wide variety of circuits. The meter also supports measurement of DC current up to 10 A and resistance up to 2 MOhm, making it a versatile tool for analysis and repair of electrical equipment. In addition, diode testing, battery testing (1.5V and 9V), hFE transistor checking and circuit continuity function enhance its functionality.

Functional and easy to use
The RB-30B features a backlit display that makes it easy to read results even in low light conditions. The freeze last reading function allows you to stop the measurement, which is especially useful in situations requiring data analysis. The manual change of the measurement range gives the user full control over the accuracy of the measurement, while the low battery indicator ensures continuous operation.

Ergonomic design and mobility
The REBEL RB-30B features compact dimensions (160 x 76 x 32 mm) and a lightweight design (150 g), making it easy to carry and use anywhere. The foldable stand allows the meter to be placed stably on the work surface, which increases the comfort of use when working for long periods of time. Powered by two AAA batteries, the meter is energy efficient and reliable in operation.

Technical parameters:

- Backlit display
- Manual change of measuring ranges
- Expandable stand
- Freezing the last data
- Low battery indicator
- Polarity: automatic
- Sampling rate: 2 times per second
- Maximum deduction: 1999
- Display size: 45 x 21 mm
- Operating temperature: 0°C~40° at humidity < 80%
- Storage temperature: -10°~50°C at <85% humidity
- Power: 2x AAA battery
-Dimensions: 160 x 76 x 32 mm
- Weight: 150 g

Measurement ranges
- DC voltage: 200mV, 2V, 20V, 200V, 1000V ±(1%+5)
- AC voltage: 200 V, 750 V ± (2% + 10)
- DC current: 200 µA, 2 mA, 20 mA, 200 mA, 10 A ± (2% + 10)
- Resistance: 200 Ohm, 2 KOhm, 20 KOhm, 200 Ohm, 2 MOhm ± (1% + 4)
- Battery test: 1.5 V, 9 V
- Diode test
- hFE transistor test
- Continuity check

Package contents: meter, measuring cables, handheld.
