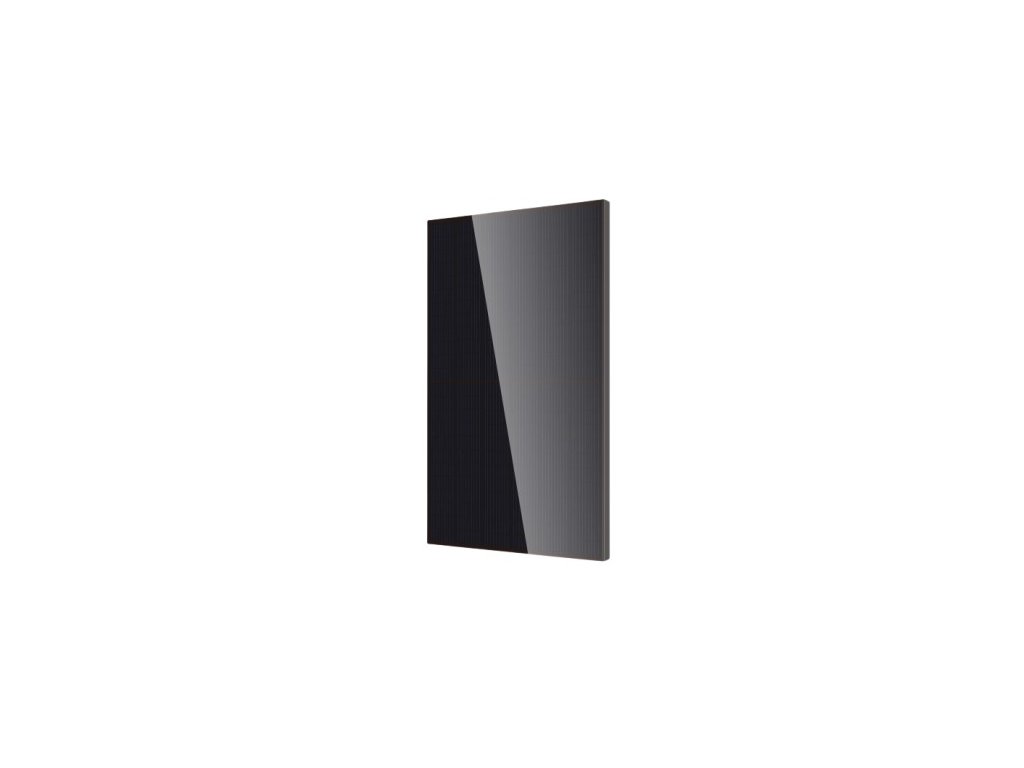

Solar panel 435W HT54-18X(N) black frame 1722x1134x30 HT-SAAE

Product detailed description

Delivery time from order creation is approximately 4-5 working days. These are oversized goods for which special shipping must be ordered.

The HT-SAAE HT54-18X(N) 435 W photovoltaic panel is a high-efficiency monocrystalline module with advanced half-cut technology that reduces losses and increases overall performance. With efficiencies up to 22.5%, a positive power tolerance of 0 to +3%, and support for a system voltage of 1500 VDC, it is ideal for residential and commercial installations. The panel offers high mechanical resistance (5400 Pa snow load, 2400 Pa wind load), PID resistance and long life backed by a 15-year product warranty


Specifications:

- Rated power: 435 W
- type: monocrystalline
- number of cells: 108 (6 x 18)
- module efficiency: 22.3%
- maximum current (Imp): 13.60 A
- maximum supply voltage (Vmp): 332 V
- voltage at no-load (Voc): 38.4 V
- short-circuit current (ISC): 14.31 A
- Maximum system voltage: 1500 V DC (IEC)
- Output tolerance: 0~+3%
- Connector type: compatible with MC4/MC4
- Front glass: tempered glass
- degree of protection: IP68
- Cell Type: IP68, IP68, IP68, IP68, IP68, IP68, IP68: Monocrystalline
- frame: anodised aluminium alloy
- frame colour: black
- Output Cables:MC4/MC4 Compatible
- Module dimensions: 1722 × 1134 × 30 mm
- weight: 21.0 kg

Packing - 1pc / 36pcs pallet
