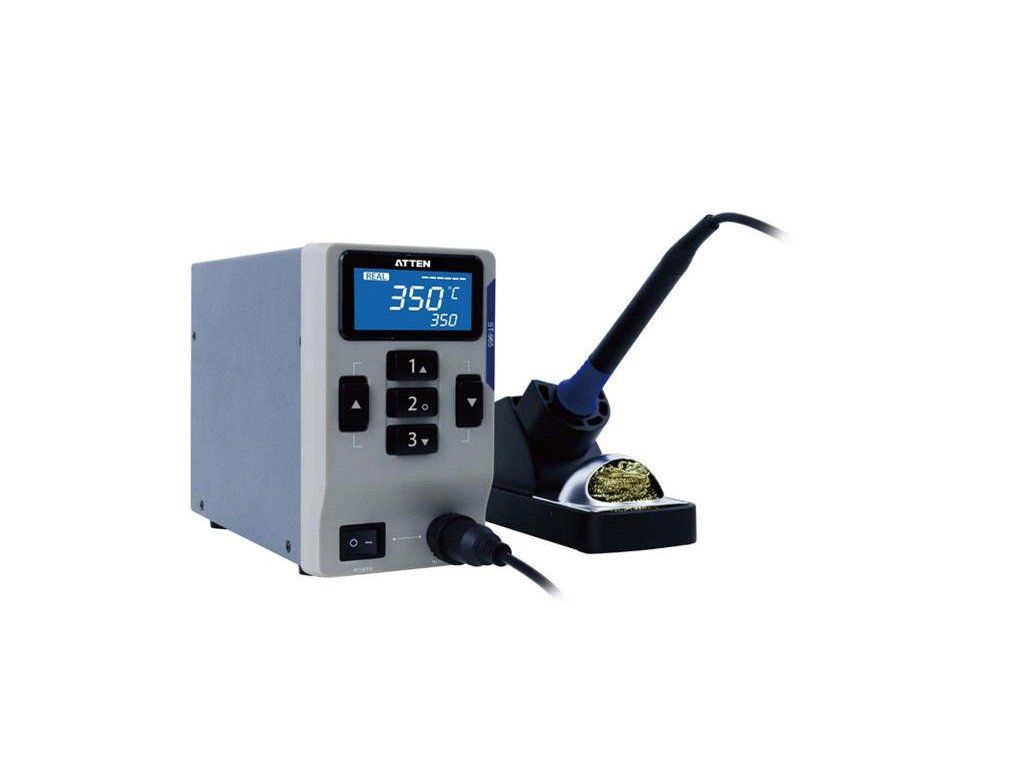

Soldering station ATTEN ST-965

Product detailed description

The ATTEN ST-965 soldering station is a digital power tool designed for precise and safe soldering in the workshop and for hobby use, as well as for service work, assembly and small electronics. The station is equipped with digital temperature control and a clear display that allows easy monitoring of set and actual temperature Thanks to its advanced features, LCD display and adjustable temperature, it offers comfort and efficiency for a wide range of electronic work. Temperature calibration controlled by a microcontroller (MCU). Buttons (1, 2, 3) for presetting or switching frequently used temperature.
The user can easily change the tips according to the type of solder joint to be soldered, increasing the versatility of the station. The ergonomic soldering handle minimizes fatigue during prolonged use. Interchangeable tips from the T900 series.
The soldering station is designed for soldering with adjustable tip temperature from 80 °C to 450 °C and is suitable for fine electronic work - soldering SMD and common pins, board repairs, servicing small devices, basting and prototyping in the home workshop, at school and for hobby electronic projects.
Long life ceramic heating element, microprocessor controlled temperature calibration.


Product parameters:

- digital temperature control with LCD display for clear display of current and set point
- Power input 65 W - ensures fast heating and stable operation
- adjustable temperature range: 80 to 450 °C
- temperature stability: ±1 °C
- Automatic standby and sleep function to protect the heater, save energy and extend tool life
- Temperature lock and password setting to prevent accidental changes to settings
- three preset quick temperature selections (buttons "1,2,3") for repetitive settings
- audible alarm function
- LCD/LED display with switching between °C and °F


Specifications:

- Power supply: 220 - 240 V AC / 50 Hz
- power consumption : 65 W
- temperature range : 80°C to 450°C
- handle model : SP-65
- T900 series interchangeable tips
- Station features: automatic energy saving system, parameter lock, password lock function, sleep mode, quick temperature change buttons
- Dimensions (L × W × H): 210 × 150 × 88 mm
- weight: 2.0 kg

Contents of the package:
- Soldering station
- tip T900
- soldering iron stand
- power cable
