UNI-T UT203R clamp-on multimeter

Product detailed description

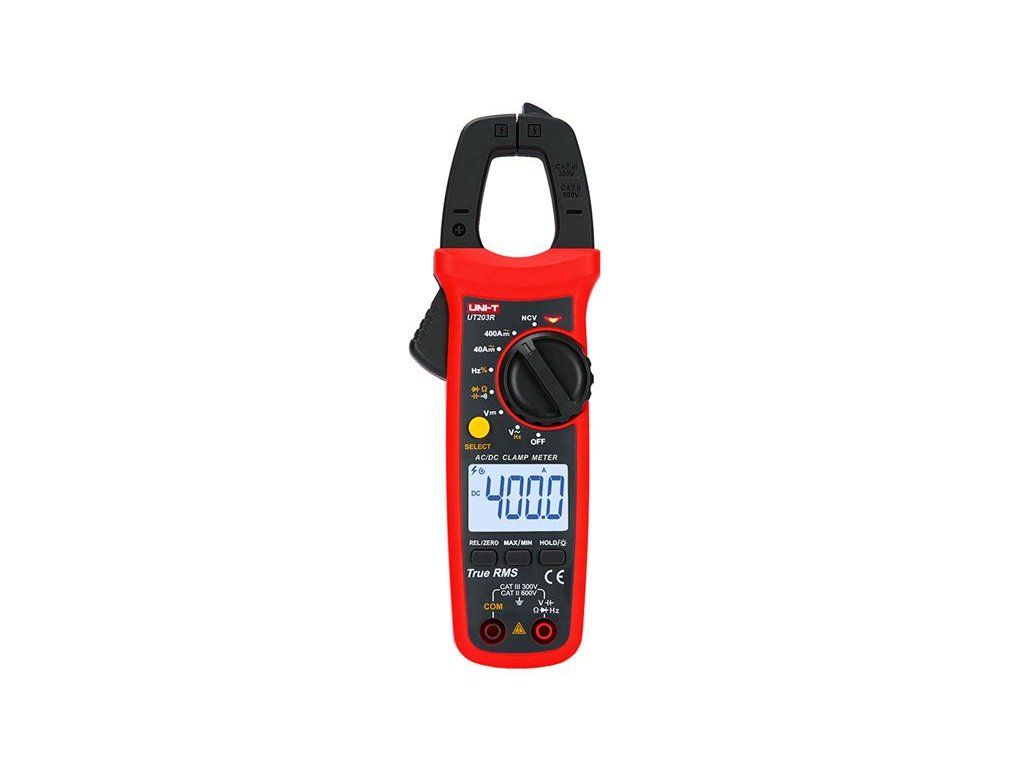

UNI-T UT203R clamp-on multimeter
We offer a 3-year warranty on this product. The UT203R digital clamp meter is used to measure AC and DC voltages up to 600V, AC and DC currents up to 400A and frequencies of 10Hz to 60kHz for LV voltages up to 600V and 10Hz to 10MHz for MV voltages. On all ranges, it has protection against voltages greater than 600V and audible and visual alarms. Four-way multi-segment display measuring 37 x 25mm with backlight and fast refresh rate (3 times/sec). Jaw opening allows measurement on cables up to 28mm diameter. Non-contact electric field sensing (NCV) allows detection of live conductors in two sensitivities -EFLo and - EFHi for LV 110V/50/60Hz and 230V/50/60Hz wiring. The included probe - probe tip cover on the test cables allows measurements on CAT III LV distribution lines without arc flash hazard. Without the spike covers, the test cables can only be measured on CAT II LV distribution lines. Power supply batteries 2pcs 1,5V R03. Power consumption of the meter is approx. 1.8 mA. The circuit has an automatic power saving function. Sleep mode consumption is <11μA, effectively extending battery life to approx. 400 hours.


Product parameters:

- measurement of voltage, current and frequency of high voltage up to 600 V
- frequency measurement 10Hz to 10MHz
- capacitance measurement 40nF to 40mF
- proportional (relative) measurement of voltages and capacitances
- multi-segment display and audible/visual alarm
- protection against voltages greater than 600V across ranges
- non-contact detection of live conductors
- automatic range switching
- accuracy of current and voltage measurements is guaranteed within 1% to 100% ranges


Technical parameters:

1. AC current measurement (ranges/resolution/accuracy):

40.00 / 0.010 / 50Hz ~ 100Hz ± (2.0% +5)
400.0 / 0.100 / 50Hz ~ 100Hz ± (2.0% +5)
- frequency monitoring accuracy for AC current measurement between 50 and 100Hz is ± (1.0% + 5) at 0.1Hz resolution
- overload protection at 620A


2. DC current measurement (ranges/resolution/accuracy ):

40,00 / 0,010 / ± (2,0% +5)
400,0 / 0,100 / ± (2,0% +5)
- overload protection at 620A


3. AC voltage measurement (range/resolution/accuracy):

4.000V / 0.001V / 10Hz ~ 10kHz ± (1.0% +5)
40.00V / 0.010V / 10Hz ~ 10kHz ± (0.8% +5)
400.0V / 0.100V / 10Hz ~ 10kHz ± (0.8% +5)
600.0V / 1V / 10Hz ~ 10kHz ± (0.8% +5)
- frequency monitoring accuracy when measuring AC voltage between 10Hz and 60kHz ± (0.5%+2) at 0.01Hz to 0.01kHz resolution
- overload protection at 600Vrms
- input impedance approx. 10MGΩ


4. DC voltage measurement (range/resolution/accuracy):

400.0mV / 0.100mV / ± (0.7% +3)
4.000V / 0.001V / ± (0.5% +2)
40.00V / 0.010V / ± (0.5% +2)
400.0V / 0.100V / ± (0.5% +2)
600.0V / 1V / ± (0.5% +2)
- input impedance approx. 10MΩ
- overload protection at 600Vrms


5. Resistance measurement (ranges/resolution/accuracy):

400.0Ω / 0.1Ω / ± (1.0% +2)
4,000kΩ / 0.001kΩ / ± (0.8% +2)
40.00kΩ / 0.01kΩ / ± (0.8% +2)
400.0kΩ / 0.1kΩ / ± (0.8% +2)
4.000MΩ / 0.001MΩ / ± (2.5% +5)
40.00MΩ / 0.01MΩ / ± (2.5% +5)
- overload protection at 600 Vrms
- open circuit voltage approx. 1V


6. Capacitance measurement (ranges/resolution/accuracy):

40.00nF / 0.01nF / ± (4.0% +5)
400.0nF / 0.1nF / ± (4.0% +5)
4,000μF / 0.001μF / ± (4.0% +5)
40.00μF / 0.01μF / ± (4.0% +5)
400.0μF / 0.1μF / ± (4.0% +5)
4,000mF / 0.001mF / ±10.0%
40.00mF / 0.01mF / ±10.0%
- overload protection at 600 Vrms


8. Frequency and fill measurement (ranges/resolution/accuracy):

frequency: 10Hz to 10MHz / 0.01Hz to 0.01MHz / ±(0.1% +4)
filling: 0.1 to 99.9% / 0.1% / ±(3.0% +5)

- Note 1) Measurement sensitivity:
≤100kHz: 200mVrms ≤ input amplitude ≤ 30V RMS
>100kHz~1MHz: 600mV RMS ≤ input amplitude ≤ 30V RMS
>1MHz~10MHz: 1V RMS ≤ input amplitude ≤ 30V RMS

- Note 2) Filling (working ratio) measurement is only applicable for square wave ≤10kHz, amplitude: 1V p-p
Frequency ≤ 1kHz Working ratio (Filling) : 10.0% ~ 95.0%
Frequency>1kHz Working ratio (Filling) : 30.0%~70.0%
- overload protection at 600 Vrms


9. Circuit continuity check:

- when the measured resistance is less than 10Ω, the continuous circuit signal will sound a buzzer
- when the measured resistance is greater than 31Ω, the open circuit indication does not sound the buzzer
- uncertainty ranging from 10Ω to 31Ω
- open circuit voltage about 2.0V
- measurement from 600Ω range
- overload protection at 600 Vrms


10. Measuring diodes:

- in the pass direction, the voltage drop across the semiconductor junction is less than or equal to 2V
- for silicon transition is typical voltage drop of 0.5 to 0.8V
- open circuit voltage about 4.0V
- measurement from 6,000V range


11. Non-contact electric field sensing (NCV):

- allows to detect live conductors in two sensitivities - EFLo and - EFHi for LV 110V/50/60Hz and 230V/50/60Hz


Other parameters:

- measurement of maximum and minimum values: yes
- measurement in relative (ratio) mode for voltage and capacitance measurement: yes
- data hold (HOLD): yes
- low battery indication: yes
- automatic power off: yes
- 1.5 V battery power supply (R03): 2pcs
- backlight display size: 37 mm x 25 mm
- product dimensions: 215 mm x 63 mm x 36 mm
- net product weight: 235 g
- product colour: red and grey


Contents of the package:

- clamp multimeter UT203R: 1pc
- test cables: 1 pair
- batteries 1.5 V (R03): 2pcs
- instructions for use: 1pc


Wholesale packaging:

- standard quantity per carton: 40pcs
- standard carton dimensions: 485 mm x 295 mm x 385 mm
- standard gross carton weight: 16.1 kg


MANUFACTURER: UNI-TREND
https://www.uni-trend.com/
