UNI-T UT582+ current protector tester

Product detailed description

We offer a 3-year warranty on this product.

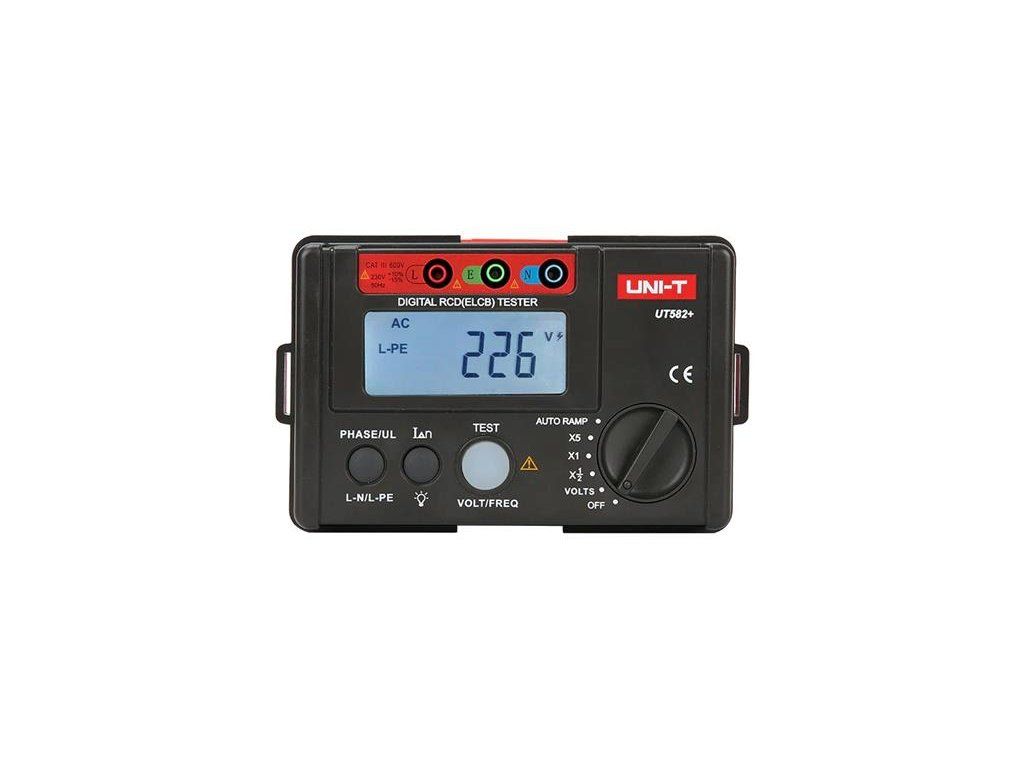

Digital RCD (ELCB) current protector tester UNI-T UT582+, a professional tool for wiring safety.
The UNI-T UT582+ tester is the ideal tool for inspecting and testing residual current devices (RCDs) in electrical distribution systems. It enables accurate measurement of the response time and reliability of RCDs, helping to ensure the safety of installations in homes, industrial buildings and commercial premises. It is mainly used to detect whether a current protector in a circuit can be started normally. It is only suitable for single-phase circuits with a supply voltage range of 195V~253V. Its voltage measurement range is 30 V ~ 600 V, 45 Hz ~ 65 Hz.

Easy operation and practical functions:
The UNI-T UT582+ tester is equipped with useful features that make work easier and measurements more accurate. The phase reversal function allows testing in different wiring conditions, the hold value function stores the last measured value for better analysis, and the overload indicator ensures measurement accuracy. Automatic shutdown after inactivity helps conserve battery power, and the backlit LCD display allows operation even in poorly lit environments.


Product parameters:

- universal use: supports both voltage measurement and RCD testing over a wide range of rated currents from 10 mA to 500 mA.
- compact design, light weight and supplied accessories ensure comfortable work in the field.
- easy to use: intuitive interface, backlit display and phase reversal functions make measurement easy.
- automatic shutdown - saves battery
- measurement of the reaction time of the protector - tests x1/2, x1 , x5
- lCD backlight: improves visibility in different lighting conditions
- data storage
- overrange display: OL
- buzzer on malfunction, buzzer off
- rCD testing: 10/20/30/100/300/500 mA
- durable design: suitable for electricians and wiring experts


Technical parameters:

RCD testing - supports 10/20/30/100/300/500 mA values
- range adjustment/rated operating current
1/2x - 10/20/30/100/300/500 mA (2000ms)
1x - 10/20/30/100/300 mA (1000ms)
- 500 mA (300ms)
5x - 10/20/30 mA (40ms)
auto ramp-up: 10/20/30/30/100/300 mA (300ms)
operating voltage (frequency): 195~253 V

Voltage measurement:
- voltage range: 30~600 V AC
- frequency: 45 Hz ~ 65 Hz (1V)
- accuracy: ±(3% + 3)

Features:
- number of views: 999
- low battery indication: <7.2 V
- automatic shutdown
- lCD display backlight
- data storage
- phase selection function
- over-range indicator
- measurement of: equipment time of current protectors, frequency, AC voltage, equipment current of current protectors
- power supply: 6× 1.5 V AA batteries
- weight: 400 g
- dimensions: 160 × 70.5 × 100 mm

Standard equipment:
- measuring cords
- carrying strap
- case
