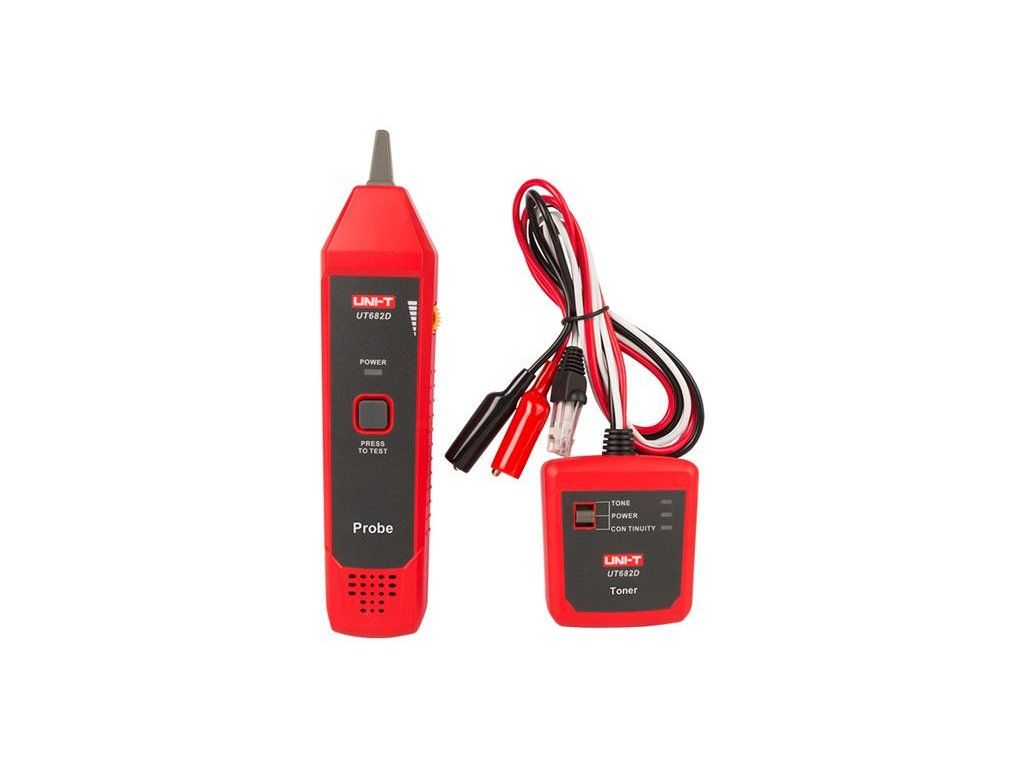

UNI-T UT682D Cable Tester

Product detailed description

UNI-T UT682D Cable Tester
We offer a 3-year warranty on this product.

The UT682D cable tester offers an easy way to quickly find identifier cables, wires and harnesses. Log in All Rights Reserved | The instrument can also be used to test wiring polarity continuity on telephone lines.
The device complies with CE standard: EN61326-1:2013, EN61326-2-2:2013


Product parameter:

- cable search
- cable harness search
- checking the status of the wiring
- line continuity test


Technical parameters:

Detector:
Power: 10mW (at 600Ω)
Output frequency: alternating 1.25/1.4kHz; variable 6Hz
Power supply in line continuity test mode: 8V DC
Surge protection: 60V DC
Power: 9V DC battery
Low battery warning: approx. 7V
Working temperature: 0°C - 40°C
Dimensions: 74 x 68 x 28 mm
Weight: 150 g


Probe:
Input impedance:> 100MΩ
Power: 9V DC battery
Low battery warning: approx. 7V
Working temperature: 0°C - 40°C
Dimensions: 208 x 47 x 33 mm
Weight: 130 g


Package contents:
1) Detector
2) Probe
3) 9V batteries ... 2 pcs
4) Instructions
