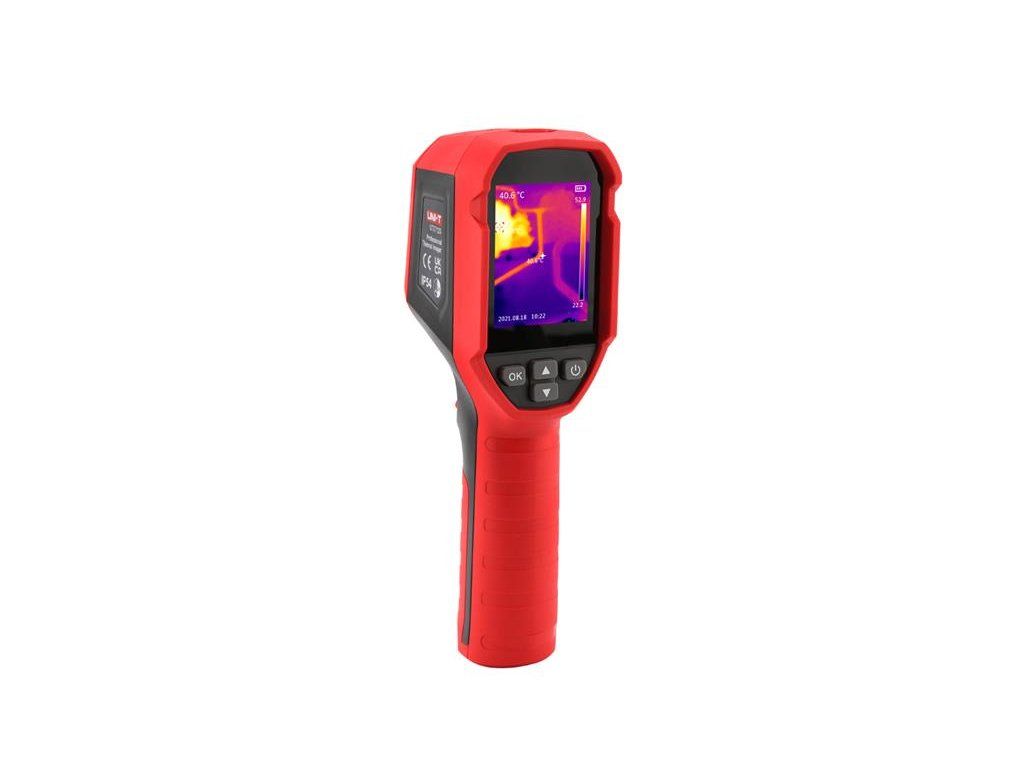

UNI-T UTi712S thermal imager

Product detailed description

We offer a 3-year warranty on this product.

The UNI-T UTi712S thermal imager is a cost-effective thermal imager with a quality design operating in the infrared region, designed to measure the surface temperature of objects in the range from -20°C to +400°C. Some special features include: temperature compensation (allows more accurate measurement in different temperature environments), laser pointer, longer battery life (more than 8 hours). This durable thermal imager is IP54 rated and can withstand a drop from 2 meters. The UTi712S thermal imager finds wide application in the construction industry when looking for heat leaks from masonry, roofs or pipes, in the energy industry when identifying faults in electrical installations. lines, in cold stores, in service stations when searching for overloaded equipment and in scientific research.


Product parameters:

- display: 2.4" LCD with 320 x 240px resolution
- temperature measurement range: -20 °C to 400 °C (4 °F to 752 °F)
- IR resolution: 120×90
- automatic alarm for high/low temperature
- automatic hot/cold spot tracking
- color palettes: 6 (White Hot, Black Hot, Ironbow, Rainbow HC, Rainbow, Lava)
- alarm
- laser pointer
- LED luminaire
- rechargeable Li-ion battery
- 1/4" mounting hole for tripod
- 2m drop resistant
- automatic shut-off: 5 min, 10 min, 30 min


Technical parameters:

- display: 2.4" LCD with 320 x 240px resolution
- field of view (FOV): 50° x 38°
- IR resolution: 120×90
- thermal sensitivity (NETD): < 60mK
- instantaneous field of view (IFOV): 7.3 mrad
- frame rate: ≤25 Hz
- spectral range: 8~14µm
- temperature measurement range: -20 °C to 400 °C (4 °F to 752 °F)
- accuracy: ± 2°C / ± 2%, whichever is greater
- focus mode: fixed focus
- adjustable emissivity: 0.01 to 1.0 (default 0.95)
- color palette: 6 ((White hot, Black hot, Ironbow, Rainbow HC, Rainbow, Lava))
- high and low temperature alarm: yes (LED alarm and LCD animation alarm)
- the image storage format: BMP
- interface: microSD card with max. capacity 16GB
- software analysis on PC
- Laser pointer
- LED luminaire
- menu language: english, french, german, spanish, russian
- power: Li-ion battery (3.7V, 2600 mAh)
- run time per charge: ≥8 hours
- USB: Type-C
- protection class: IP54
- 1/4" mounting thread for tripod
- weight: 310g
- product dimensions: 197 mm × 72 mm × 60 mm

contents of the package:
- uTi712S thermal imager
- Li-ion battery 3.7 V / 2600 mAh
- USB Type-C cable
- micro SD card
