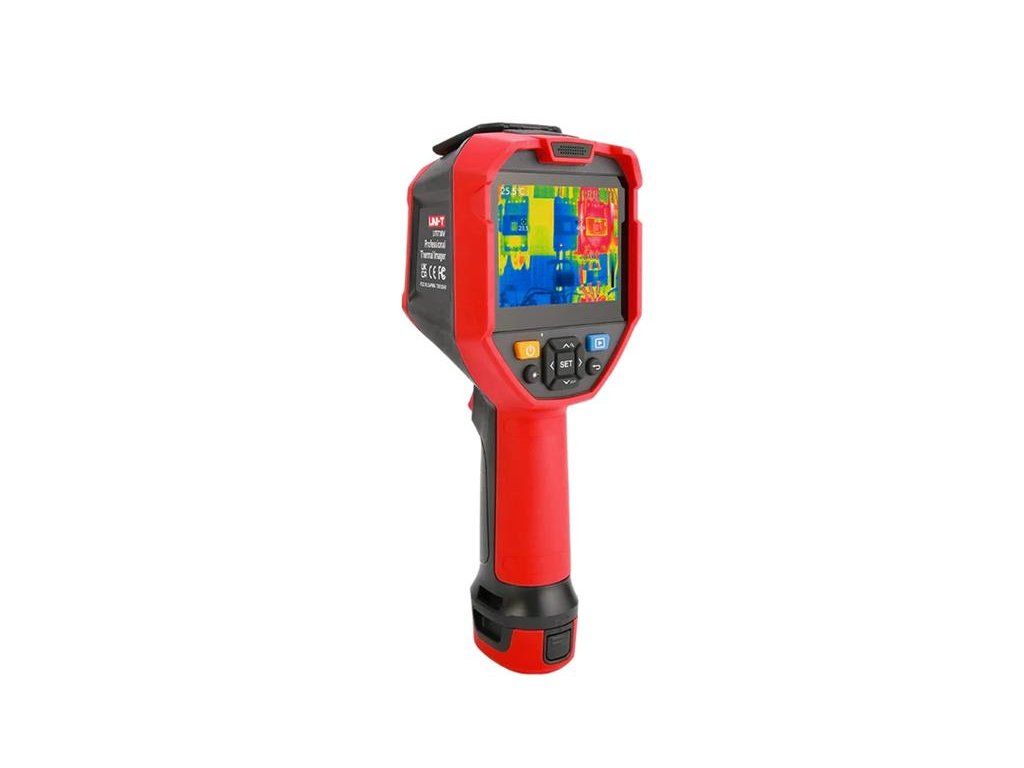

UNI-T UTi730V thermal imager

Product detailed description

We offer a 3-year warranty on this product.

The UTi730V thermal imager is a high-end infrared camera designed for measuring the surface temperature of objects from -40°C to +400°C. It is equipped with a 5MP digital camera and a 3.5″ touchscreen display to improve work efficiency and image quality. The built-in laser measurement function allows you to measure targets at a safe distance. Features include video and voice recording and live streaming via Wi-Fi, making it even more convenient. This is a reliable tool widely used in industrial areas.
It can be equipped with the UT-Z003 macro lens (optional), recommended distance is 4 cm.


Product parameters:

- 3.5″ IPS touchscreen (640×480 pixels)
- IR resolution: 320 × 240
- surface temperature measurement from -40°C to +400°C
- automatic alarm for HI/LO temperature
- automatic HI/LO point tracking
- object temperature analysis: 5 points , 1 line , 3 circles
- 5 MP digital camera
- free focus lens, digital zoom 2x, 4x
- image modes: 4 (thermal, visual image, fusion (T-Mix), PIP)
- QR code - photo management
- video and voice recording
- laser pointer and laser measurement with a range of up to 30m
- LED luminaire
- Wi-Fi connectivity via mobile app - support for live streaming over Wi-Fi
- PC software: real-time image analysis and design
- removable Li-ion battery 5200mAh (UT-M17)
- protection class: IP54
- drop resistance from 2 m


Technical parameters:

- 3.5″ IPS touchscreen (640×480 pixels)
- IR resolution: 320 × 240 pixels
- measurement in the infrared spectral band: 8μm to 14μm
- thermal imaging sensor pixel size: 12μm
- frame rate: ≤9Hz
- thermal sensitivity (NETD): < 65 mK
- focus mode: Focus Free
- field of view (FOV): 56° (E) × 42.2° (E)
- temperature measurement range: -40°C to +400°C

- color palette for thermal image transposition: (White Hot, Black Hot, Red Hot, Ironbow, Rainbow HC, Rainbow, Lava)
- image modes: thermal, visual, Fusion (T-Mix), PIP
- object temperature analysis: 5 points , 1 line , 3 rectangles , 3 circles
- LCD high/low temperature alarm animation, LED flashlight, audible signal
- 5 MP digital camera
- digital zoom: 2x, 4x
- video recording, voice recording
- Wi-Fi connectivity via mobile app - support for live streaming over Wi-Fi
- LED luminaire
- laser pointer and laser measurement with a range of up to 30m
- PC software: PC + APP

- power supply: 5200 mAh Li-ion battery (UT-M17)
- operating time ≥4 hours (with Wi-Fi off)
- USB type - C
- storage: micro SD card up to 32 GB
- image/video storage format: JPG / AVI
- iP54 protection
- resistance to falling from a height of 2 m
- certification: : CE, UKCA, FCC, RoHS
- weight: 654 g
- product dimensions: 260 x 97 x 99 mm

Contents of the package:
- uTi720V thermal imager
- Micro SD card
- uSB Type-C cable,
- operating instructions

Manufacturer : UNI-TREND
