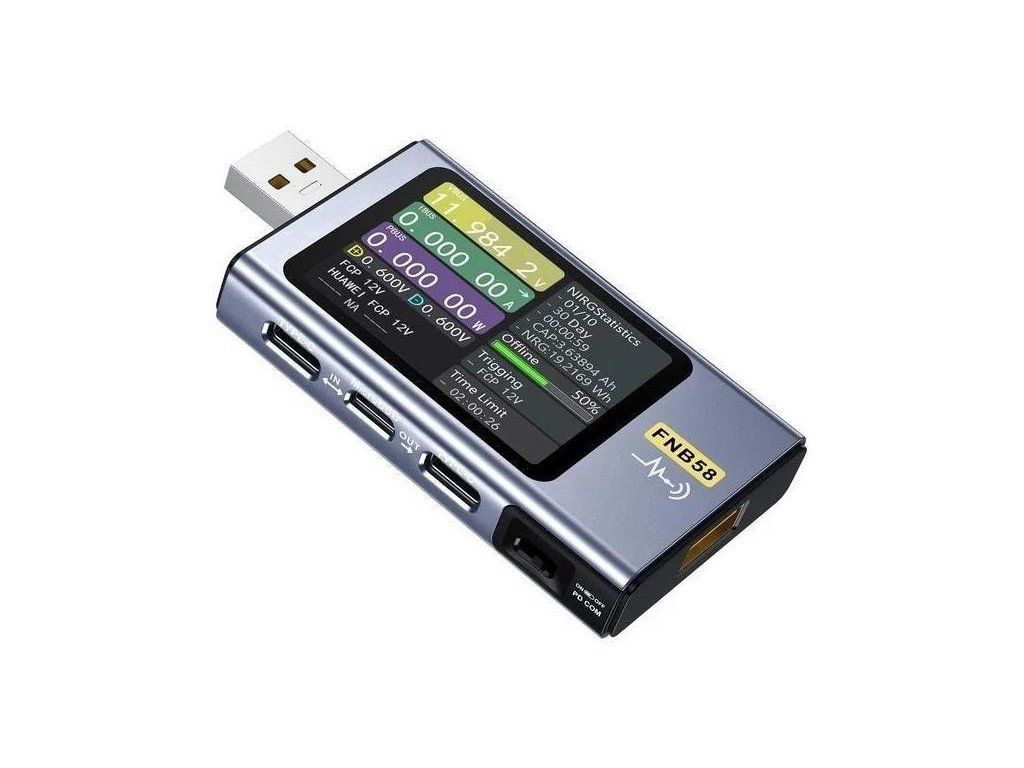

USB tester FNIRSI FNB58

Product detailed description

The FNIRSI FNB58 USB tester is a multifunctional tool for testing and monitoring USB power ports. With this tester it is easy to find out the voltage, current and power to which the USB port being measured supplies energy. It is ideal for diagnosing and repairing USB ports on a variety of devices such as laptops, tablets, mobile phones and more. The tester features a 1.77" TFT graphic display with high resolution. The display is easy to find out the numerical charging values, the display can be easily switched for graphical representation of charging status changes, where the display is similar to an oscilloscope. For ease of use and reading the display is additionally equipped with 360° rotation.
The tester is a universal device and is equipped with standard ports that include USB-A, microUSB and USB-C.
Its versatility also coats the detection of various fast charging protocols such as QC2.0/QC3.0, Huawei FCP/SCP, Samsung AFC, PD2.0/3.0, VOOC/WARP, and Super VOOC 1.0/2.0... It uses a dedicated 16-bit ADC and chip to measure with.


Product parameters:

- compact dimensions
- large and clear display
- display rotation
- possibility of displaying numerical values and graphical display of the progress
- uSB-A, microUSB, USB-C ports
- fast charging support


Technical parameters:

- voltage measurement range: 4-28V
- current measurement range: 0-7A
- power measurement range: 0-120W
- uSB cable resistance measurement range: 0-9999.9ohm
- internal resistance measurement range: 0-9999.9ohm
- battery capacity measurement range: 0-9999.99Ah
- energy consumption measurement range: 0-9999.99Wh
- voltage measurement resolution: 0.00001V
- voltage measurement accuracy: ±(0.2‰+2)
- current measurement resolution: 0.00001A
- current measurement accuracy: ±(0.5‰+2)
- power measurement resolution: 0.00001W
- accuracy of power measurement: ±(0.5‰+2)
- display type: 2" TFT LCD
- measuring time: 99days 23h 59 min 59s
- measurement record: 99days 23h 59 min 59s
- dimensions: 82 × 42 × 13 mm
- weight: 45 g
