Liquid thermostatic heads

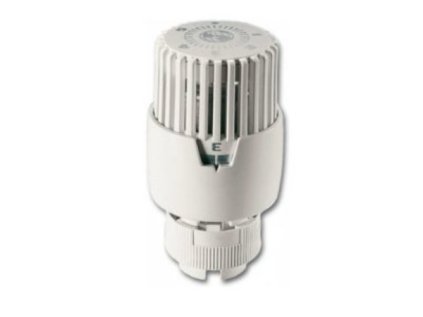

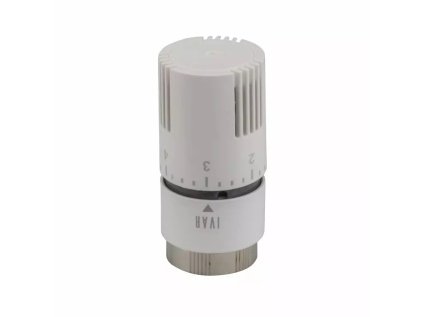

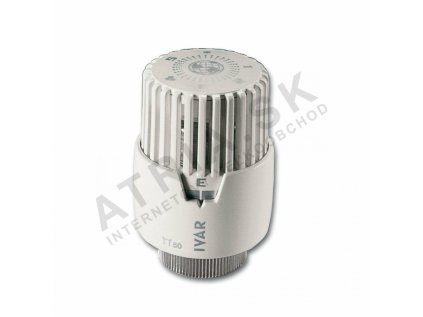

Liquid thermostatic heads in this category are designed for use with IVAR thermostatic valves and compact valve-type radiators. These heads regulate room temperature by adjusting the flow of heating fluid based on ambient conditions. They are suitable for a wide range of heating systems, including those using IVAR.VD, VS, VCD, VCR, and M-valve types. The standard connection size is M30x1.5, ensuring compatibility with most European heating systems. Available in white, chrome, and chrome-matt finishes, these heads also feature a locking mechanism to maintain a set temperature.

How to choose

• Confirm the connection type is M30x1.5 to match your thermostatic valve or radiator.
• Select a model compatible with your specific valve type (e.g., IVAR.VD, VS, VCD, VCR, or M-valve).
• Choose a finish (white, chrome, or chrome-matt) that matches the aesthetic of your installation.
• Ensure the model supports the temperature regulation range of +6.5°C to +28°C, as required by the system.
• Verify if the model supports the locking function for fixed temperature settings.

Frequently asked questions

Can these heads be used with Danfoss Clip-Clap systems?
Yes, specific models such as IVAR.TD 3000 are compatible with the Danfoss Clip-Clap system.

What is the standard temperature range for these thermostatic heads?
The regulation range is from +6.5°C to +28°C across all models in this category.
