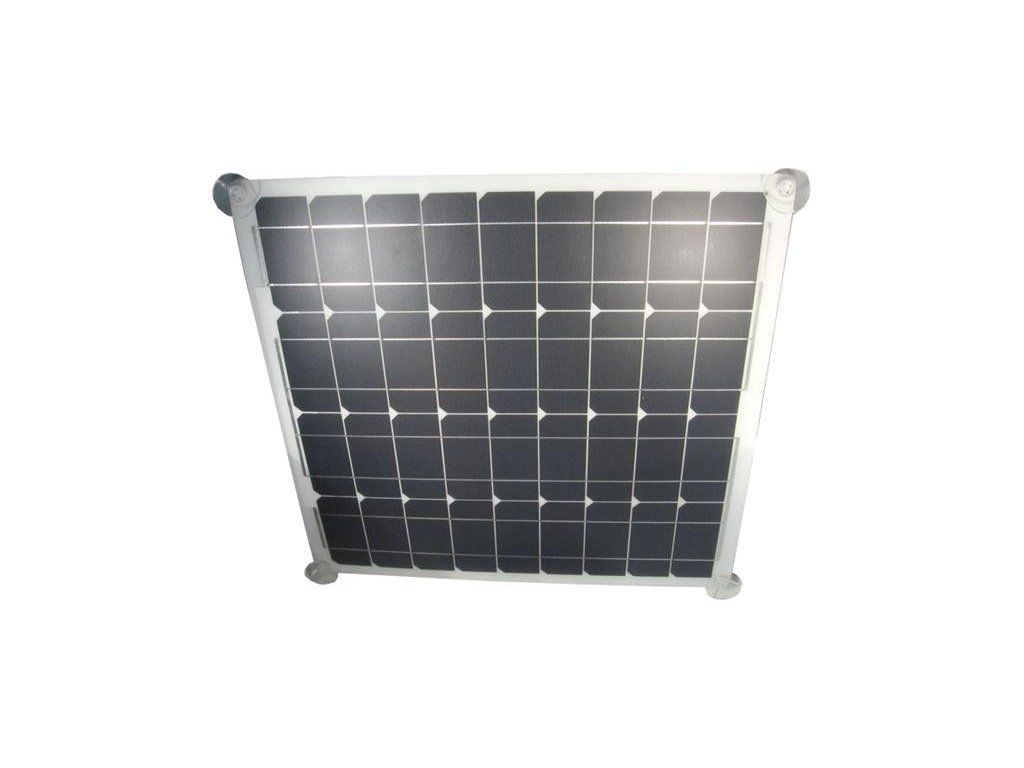

Solar panel USB+ 12V/50W flexible OS50-18MFX

Product detailed description

Flexible monocrystalline panel with 12V and USB output for charging batteries, phones, powerbanks, etc. The ideal solution for your car battery in the event of extended vehicle downtime, when permanently connected appliances such as the control unit, car radio or remote control can drain the starter battery in as little as a week. Plug the supplied cable into a 12V socket (permanent connection to the battery required, not an ignition switch), place the panel behind the window using suction cups and your battery will be supplied with the necessary energy to compensate for the consumption of the connected devices and self-discharge. The panel can also be used as a backup power supply for charging phones, powerbanks etc.

Technical parameters:

Max.power: 50W
Max. current at full power (Imp): 2.78 A
Max output voltage at full power (Vmp): 18 V
Output for 12V battery charging: voltage Vmp-max.18 V
USB output: max.5.1V / 2.1A
LED light: on at maximum illumination, flashing at low illumination
Dimensions: 540 × 560 × 2mm


Contents of the package:
1×Flexible panel
4 × removable suction cup
1 × 12V cable with auto connector
1 × 12V cable with terminals
1 × USB cable with 10 different terminals (USB mini, USB micro, iPhone, Nokia DC jack, etc.)

Warning:
PV panels equipped with step-down converter for USB output power supply, 12V output regulator does not have. However, with respect to the panel performance, you can connect a battery above 60Ah directly and permanently without risk of damaging it. For a 60Ah battery and only in case of long term illumination, use any PWM controller. For a few hours, it is possible to connect without a regulator batteries that can withstand a charging current of max. 2.78A.
