Outdoor antenna BLOW 0521

Product detailed description

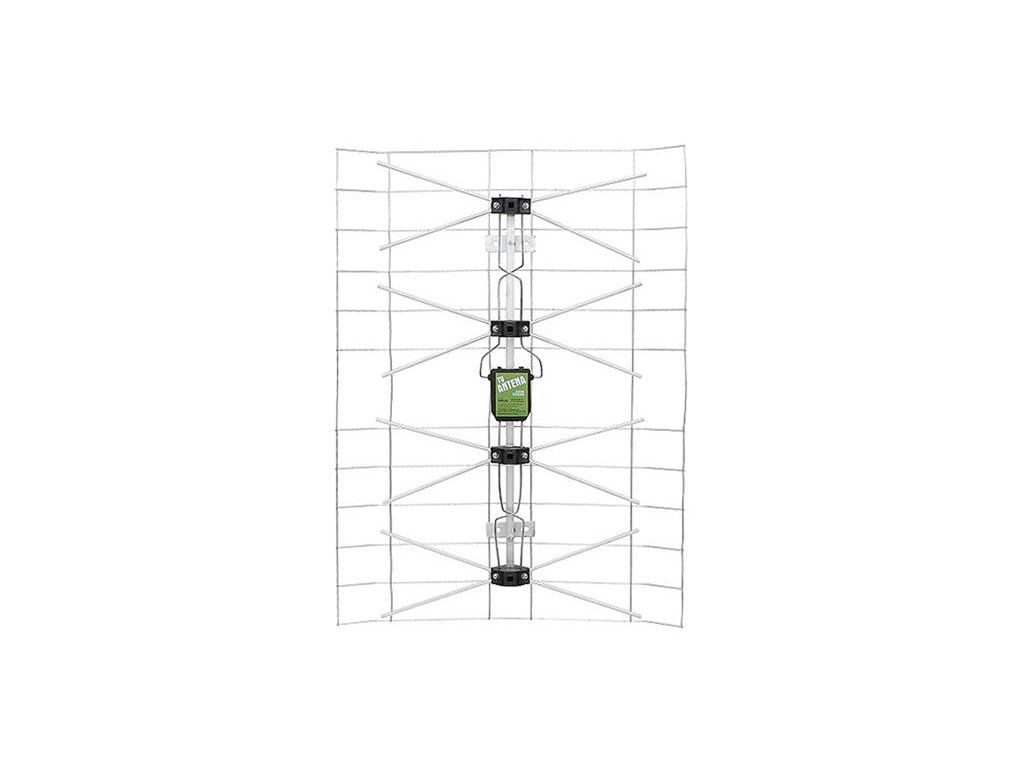

Outdoor antenna BLOW 0521
This antenna is suitable for receiving analogue terrestrial TV and DVB-T signal for watching digital TV. Thanks to its shape it has a very strong GSM signal suppression. The antenna is used in places where it is not possible to use passive antennas due to weak signal. Installation of the antenna is very simple and quick, just connect the coaxial cable and you are ready to use. The grid is made of steel wire.

Antenna:

- Reception channels: 6 - 12, 21 - 60
- Maximum gain: 40 dB
- Visibility angle: 46°
- Vertical viewing angle: 27°
- Output resistance: 75 Ohm
- Dimensions: 800 x 600 mm
- Weight: 1.4 kg

Power supply:

- Input voltage: 230V, 50Hz
- Output voltage: 12V stabilized
- Maximum current load: 100 mA

Amplifier:

- Type: GPS GREEN
- Reception channels: 1 - 68
- Maximum gain: 26-32 dB
- Noise level: 1.7 dB
- Input impedance :. 300 Ohm
- Output impedance: 75 Ohm
- Power supply: DC 10 - 15V
- Distance from transmitter: 60 - 120 km
