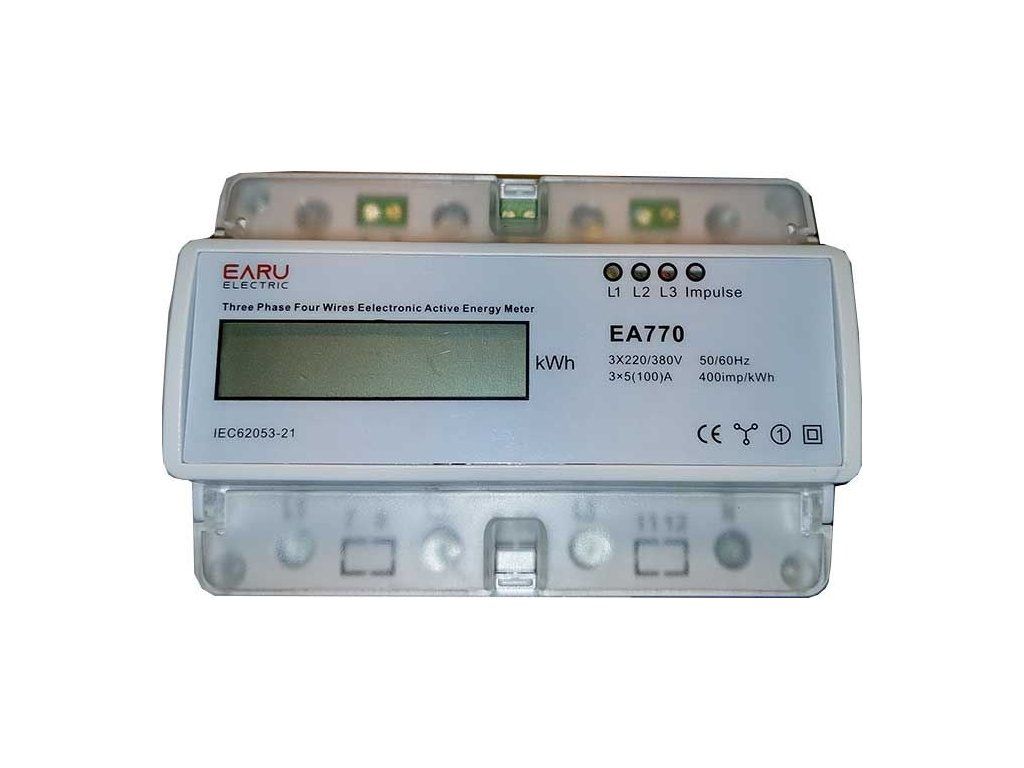

3F DIN rail meter EA770
Code: TI_07750290Product detailed description
Meter for continuous measurement of active power consumption from a three-phase source. It measures consumption and overdraw in equal proportions, registering the overdraw as consumption.
Technical parameters:
Voltage: 3x 230/400 V
Reference current: 3x5A
Maximum current Imax: 100A
Accuracy class: 1.0
Standard: IEC62052-11, IEC62053-21
Frequency: 50-60Hz
Pulse constant: 400imp/kWh
Display: backlit LCD6+2
Self-power consumption: 2W
Trigger current: 0.004 lb
Operating temperature: -30°C - 65°C
Width: 125mm
Current measurement range: 0.04-100A,
Power measurement range: 0-99999.9kWh
Pulse output
Additional parameters
| Category: | Electrometers for DIN rail |
|---|---|
