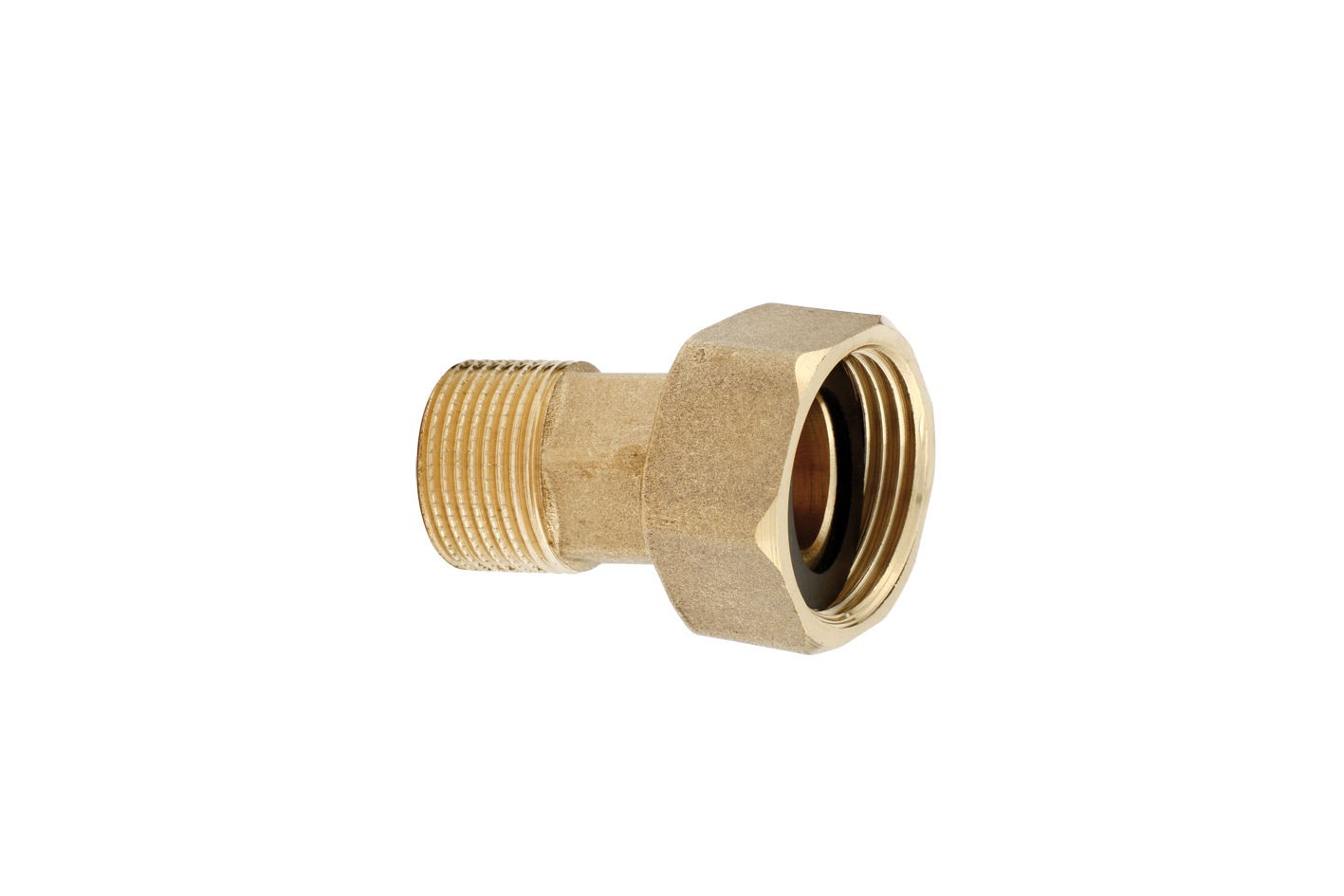

Brass water meter connector with gasket, 3/4"
Code: PW.20Product detailed description
Sized one step up from the 1/2'' version, this connector seats a DN20 water meter into the pipe run, with a G3/4 thread on one side and a G1 union nut on the other. The gasket is included in the box.
- Material: brass

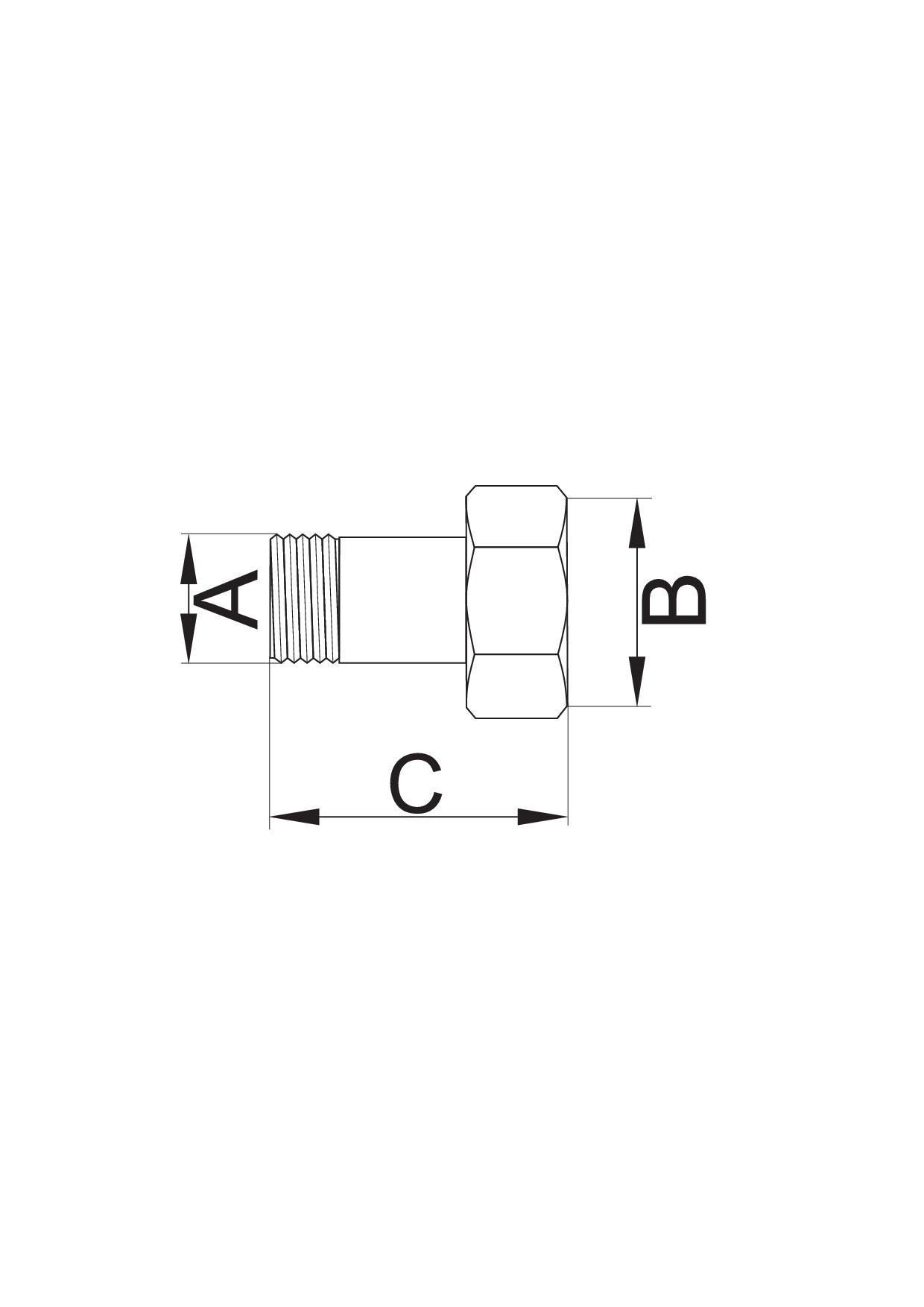

- Connections: G3/4'' x G1'' (DN20)
- Overall length: approx. 56 mm
- Nominal pressure: 10 bar
- Max. working temperature: 95°C
- Media: hot and cold water
- Gasket included
Declaration of conformity issued; 2-year warranty.
Additional parameters
| Category: | Accessories |
|---|---|
| Warranty: | 2 roky |
| EAN: | 5900308730577 |
| Typ dielu: | Prípojka (konektor) vodomeru |
| Materiál: | Mosadz |
| Pripojenie 1: | G3/4'' |
| Pripojenie 2: | G1'' |
| Menovitá svetlosť: | DN20 |
| Dĺžka: | cca 56 mm |
| Max. tlak: | 10 barov |
| Max. teplota média: | 95°C |
| Tesnenie v balení: | Áno |
| EAN: | 5900308730577 |
| Záruka: | 24 mesiacov |
