Ermetiq bypass for mixing group

Product detailed description

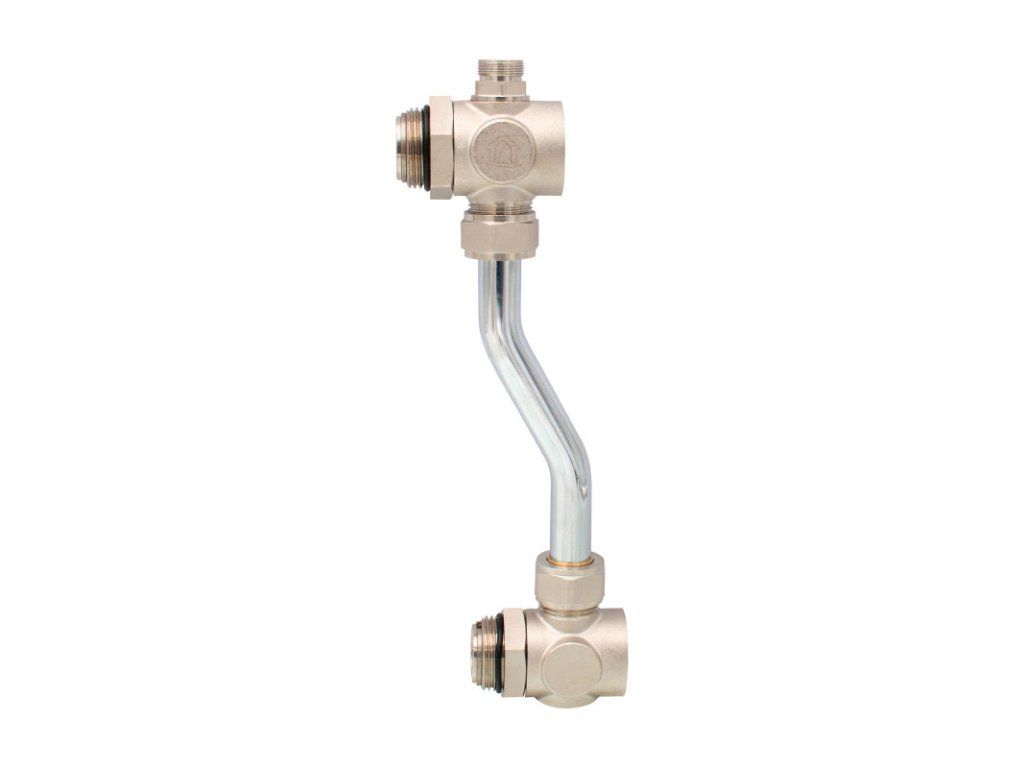

The ERMETIQ ER-MWS704 bypass is designed for underfloor heating mixing groups and serves to connect the supply and return pipes of the heating circuit. It ensures optimal circulation of heating water, stabilizes pressure conditions in the system and contributes to reliable operation of the mixing group. It is suitable as a complement to ERMETIQ mixing groups and other compatible underfloor heating systems.

The bypass is made of high-quality brass with high resistance to corrosion and high operating temperatures. Thanks to the standard 1" connection and M30 × 1.5 thread, it allows easy installation and seamless integration into the heating system. It helps ensure a smooth flow of heating water and increases the reliability of the entire heating system.

Features:

• Bypass for underfloor heating mixing groups.
• Ensures the connection of the supply and return pipes.
• Stabilizes the flow and pressure ratios in the heating system.
• Contributes to the reliable and efficient operation of the mixing group.
• Made of high-quality brass with high corrosion resistance.
• Easy installation and maintenance.
• Compatible with ERMETIQ mixing groups and other underfloor heating systems.

Technical parameters:

• Model: ER-MWS704
• Type: Bypass for mixing group
• Material: brass
• Connection: 1"
• Thread for drive / head: M30 × 1.5
• Application: underfloor heating systems
• Installation: in the underfloor heating mixing group
